General

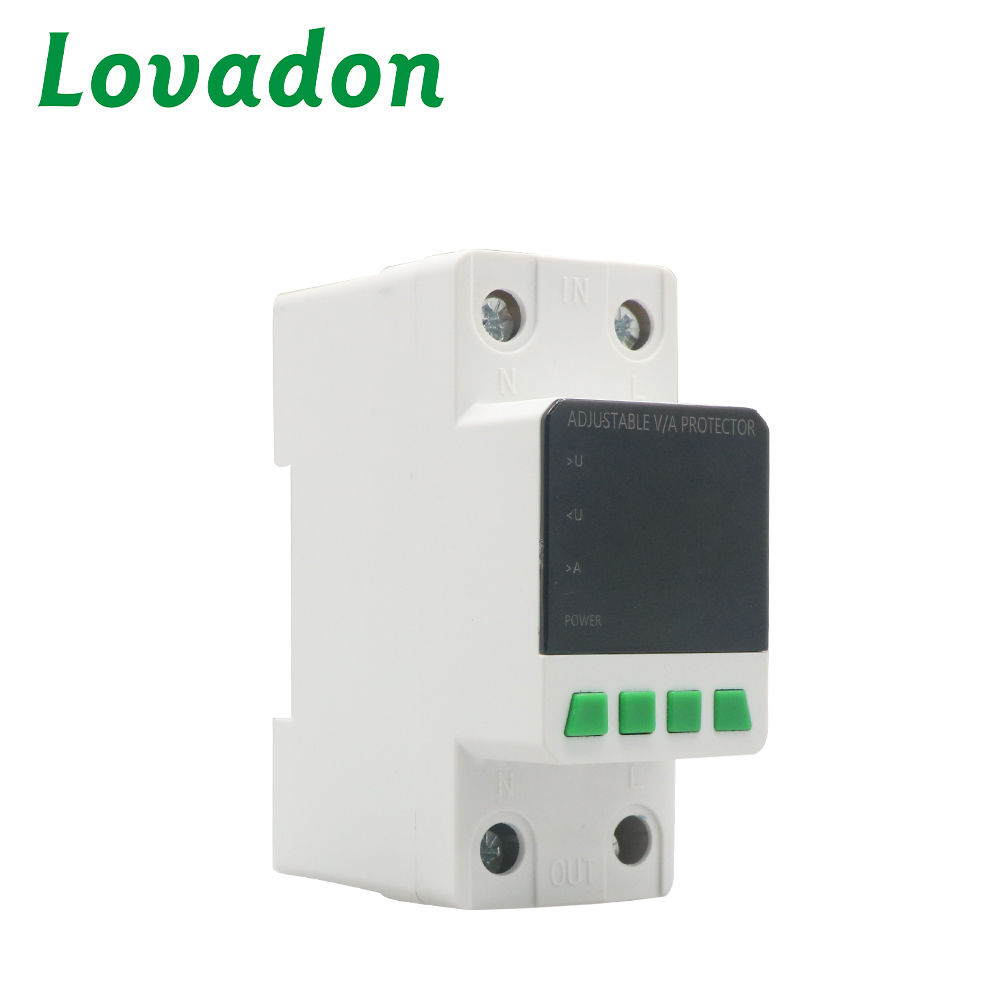

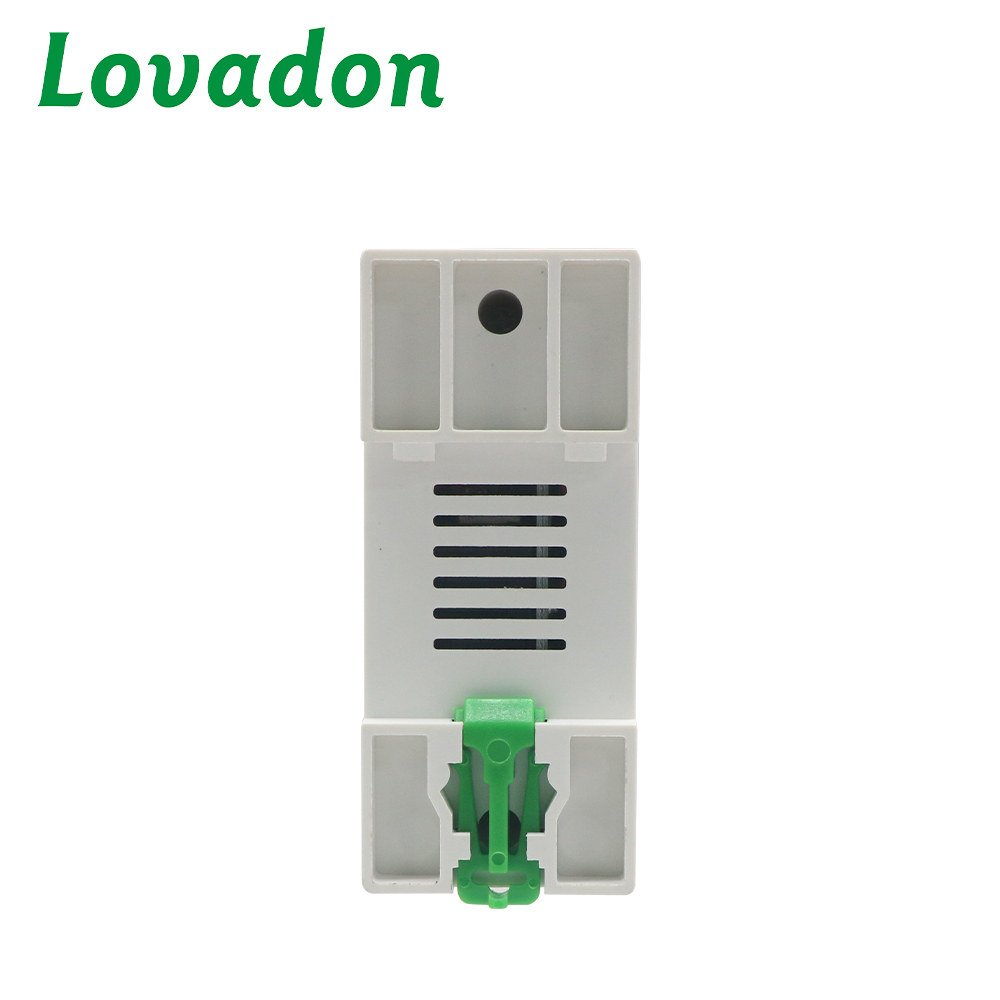

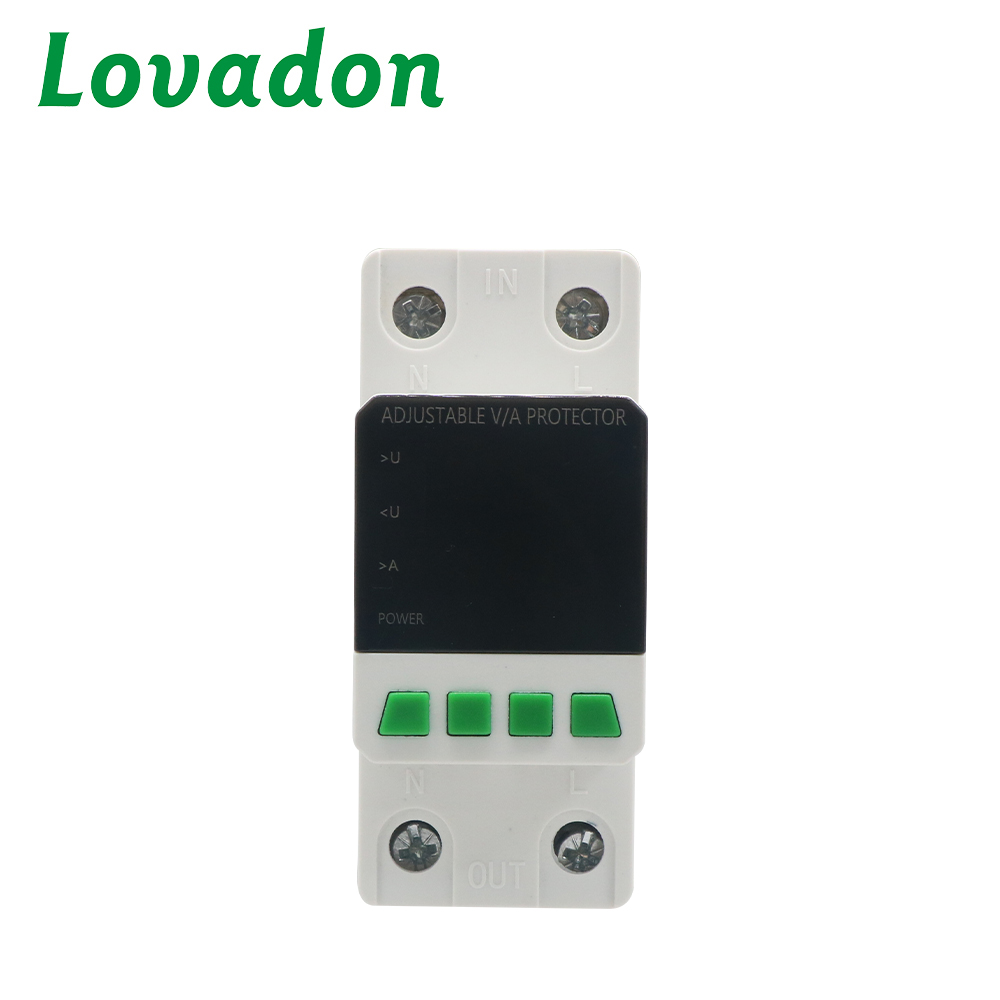

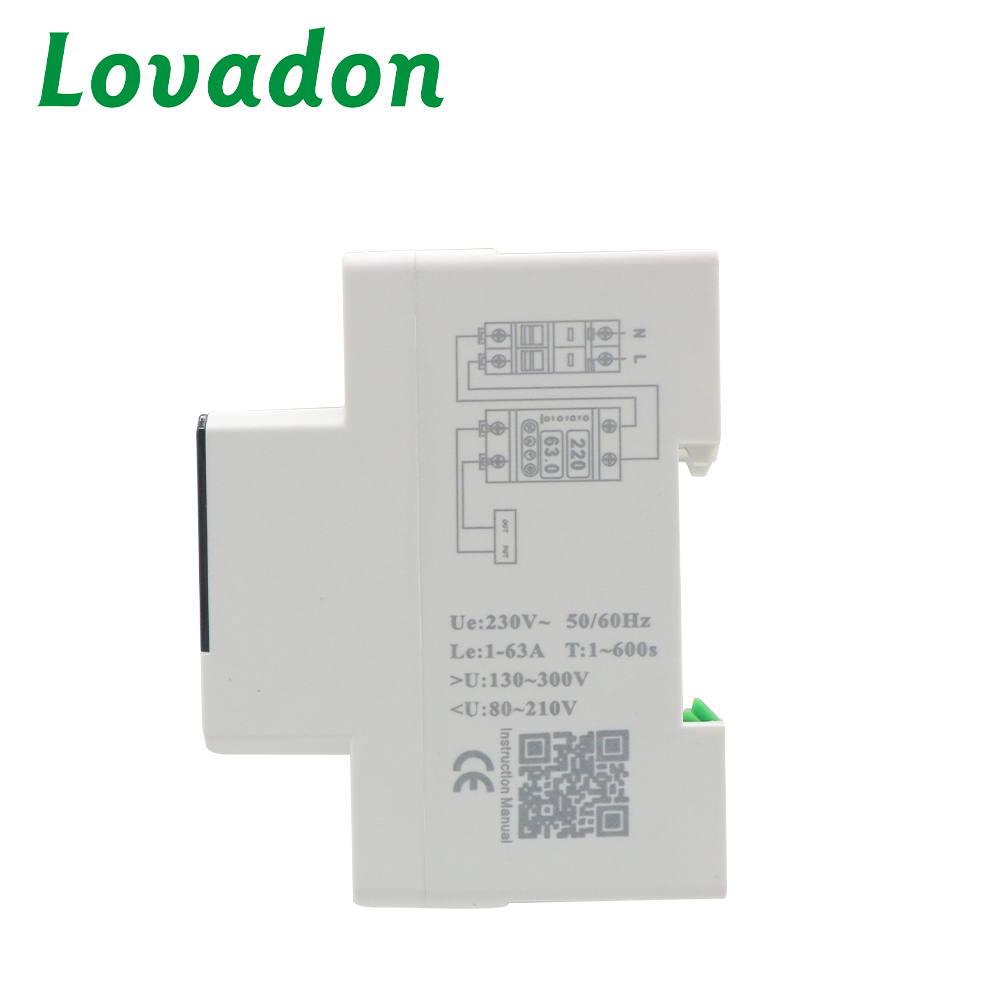

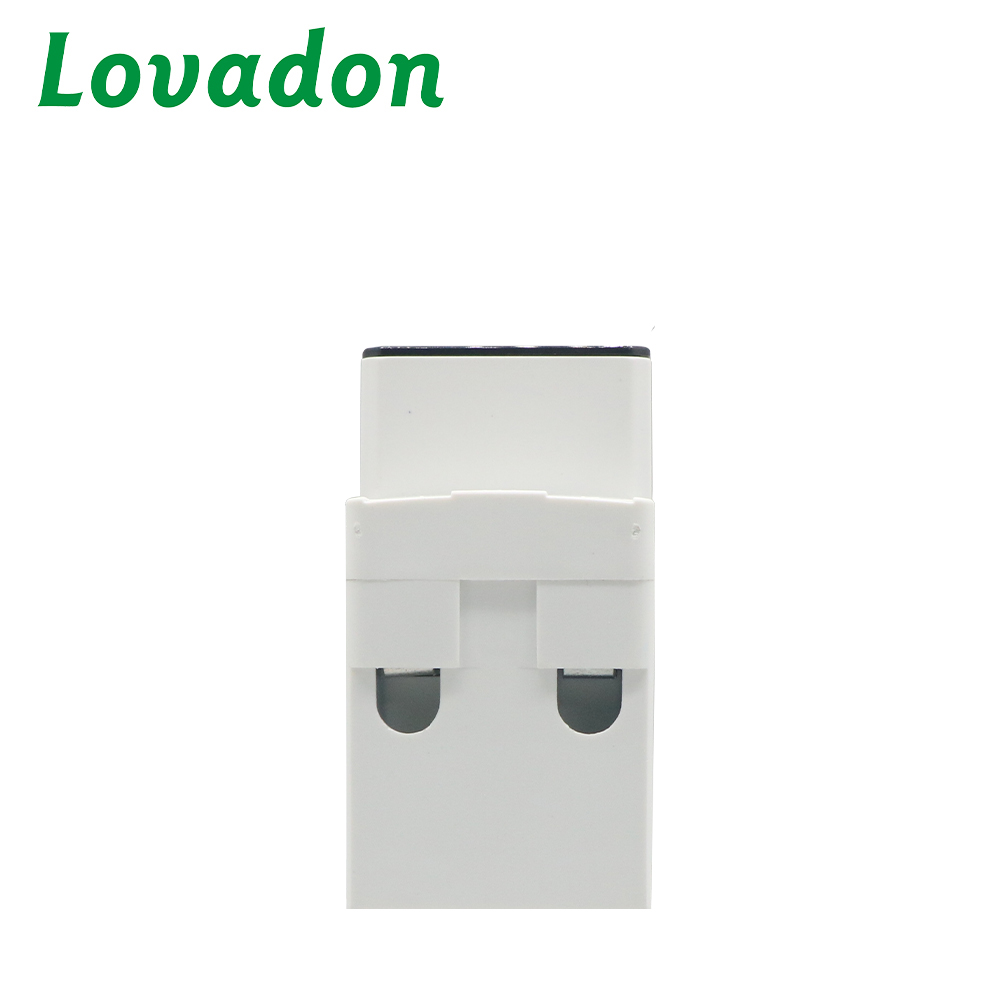

The AVP-63 is a voltage protector with rated voltage AC230V, frequency 50/60Hz, adjustable rated current 1A-16A (default 16A). It features a power recovery delay of 5s after power failure, an adjustable delay range of 1s-400s (default 30s), over-voltage protection at 130-300V (default 270V), and under-voltage protection at 80-210V (default 170V). Its compact size is 86*36*66mm.

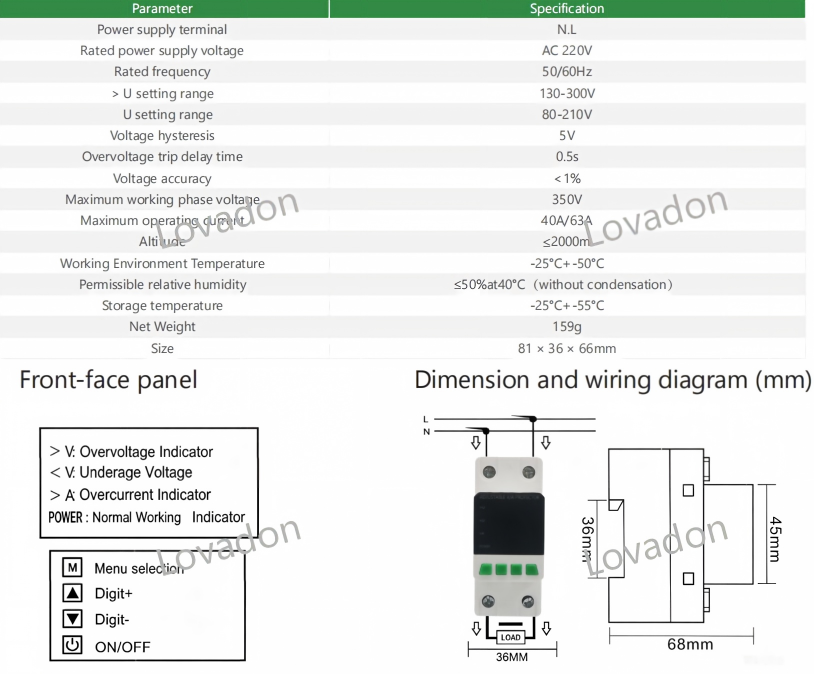

Technical Parameters
| Parameter | Specification |
| Power supply terminal | N.L |
| Rated power supply voltage | AC 220V |
| Rated frequency | 50/60HZ |
| > U setting range | 130-300V |
| U setting range | 80-210V |
| Voltage hysteresis | 5V |
| Overvoltage trip delay time | 0.5s |
| Voltage accuracy | <1% |
| Maximum working phase voltage | 350V |
| Maximum operating current | 40A/63A |
| Altitude | ≤2000m |
| Environmental temperature | -25°C+-50°C |
| Permissible relative humidity | ≤50%at40°C（without condensation） |
| Storage temperature | -25°C+-55°C |
| Net Weight | 159g |
| Size | 81*36*66mm |
