General
Lovadon circuit breakers are designed for robust protection in B2B environments. Key features include a rated working current up to 80A and an insulation voltage of 690V, making them suitable for a wide range of industrial applications.
They offer reliable performance with short-circuit protection and an impulse withstand voltage of 8kV, ensuring safety and efficiency. With a mechanical life of over 8000 cycles and an electrical life of over 1500 cycles, these breakers provide long-lasting service, reducing downtime and maintenance costs.
Additionally, Lovadon circuit breakers are available in various configurations, such as 2P and 4P, catering to diverse system requirements. Their compatibility with AC220V/110V and 50/60Hz power supplies further enhances their versatility and appeal to B-end clients.

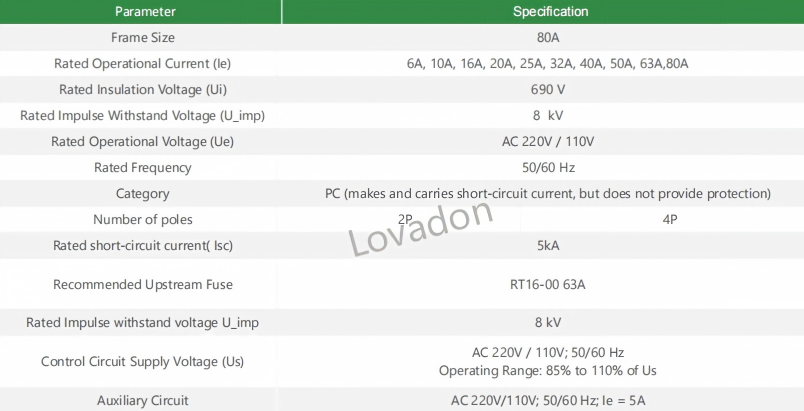

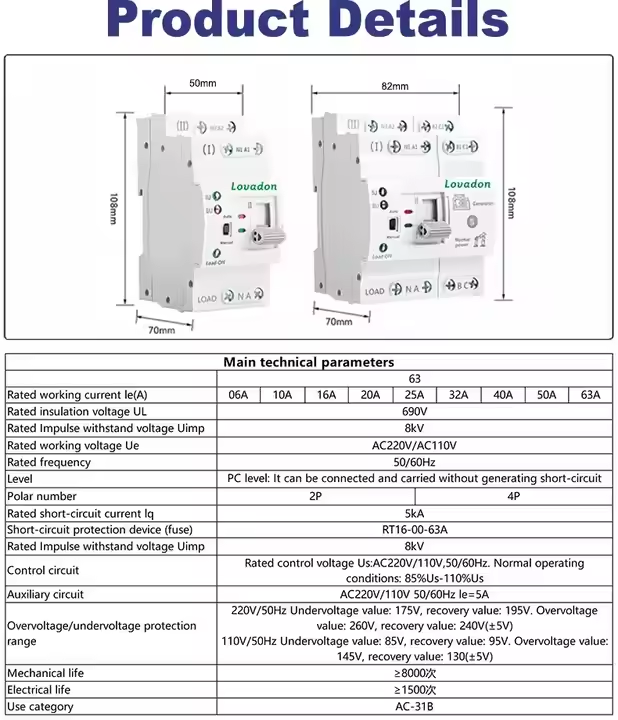

Technical Parameters
| Model Number | ATSA-80 4P |
| Place of Origin | Zhejiang, China |
| Brand Name | LOVADON,OEM,OTHER |
| Type | PC |
| Number of Pole | 4 |
| Rated Current | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A,80A |
| Application | industrial power |
| Phase | Three Phase |

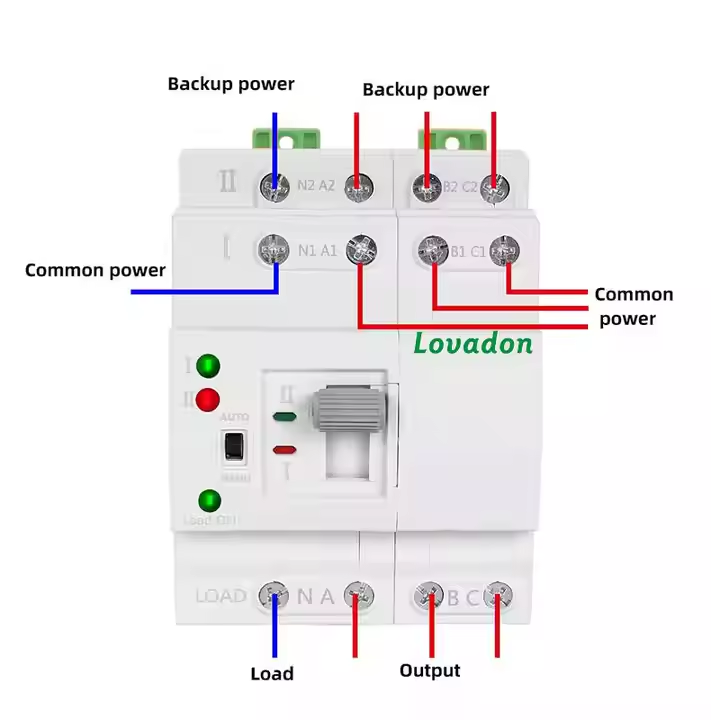

| specifications | City power to city power or city power to generator |
| operating voltage Ue | AC220V |
| Rated insulation voltage UL | 690V |
| Rated impulse withstand voltage Uimp | 8KV |
| Control circuit | Us:AC220V/110V,50/60Hz. Normal operatingconditions:85%Us-110%Us |
| Auxiliary circuit | AC220V/110V 50/60Hz le=5A |
| Mechanical life | ≥8000 times |
| Electrical life | ≥1500 times |
| Use category | AC-31B |
