General

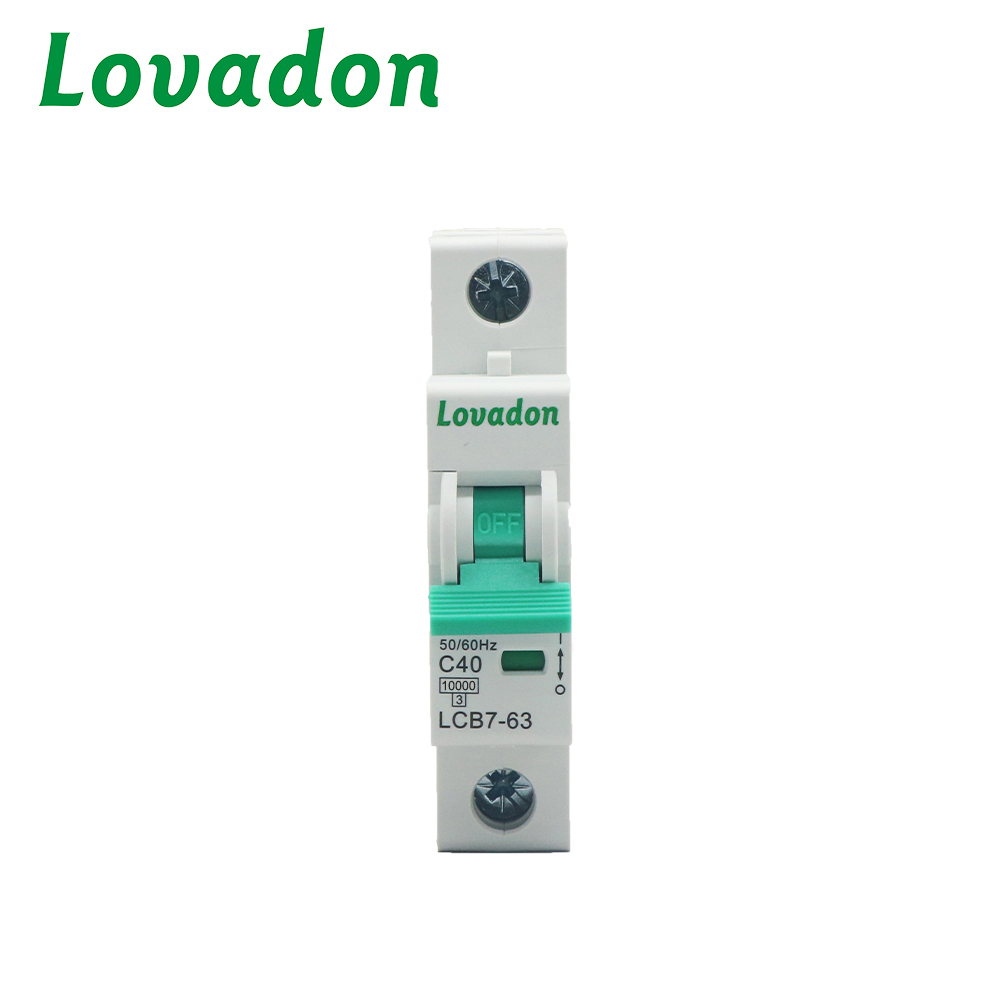

LCB7-63H miniature circuit breaker is mainly used for AC 50Hz (or 60Hz), the rated working voltage is 415V, and the rated short circuit breaking capacity is not more than 10000A in the protective distribution lines. It has the functions of overload and short circuit protection, advanced structure, reliable performance, high breaking capacity and beautiful appearance. The product meets GB10963.1 and IEC 60898-1 standards

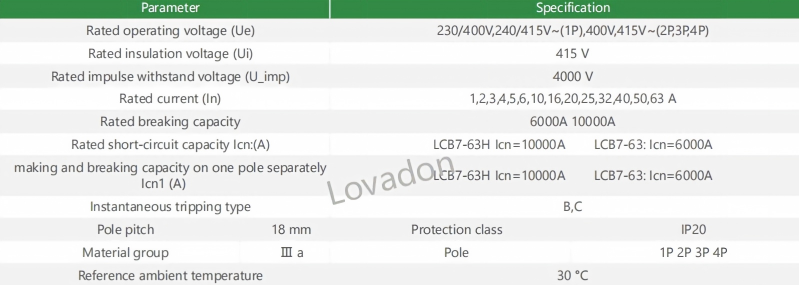

Technical Parameters
| Rated operating voltage (Ue) | 230V/240V |
| Rated insulation voltage (Ui) | 415V |
| Rated impulse withstand voltage (Uimp) | 4KV |
| Rated current (In) | 1A,2A,3A,4A,5A,6A,10A,16A,20A,25A,32A,40A,50A,63A |
| Grid distance (mm) | 18mm |
| Eviroment Temperature | -10°C + 55°C |
| Over Voltage Categori | III |
| Mechanical Operations | 10000 |
| Electrical Operations | 4000 |
| Certificate | CE,ISO |
