General

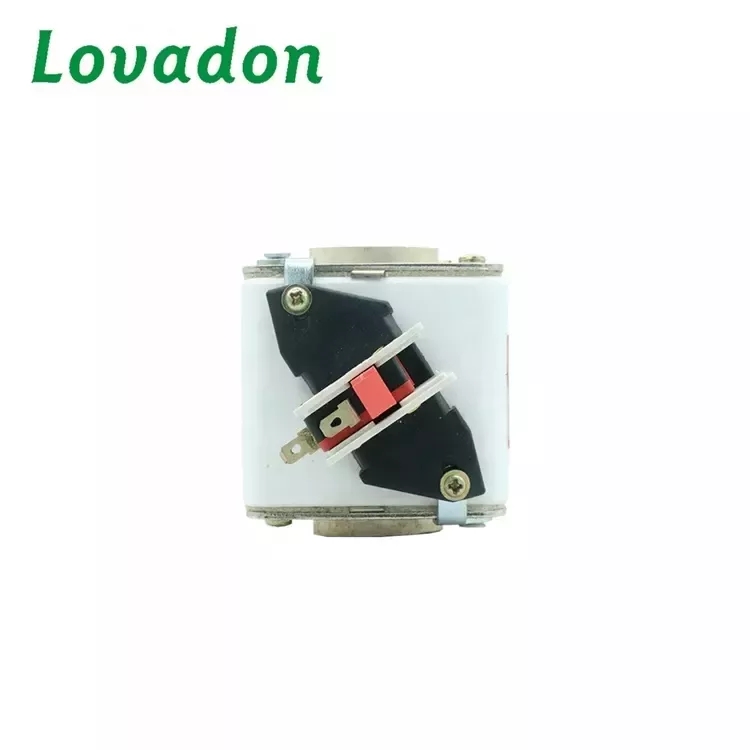

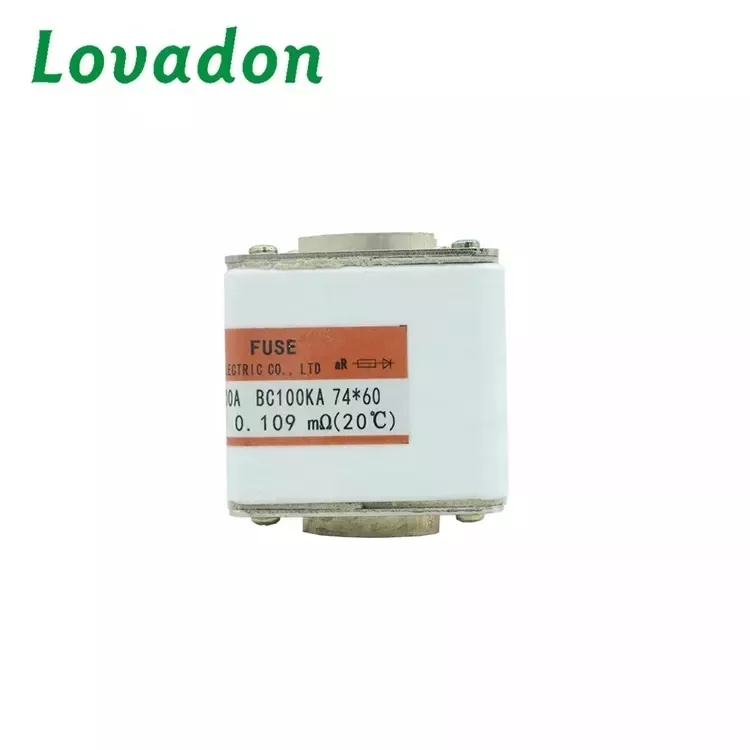

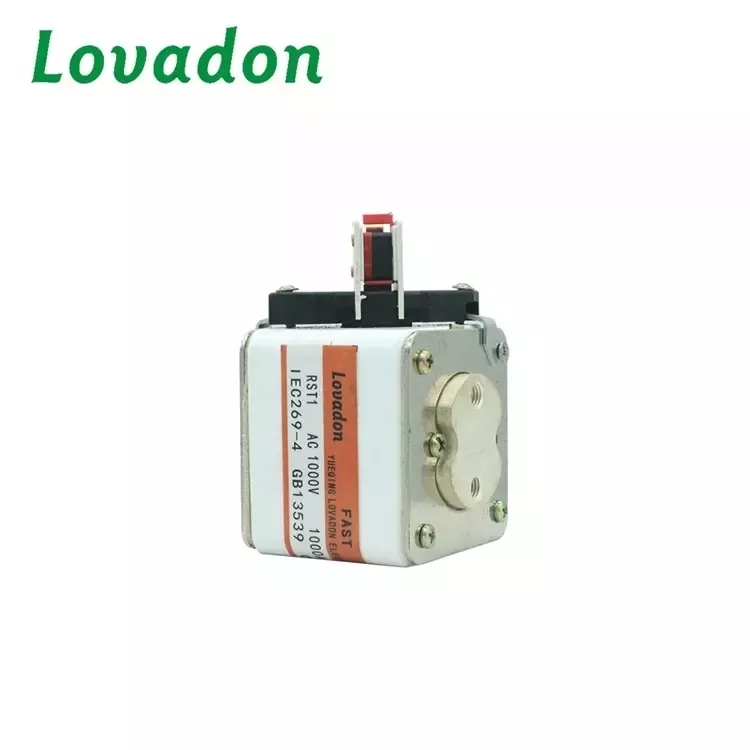

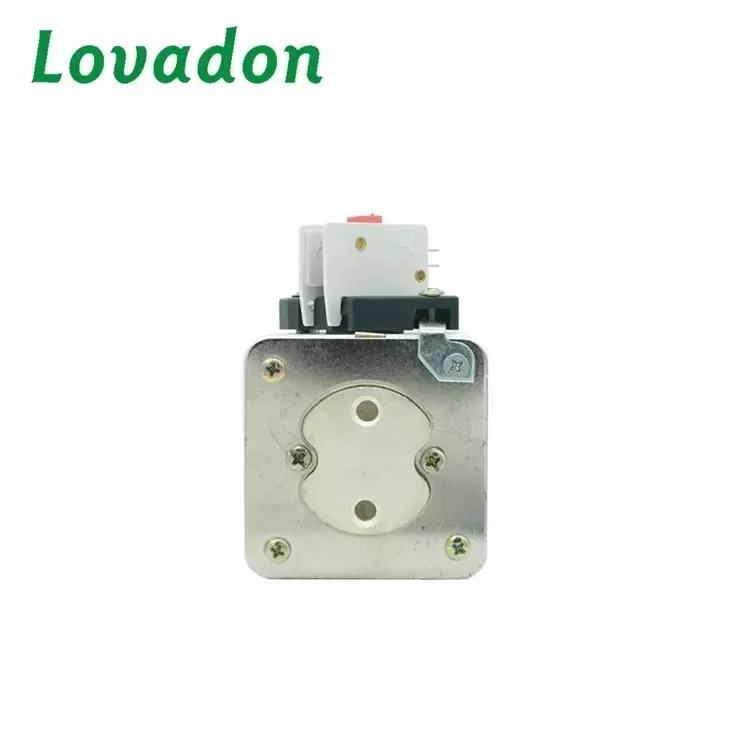

LOVADON RSM02P51KN is a low-voltage, fast-speed fuse with a rating of 1000A, designed for general applications. It features a square shape and semiconductor protection, adhering to unspecified safety standards. This product operates at 1000V and exhibits AR GR style characteristics.
Technical Parameters
| Type | Competitor part number | Rated voltage(V) | Class rating (A) | Dimensions(mm) |
| A | B | D | E | F | G | H |
| RSM01P51KN | 170M, URD, URG | AC690/DC440 | 40-630 | 50 | 51 | 59 | 40 | M8 | 5 | f17 |
| RSM02P51KN | 170M, URD, URG | AC690/DC440 | 200-900 | 50 | 51 | 69 | 50 | M8 | 8 | f20 |
| RSM03P51KN | 170M, URD, URG | AC690/DC440 | 400-1250 | 50 | 51 | 77 | 60 | M10 | 10 | f24 |
| RSM05P51KN | 170M, URD, URG | AC690/DC440 | 500-2000 | 50 | 51 | 92 | 75 | M12 | 10 | f30 |
| Type | Competitor part number | Rated voltage(V) | Class rating (A) | Dimensions(mm) |
| F | G |
| RSM07P67A | 170M, URD, URG | AC690/DC440 | 1000-4000 | 4 M10 | 33 |
| RSM07P67AKN | 170M, URD, URG | AC690/DC440 | 1000-4000 | 4 M10 | 33 |
| RSM07P67B | 170M, URD, URG | AC690/DC440 | 1000-4000 | 4 M10 | 38 |
| RSM07P67BKN | 170M, URD, URG | AC690/DC440 | 1000-4000 | 4 M10 | 38 |
