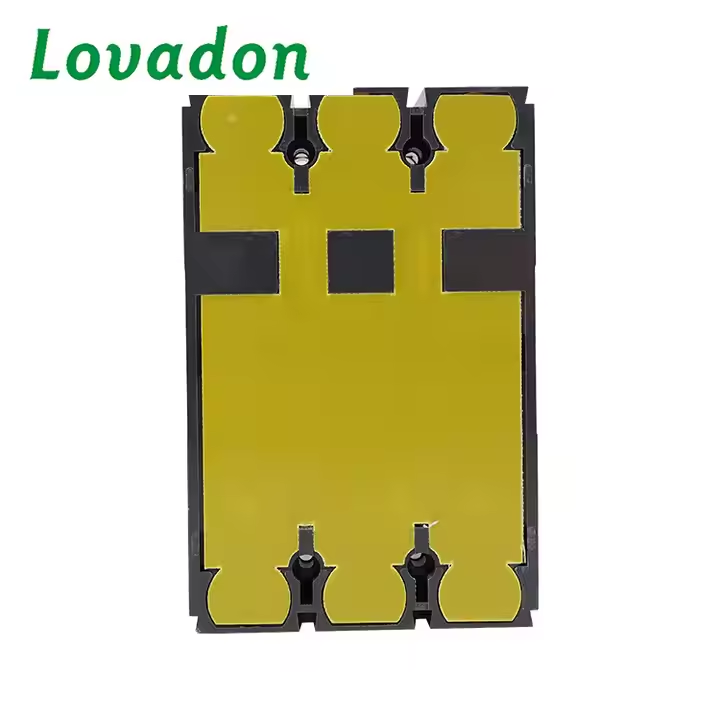

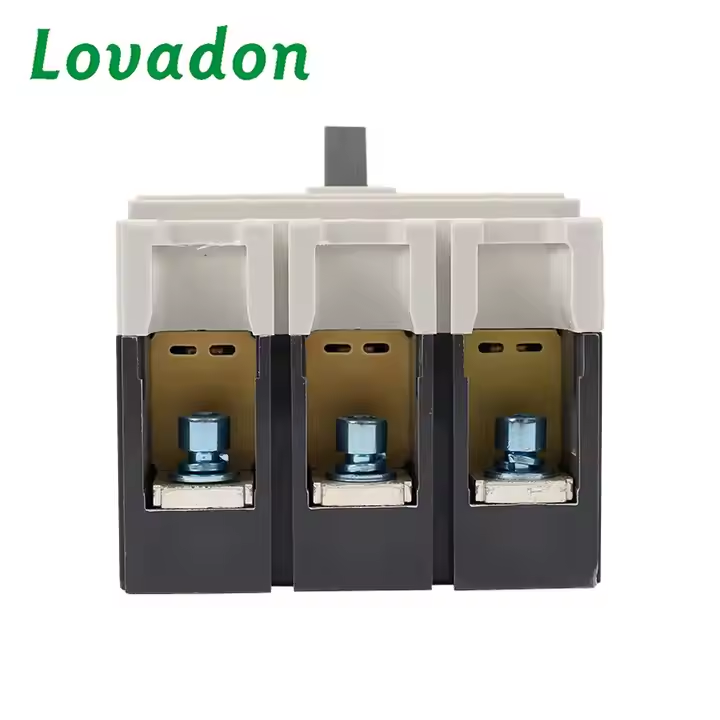

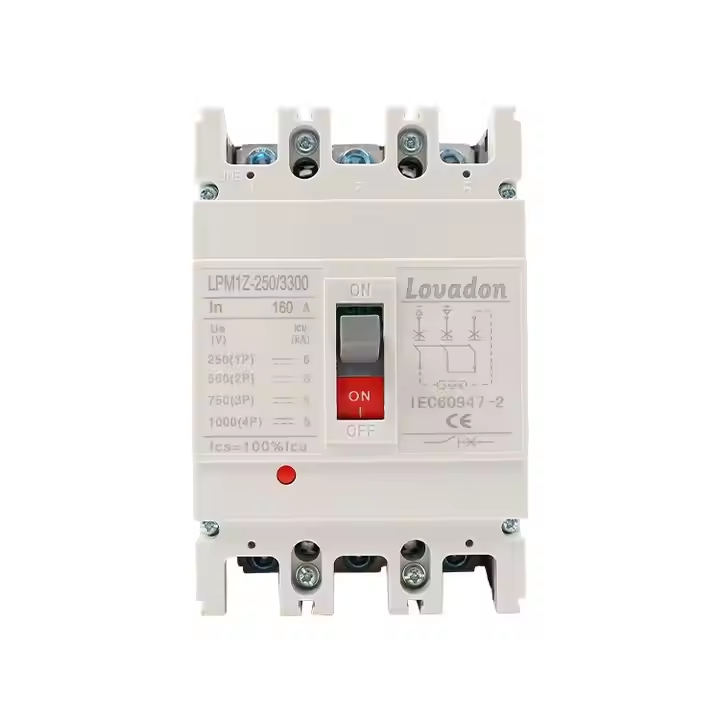

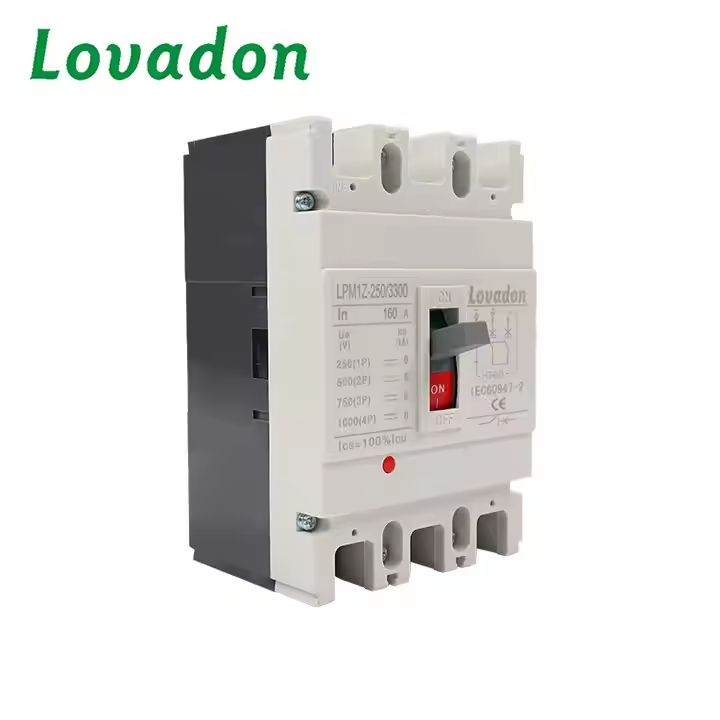

General
This device complies with the standards IEC 60947-2, IEC 60947-1, GB 14048, and GB 14048-2. It has a temperature range of -25°C to 50°C and features an IP20 protection degree. Available accessories are OF/SD/MX, with an arcing distance of ≥50mm.
Technical Parameters

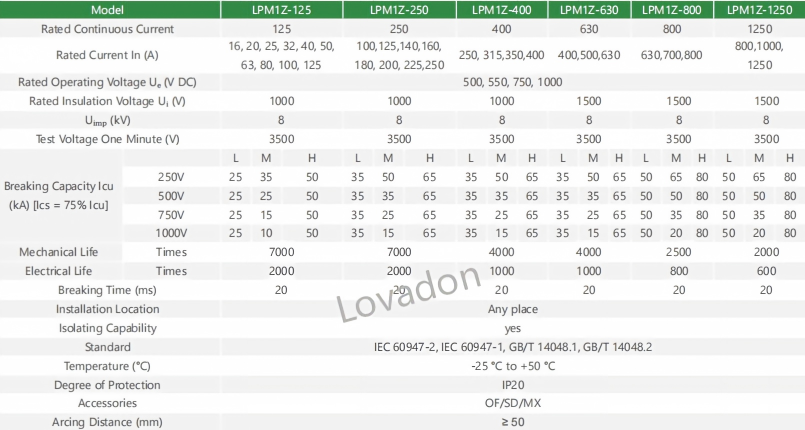

| Model | LPM1Z-125 | LPM1Z-250 | LPM1Z-400 | LPM1Z-630 | LPM1Z-800 | LPM1Z-1250 |
| Rated Continuous current | 125 | 250 | 400 | 630 | 800 | 1250 |
| Rated Current In (A) | 16,20,25,32
40,50,63,
80,100,125 | 100,125,140,
160,
180, 200, 225,250 | 250, 315,
350,400 | 400,500,630 | 630,700,800 | 800,1000,1250 |
| Rated Operating Voltage Ue(V)DC | 500, 550, 750, 1000 |
| Rated Insulation Voltage UI(V) | 1000 | 1500 |
| Uimp(KV) | 8 |
| Test Voltage One Miute(V) | 3500 |
Breaking Capacity (KA)
Icu(1cs=75%Icu) |
| L | M | H | L | M | H | L | M | H | L | M | H | L | M | H | L | M | H |
| 250V | 25 | 35 | 50 | 35 | 50 | 65 | 35 | 50 | 65 | 35 | 50 | 65 | 50 | 65 | 80 | 50 | 65 | 80 |
| 500V | 25 | 25 | 50 | 35 | 35 | 65 | 35 | 35 | 65 | 35 | 35 | 65 | 50 | 50 | 80 | 50 | 50 | 80 |
| 750V | 25 | 15 | 50 | 35 | 25 | 65 | 35 | 25 | 65 | 35 | 25 | 65 | 50 | 35 | 80 | 50 | 35 | 80 |
| 1000V | 25 | 10 | 50 | 35 | 15 | 65 | 35 | 15 | 65 | 35 | 15 | 65 | 50 | 20 | 80 | 50 | 20 | 80 |
| Mechaanical life | Times | 7000 | 7000 | 4000 | 4000 | 2500 | 2000 |
| Electric Life | Times | 2000 | 2000 | 1000 | 1000 | 800 | 600 |
| Breaking Times(ms) | 20 | 20 | 20 | 20 | 20 | 20 |
| Installation Location | Any place |
| Isolator capacity | yes |
| Standard | IEC 60947-2,IEC60947-1,GB 14048,GB 14048-2 |
| Temperature(°C) | -25°C-50°C |
| Protection Degress | Ip20 |
| Accessory | OF/SD/MX |
| Arcing Distance(mm) | ≥50 |
