DC MCB

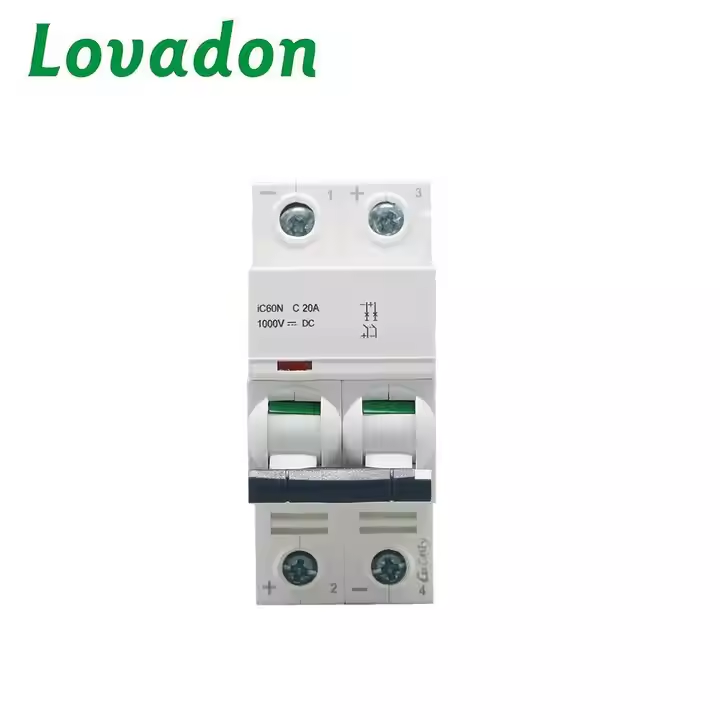

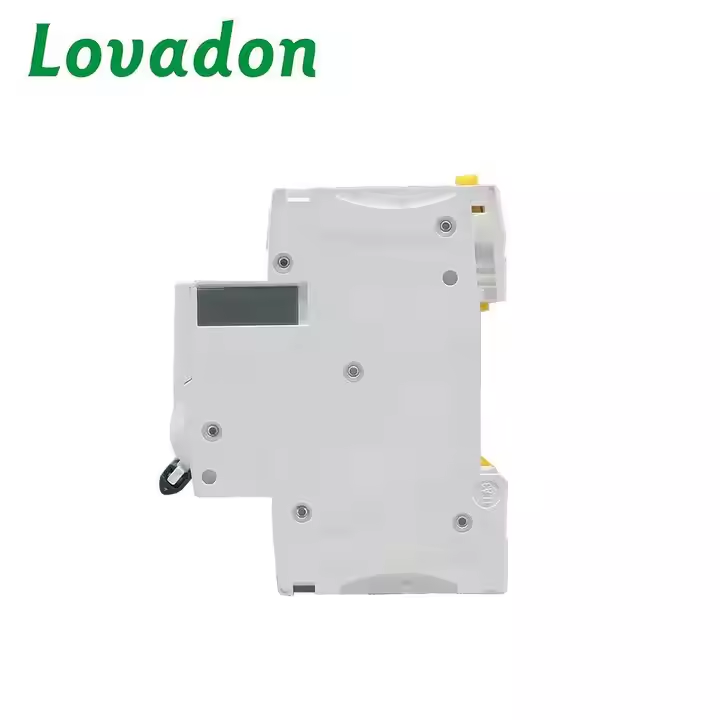

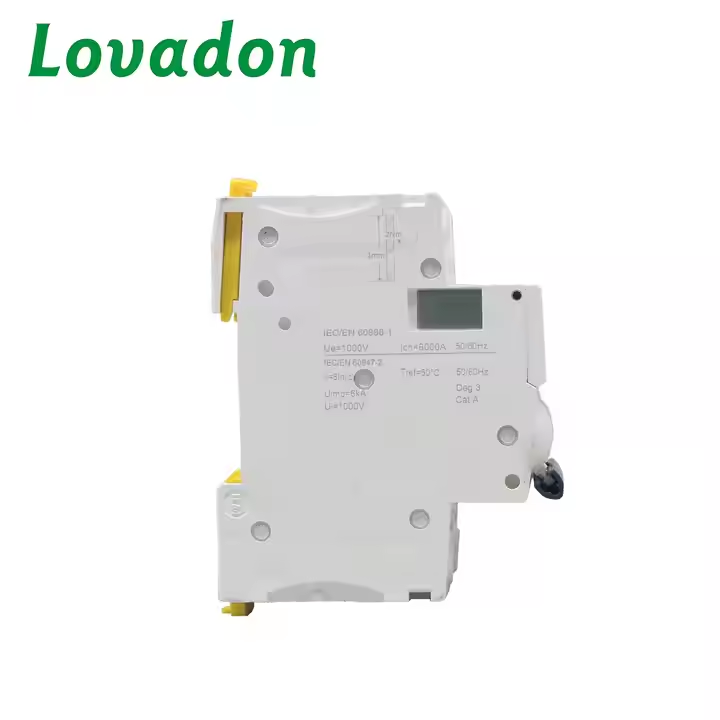

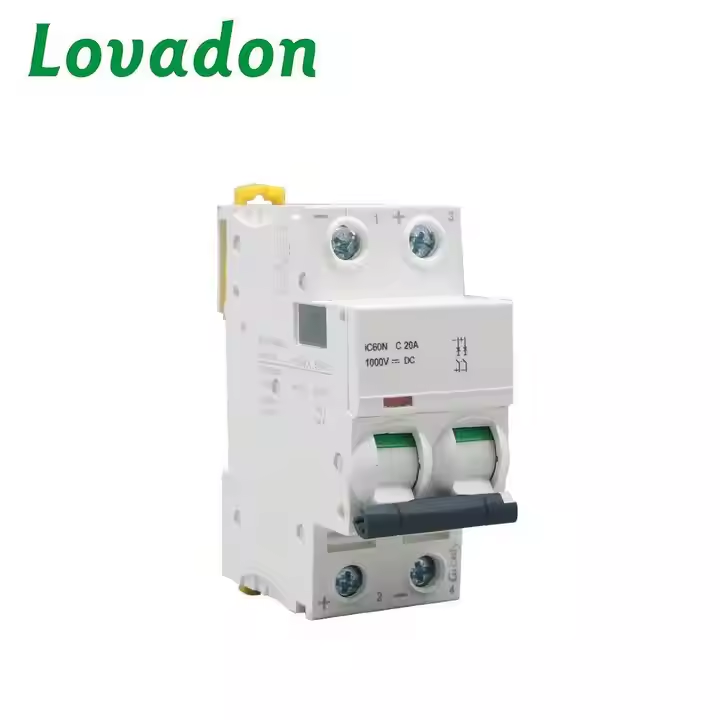

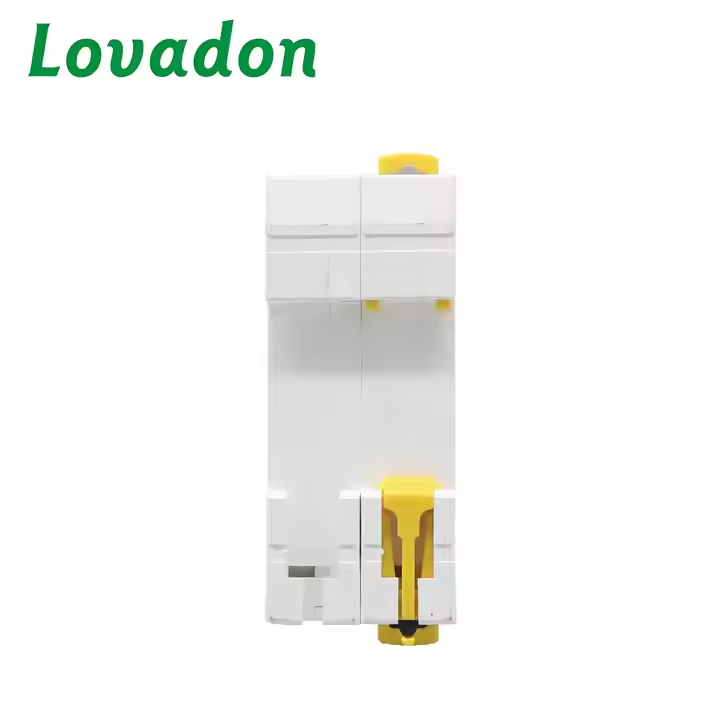

IC 60N-DC 2P 20A 100% Original Professional Miniature Circuit Breaker 60N IC 2P 20A 1000V Rated Voltage 6KA Breaking Electronic Components MCB LI

1. Protection against both overload and short circuit,with isolation function2. High short-circuit capacity3. Pin/fork-type busbar terminal connection4. 18 mm DIN rail mounting and screw mounting5. Full range of accessories availableTechnical ParametersAltitude DeratingProduct Dimensions (mm)

General

1. Protection against both overload and short circuit,with isolation function

2. High short-circuit capacity

3. Pin/fork-type busbar terminal connection

4. 18 mm DIN rail mounting and screw mounting

5. Full range of accessories available

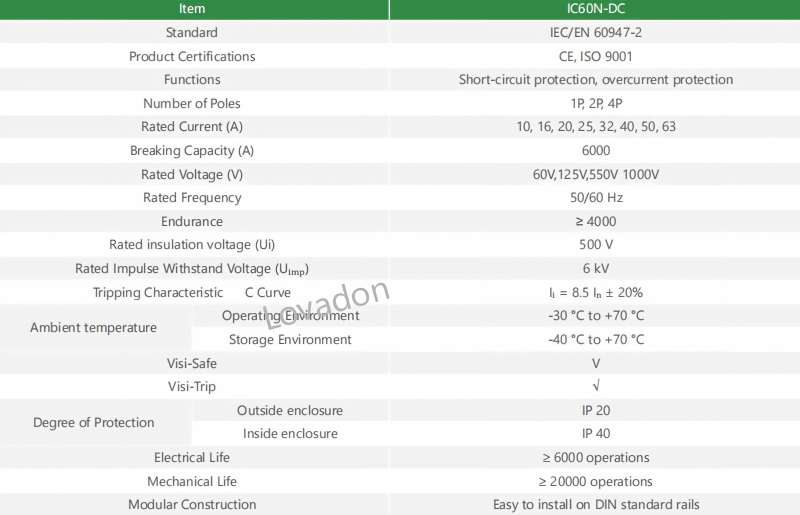

Technical Parameters

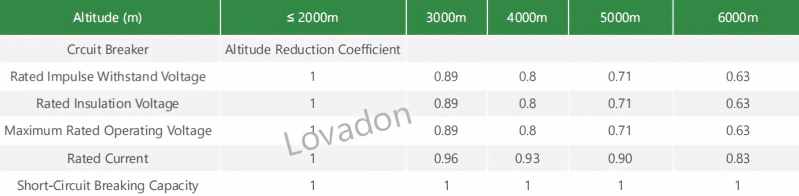

Altitude Derating

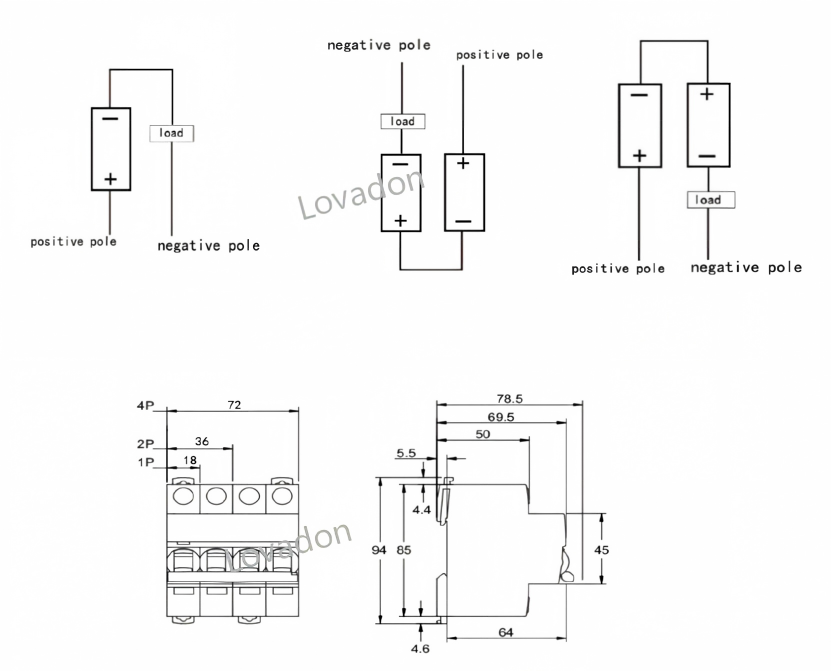

Product Dimensions (mm)
