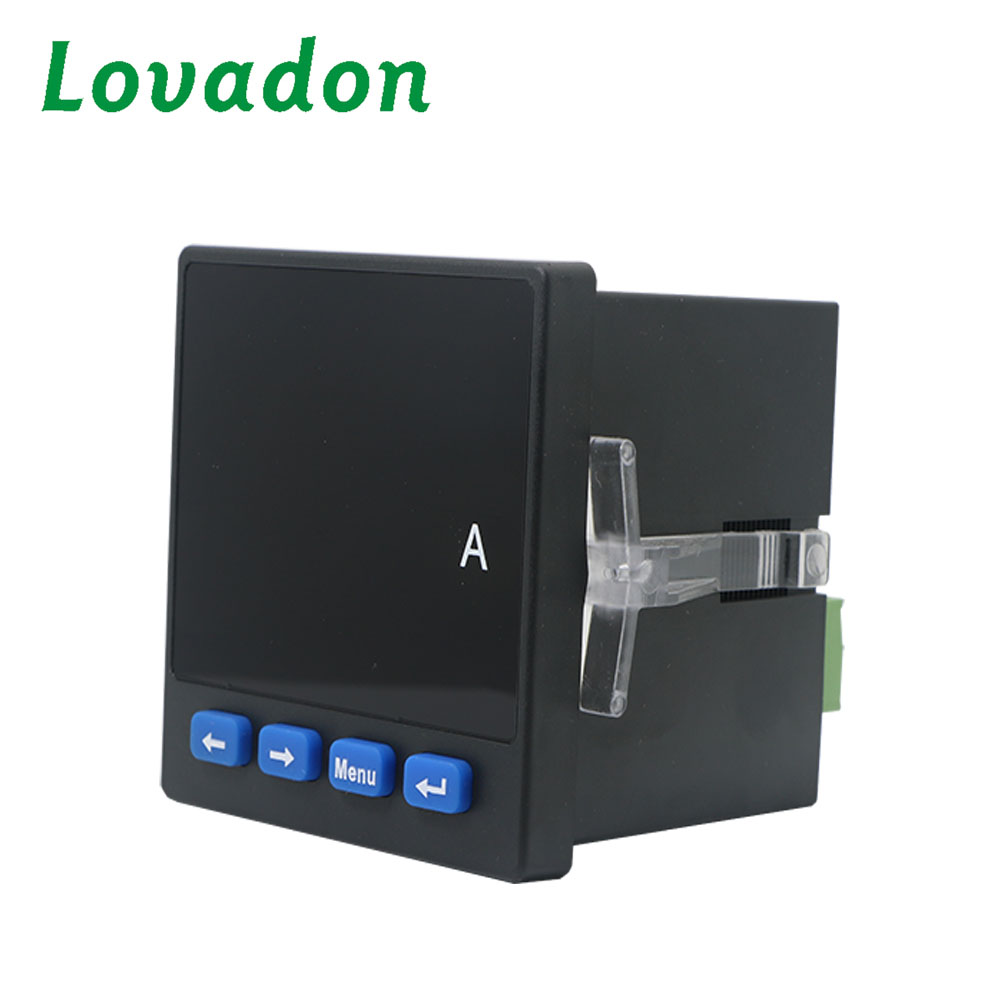

Performance Characteristics

High precision measurement of single phase AC/DC current

Provide the digital tube display, local data query

Programmable CT ratio

Support for RS-485 communication, modbus-RTU protocol

Auxiliary power supply: AC/DC 80-270V,AC 220V,AC 380V,AC 100V

A variety of dimensions to meet the different requirements of the electric distribution box.

Technical Index Accuracy of Measurement

Current: level 0.5

Signal Input

High precision measurement of single phase AC/DC current

Provide the digital tube display, local data query

Programmable CT ratio

Support for RS-485 communication, modbus-RTU protocol

Support for switch input, output, analog transmitting output

Auxiliary power supply: AC/DC 80-270V,AC 220V,AC 380V, AC 100V

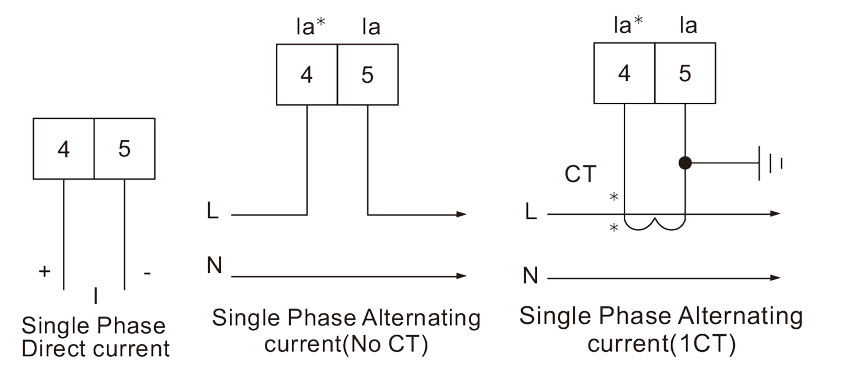

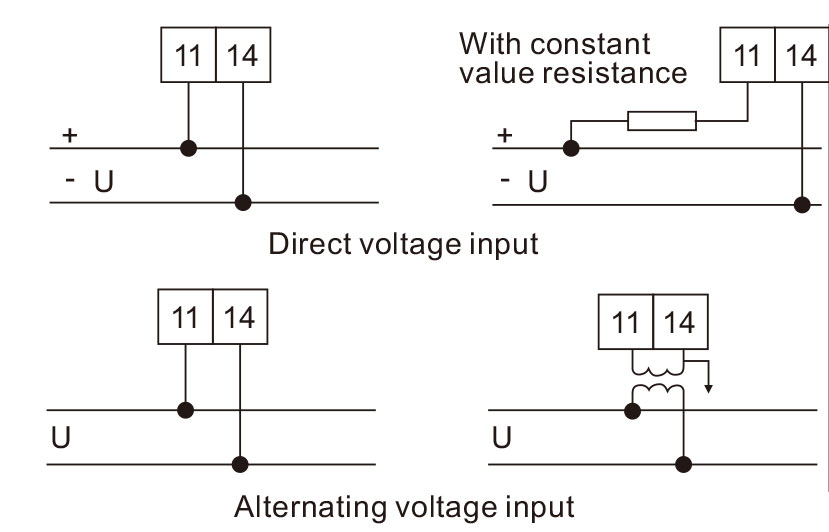

Connection Mode: signal phase two wires

Rated Current: AC 1A, AC 5A, DC 20mA, DC 1A, DC 5A, DC 75mV

Overload:1.2 times(continued),10 times/5second(instantaneous)

Power Consumption:<0.4VA per phase

Impedance:<20mΩ

Frequency:45~60Hz

Accessory Power Supply

Working Range: AC/DC 80-270V,AC 220V,AC 380V, AC 100V

Power Consumption:<4VA

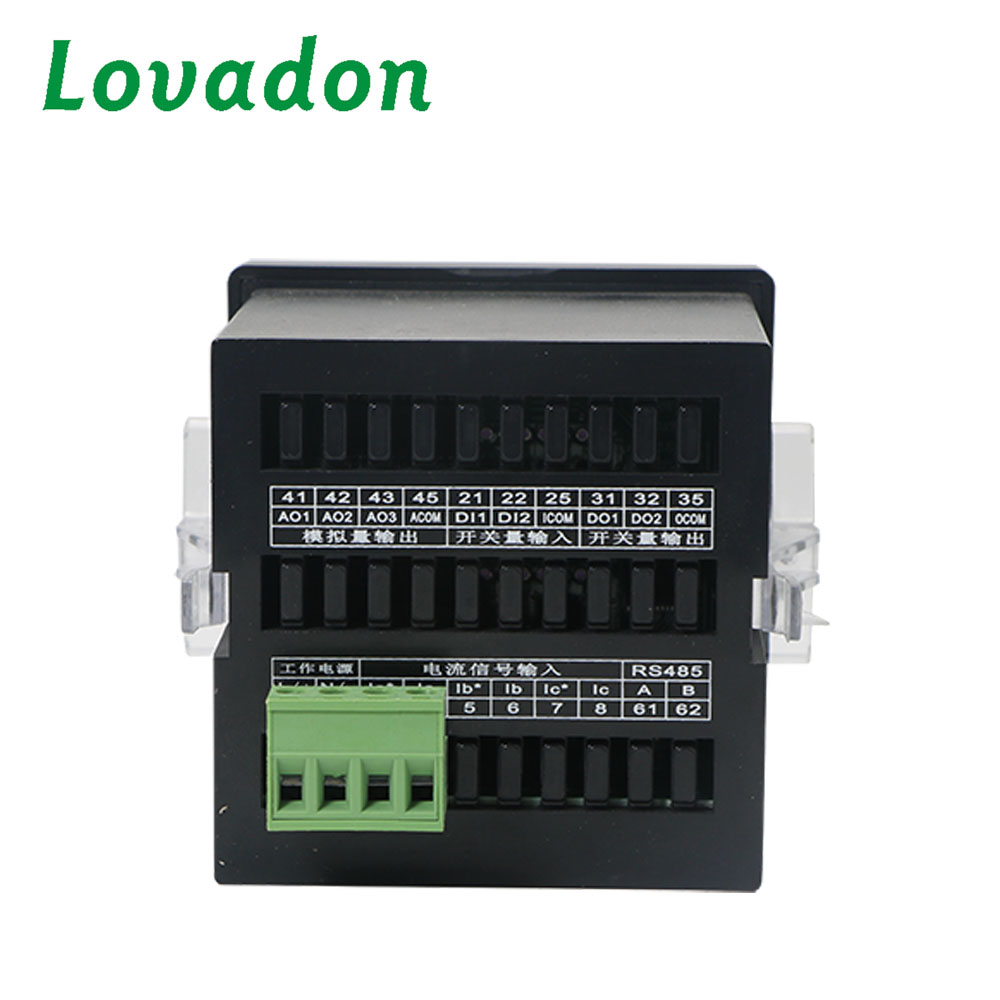

Function Module

Communication Interface:1 way RS-485 communication,

modbus-RTU protocol

Baud Rate:2400~9600bps,the default is 9600bps

Switch Input:4 ways

Switch Onput:3 ways(capacity:AC 250V/1A,DC 30V/5A)

Transmission Onput:3 ways(analog Onput:0/4~20mA or 0~5/10V)

Safety

Insulation Resistance:>100MΩ

Ac Electric:AC 2KV

Emc Performance

ESD Electrostatic Discharge: class 4

Electrical Fast Transient Burst: class 4

Surge(impact):class 4

Overall dimensions

Frame Size(mm):120120,9696,8080,7272

Hole Size(mm):111111,9292,7676,6868

Technical Parameters

LST(ND194) LST96-A-LST96H-A electric current process
