General
TB-45 Mechanical Timer is suit for water heater, Water dispenser, Street lamp, Staircase lamp,Advertising lamp box,Breed aquatics, Irrigation, office power auto control, anywhere need time control in civilian, home or industrial, etc. It can set 8 programs to control ON or OFF of electric appliance in 24 hours or set 48 programs in one week. It can be programmed to avoid the peak of power, and distribute power in time limit to save energy.This timer is a kind of module for DIN guide rail,easy to installation in illmination box, and is so compact size with pretty form. Its time base component is adopt synch pulse motor and it is strong anti-jamming, small consume with performance stability.
Technical Parameters
| Model number | TB-45 |
| Movement Type | AC type |
| Frequency | 50~60Hz |
| Contact Capacity | AC250V 16A |
| Contact Resistance | ≤50 mΩ |
| Insulation Resistance | ≥100 mΩ |
| Life/Electrical | 10ntimes (n=5) |
| Mechanical | 10ntimes (n=7) |
| Minimum setting unit | 15 minutes |
| Minimum setting interval | 15 minutes |
| Full Timing Range | 24h |
| Operating Temperature | -40℃〜+55℃ |
| Storage battery(working reserve) | 150h/without battery |
| Set up times | 15m/per times 96 times |

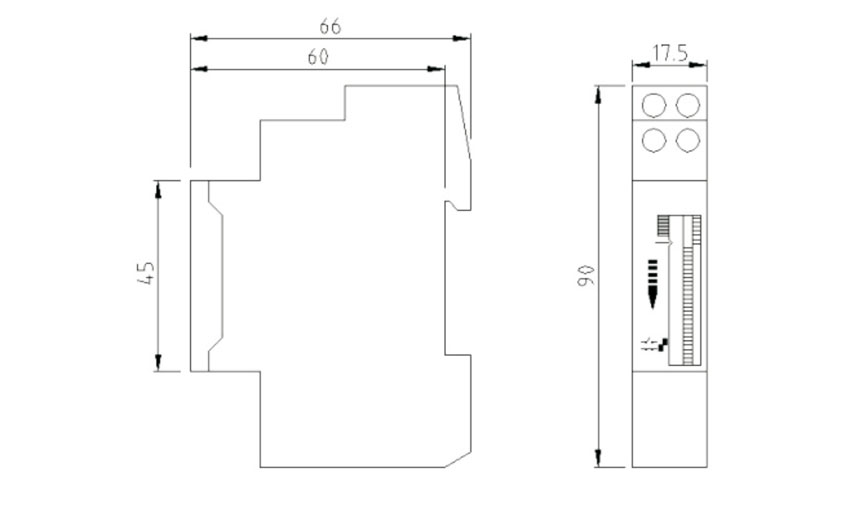

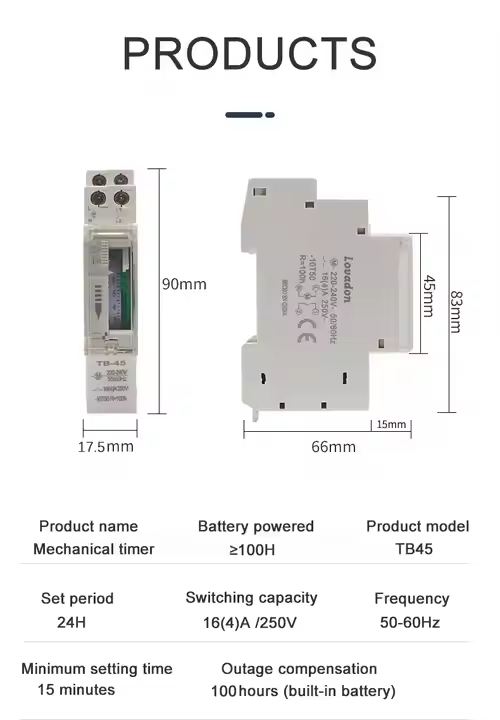

Dimensional drawing
