General

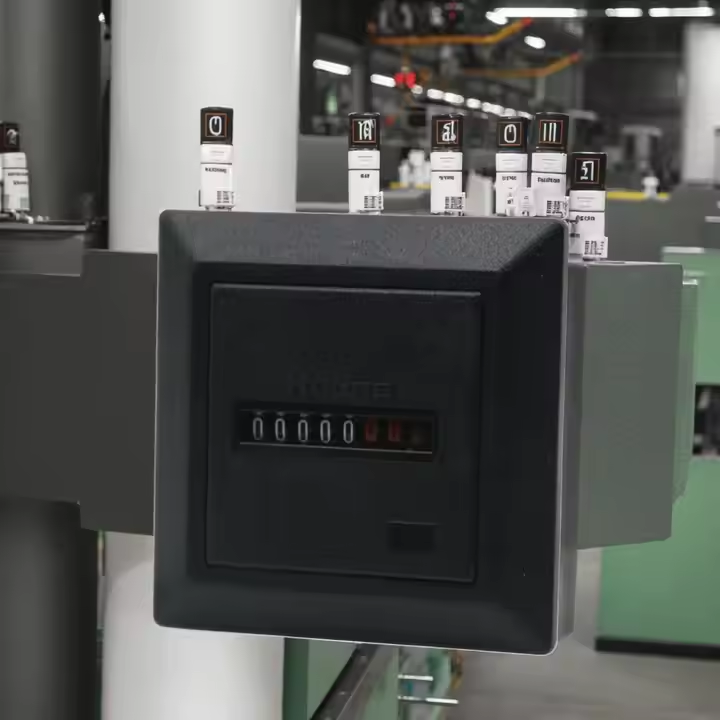

The hour meter is specially designed for standard industrial timing and supplying data for the reference of maintenance duration for precision equipments. Featuring waterproof and steady performance, the hour timer gauge is widely used for tracking time on machinery such as engineering vehicles, various types of cars and other device where there is a need to record hours operated.
Elapsed time meter monitor ON/OFF time of plant and equipment allowing the user to perform functions such as Production Efficiency Cost Estimating and Service Period monitor-i nk for preventatives maintenance etc . The time is measured in instrument of 0.01hrs up to 99999. 99 hr S after which time the meter resets to zero. Non-reset table to prevent accidental resetting.

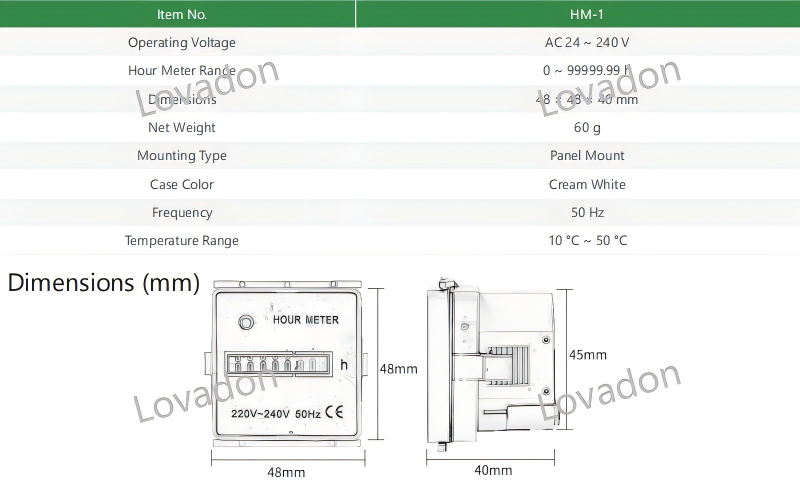

Technical Parameters
| ItemNo | HM-1 |
| Operating Voltage | AC 24-240V |
| Time Range | 0-99999.99h |
| Dimension | 48*48*40mm |
| Net Weight | 60g |
| Mounting | insert Type |
| Case Color | Cream color |
| Frequency: | 50hz |
| Temperature | -10°C-50°C |
