General
The products according the time user, automatically turn on and turn off the variety of electrical equipment, control the object the lights, light boxes and neon signs,production equipment, agriculture,aquaculture,warehouse exhaust dehumidifier, automatically preheat,optimal control products, such as raido and television equipment.built in 2.4V/80mA rechargble bettery, high precision,industrial-grade chips, strong anti-gamming.
Technical Parameters
| Model Number | DHC 15A |
| Theory | Digital |
| Usage | Timer switch,Multifunctional |
| Type | Mini |
| Operating Voltage | AC 110AV-240V 50HZ/60HZ |
| Power Consumption | 4.5VA |
| Operating Temperature | -10~+-50℃ |
| Accuracy | ≤2 Seconds/ day |
| Minimum Setting Range | 1 minutes |
| Time Setting Ranae | 1 minutes -168Hours |
| Contact Capacity | Lamp Load: 1000W Resistive Load: 16A/250VAC
Lamp Load: 2500W Resistive Load: 20A/250VAC |
| Working Reserve Time | 3 years |
| Dimension | 81x36x66mm |
| Weight | 125g |
| G.W | 18 |
| N.W | 17 |
| MEAS | 390x220x375 |
| Mounting | DIN rail mounting |
| Program | 16 on 16off/18 times pulse |

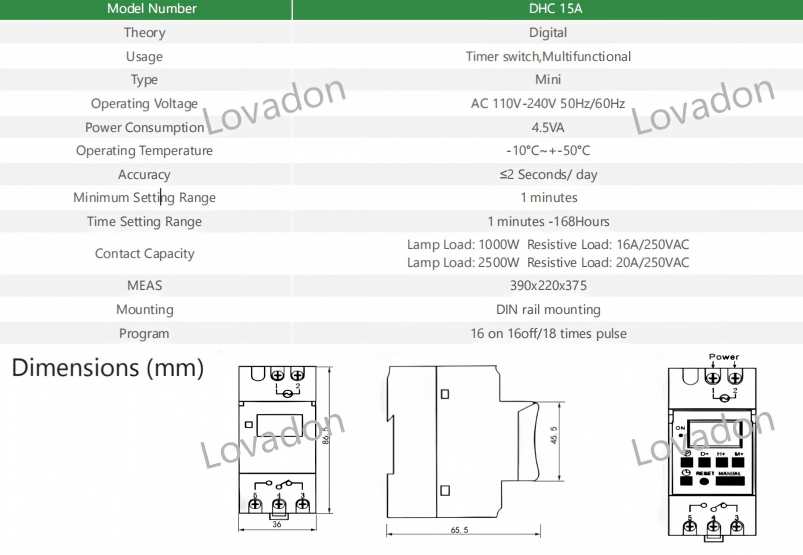

Dimensional drawing
