LDBZ-200S Meter Socket 200A 600V NEMA 3R 4/5/7 Jaw Ring Ringless Single Three Phase Heavy Duty Copper Jaw Meter Base Box-Yueqing Lovadon Electric Co., Ltd.

Metal distribution box

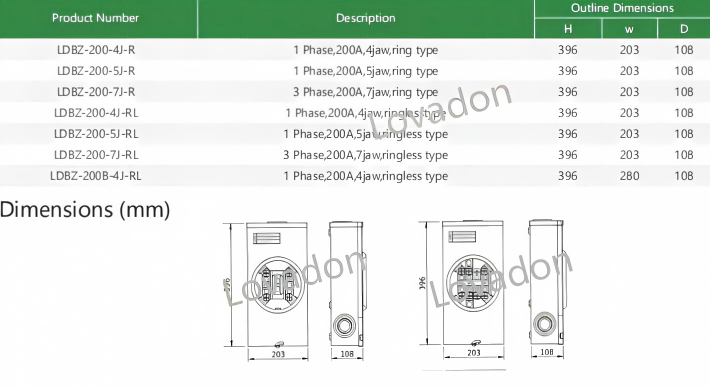

LDBZ-200S Meter Socket 200A 600V NEMA 3R 4/5/7 Jaw Ring Ringless Single Three Phase Heavy Duty Copper Jaw Meter Base Box

200 Amps, 600 V AC.Line and load connectors for #6–350 Cu/Al.Heavy-duty tinned copper jaws with reinforced clips.Complete with center neutral bar.NEMA 3R type construction, 1.2 mm thickness (#18 gauge) or 1.5 mm thickness (#16 gauge) galvanized steelsheet, electrostatically applied epoxy baked gray powder coat finish.Ample gutter space for easy wiring.Convenient knockouts on sides, rear and bottom.Lay-in type terminal with pressure pla···

Request A Quick Quote

Product Details

General

200 Amps, 600 V AC.

Line and load connectors for #6–350 Cu/Al.

Heavy-duty tinned copper jaws with reinforced clips.

Complete with center neutral bar.

NEMA 3R type construction, 1.2 mm thickness (#18 gauge) or 1.5 mm thickness (#16 gauge) galvanized steel

sheet, electrostatically applied epoxy baked gray powder coat finish.

Ample gutter space for easy wiring.

Convenient knockouts on sides, rear and bottom.

Lay-in type terminal with pressure plates for easy connections.

Fixed hub sizes from 1/2" to 2-1/2" optional.

Yueqing Lovadon Electric Co., Ltd.

LDBZ-200S Meter Socket 200A 600V NEMA 3R 4/5/7 Jaw Ring Ringless Single Three Phase Heavy Duty Copper Jaw Meter Base Box
