General
GT series Load Centers have been designed for safe,reliable distribution and control of electrical power as service entrance equipment in residential,commercial and light industrial premises.They are available in plug-in designs for indoor applications.
Features
● Made out of high quality electro-galvanized steel sheet of up to 0.9-1.5mm thickness.
● Matt-finish polyester powder coated paint.
● Knockouts provided on all sides of the enclosure.
● Accept GE`s Q line circuit breakers,including GE's exclusive 1/2”THQPs.
● Suitable for single-phase,three-wire,120/240Vac,rated current to 225A.
● Convertible to main breaker.
● Wider enclosure offers ease or wiring and move heat dissipation.
● Flush and surface mounted designs.
● Knockouts for cable entry are provided on top,bottom of the enclosure.

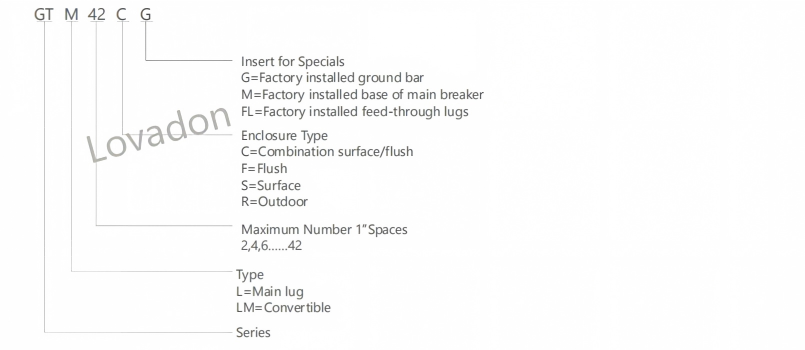

Product Number Guide

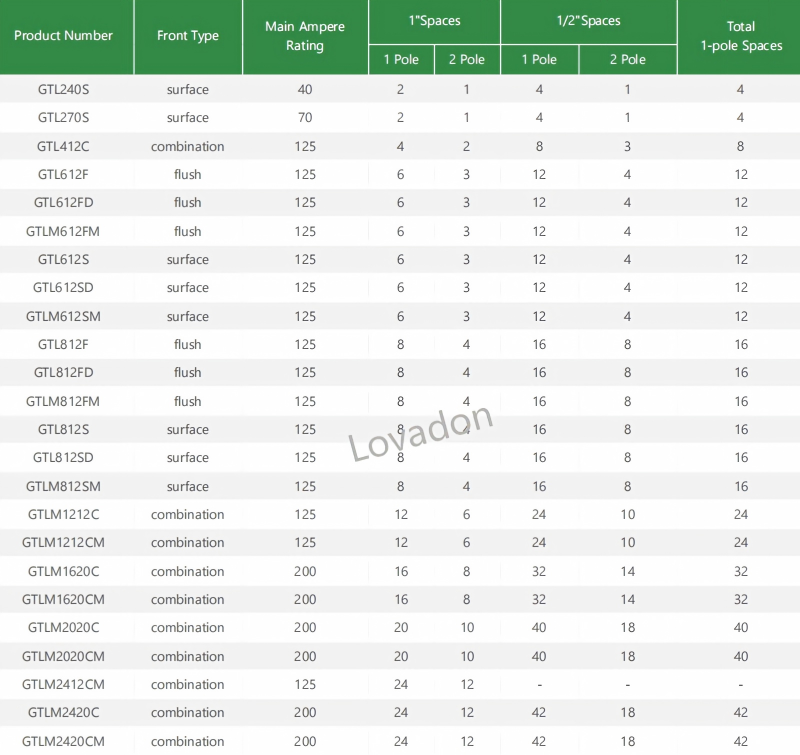

Specifications
