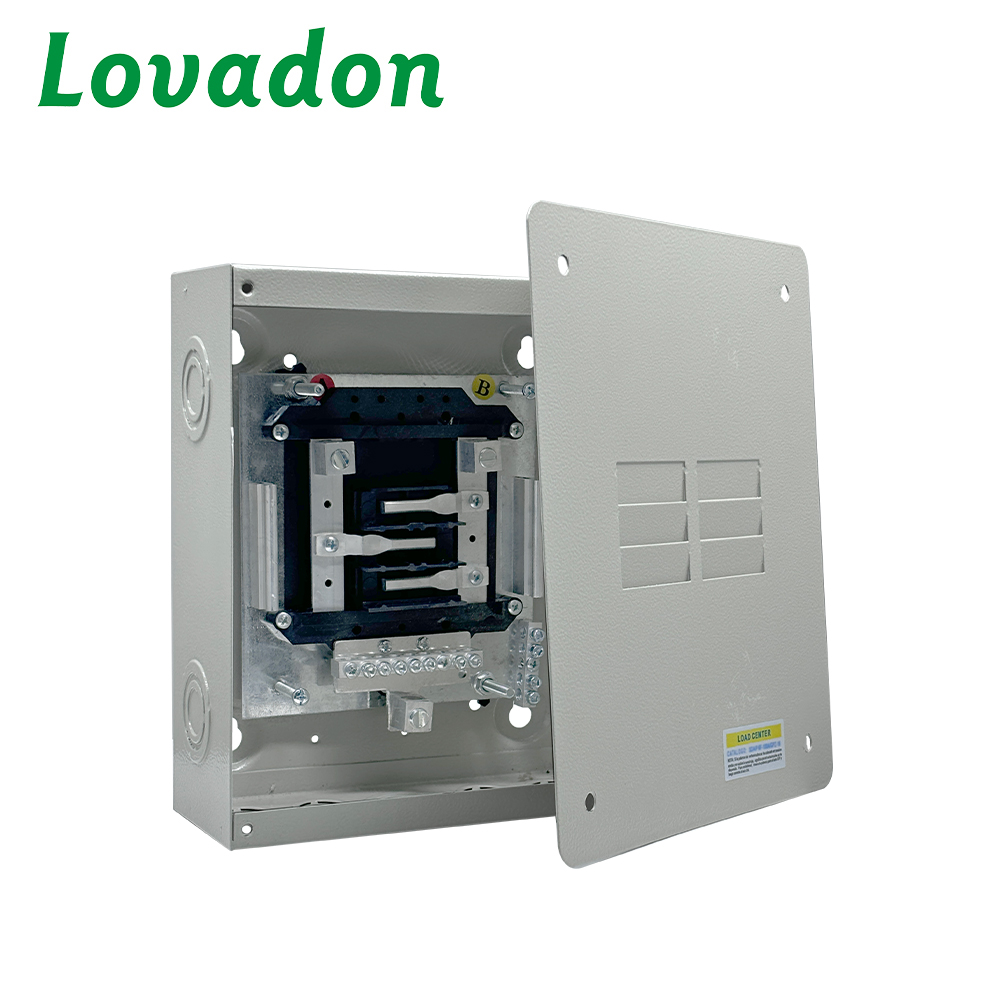

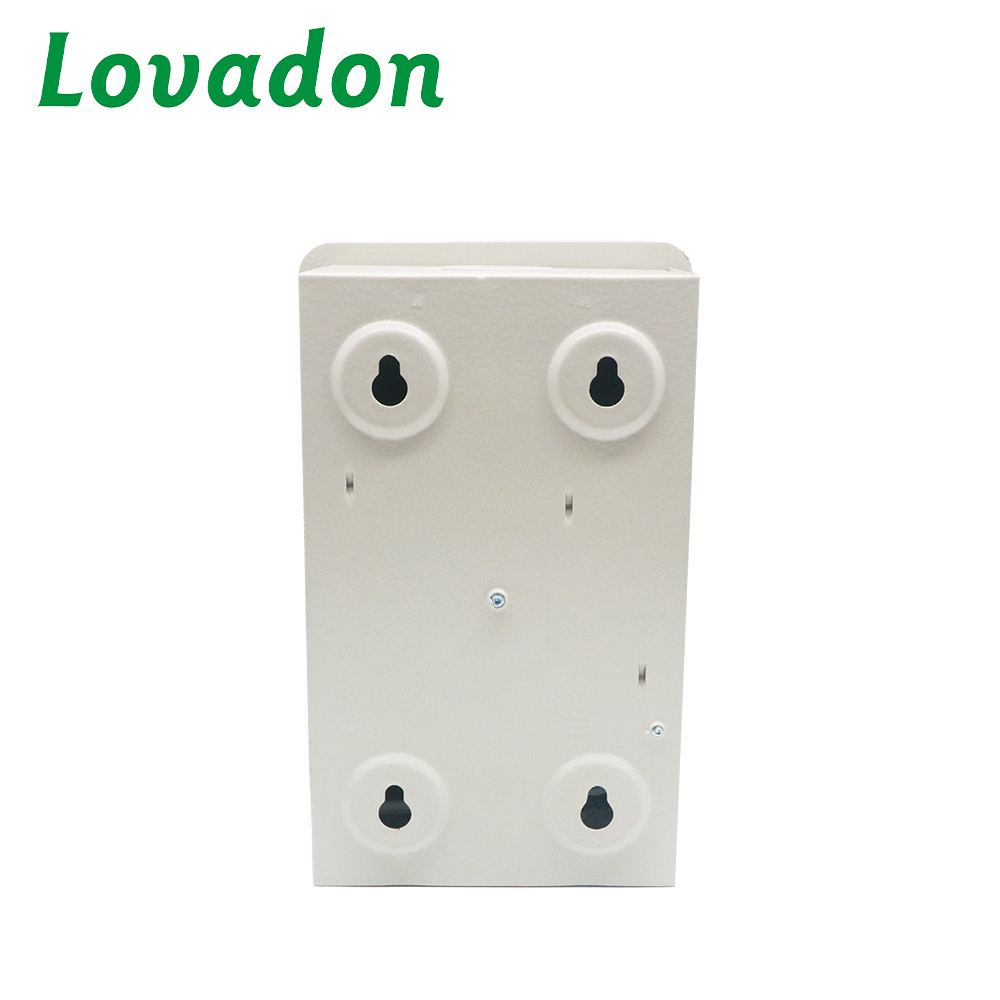

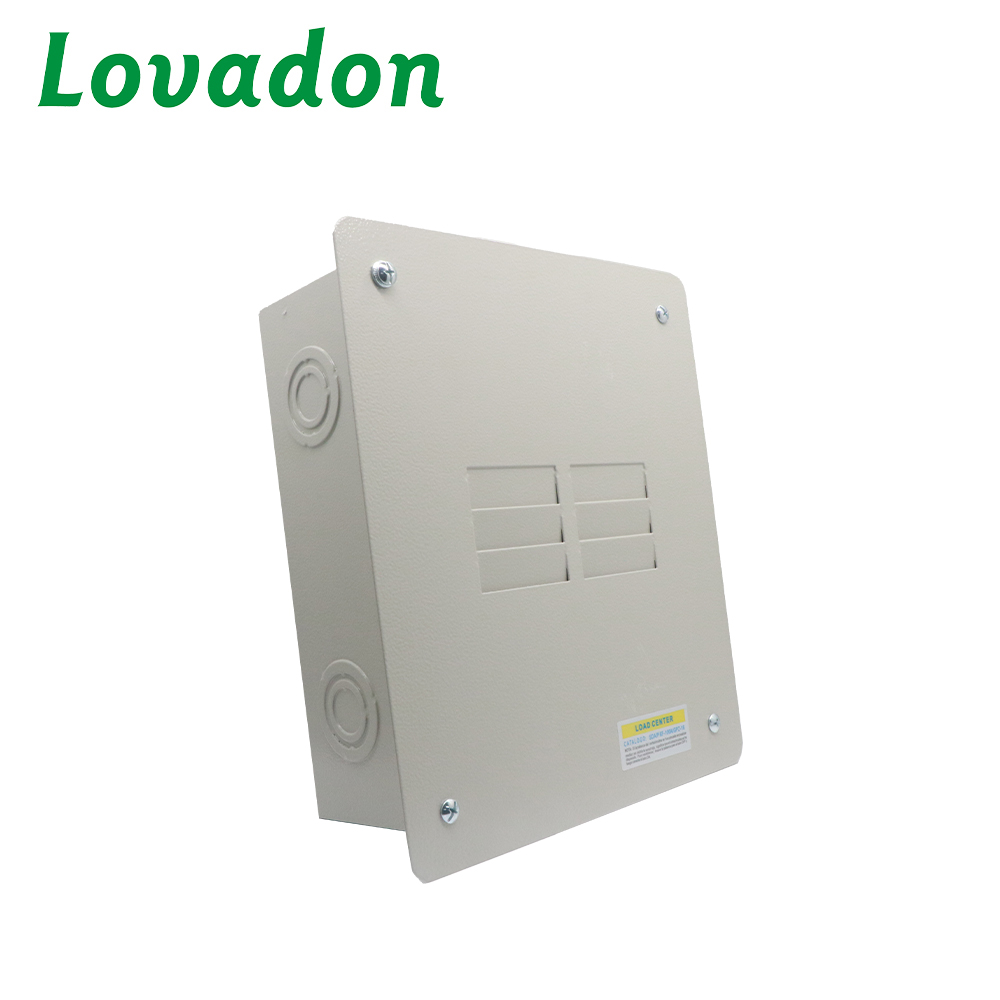

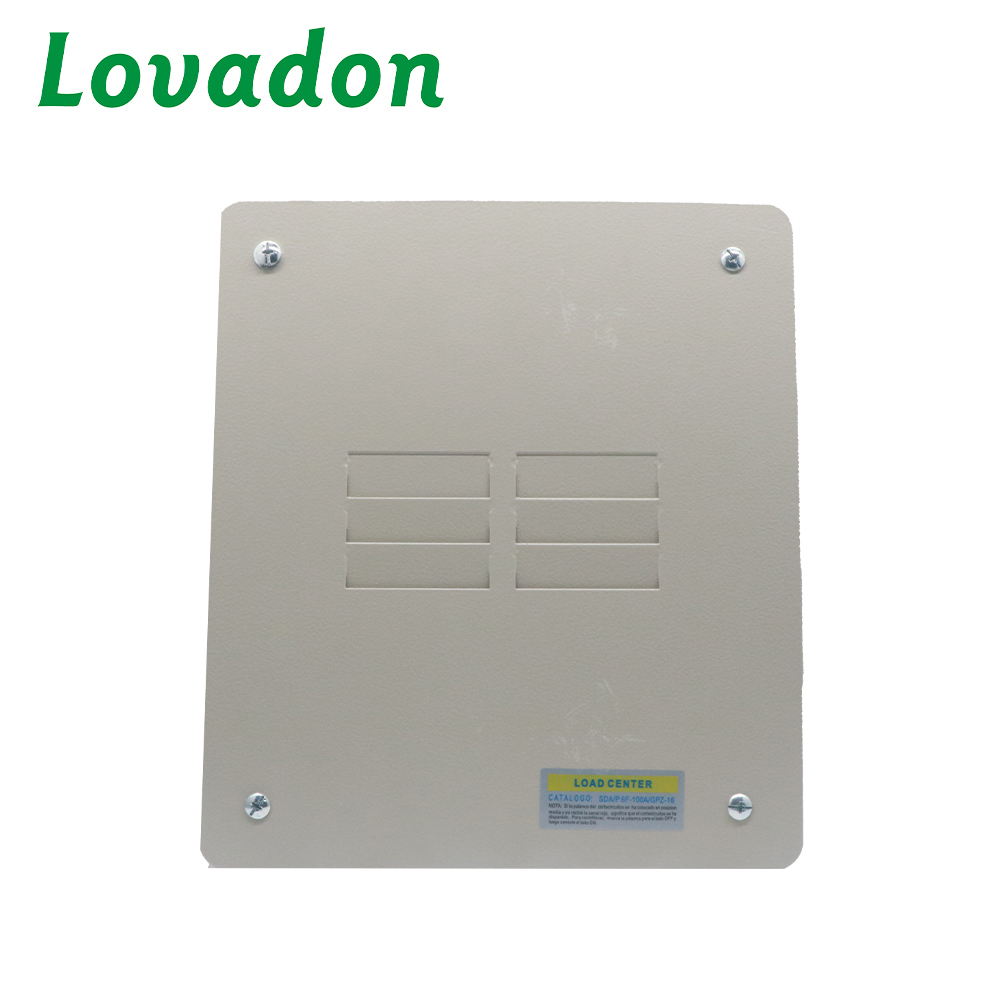

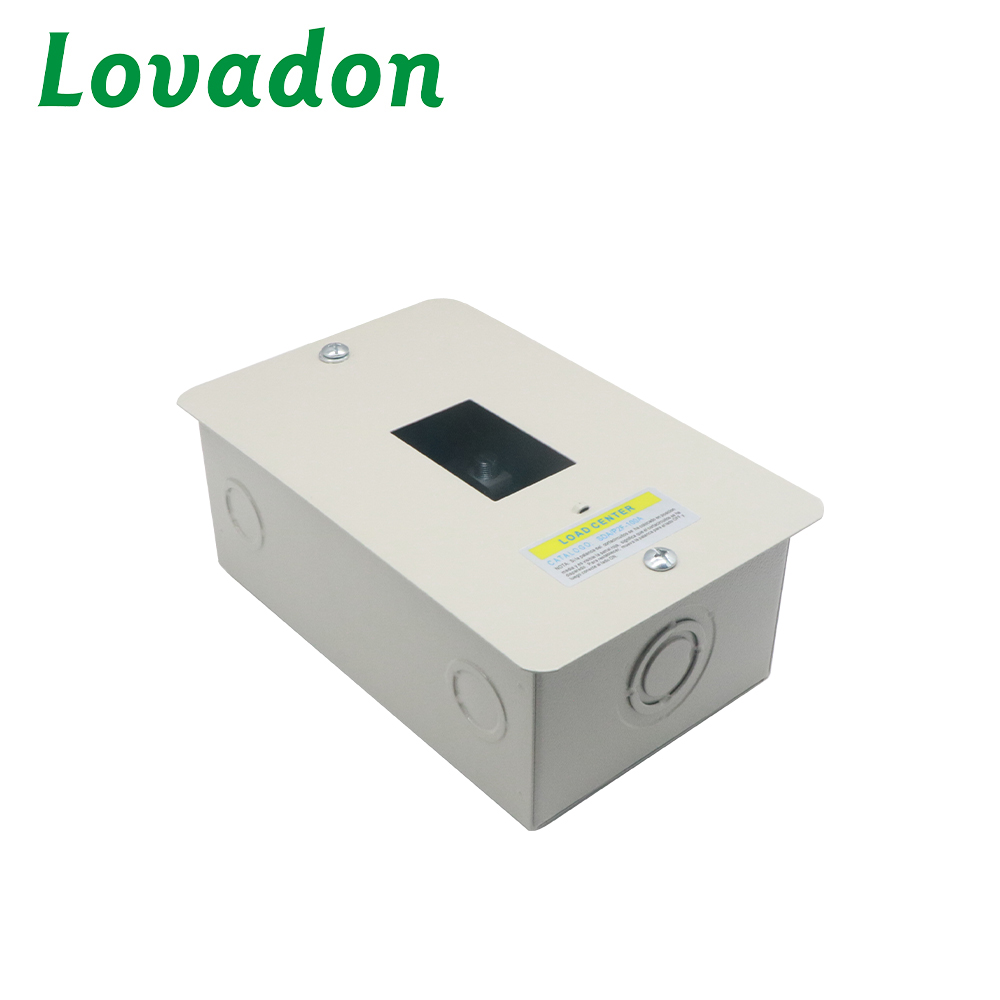

General

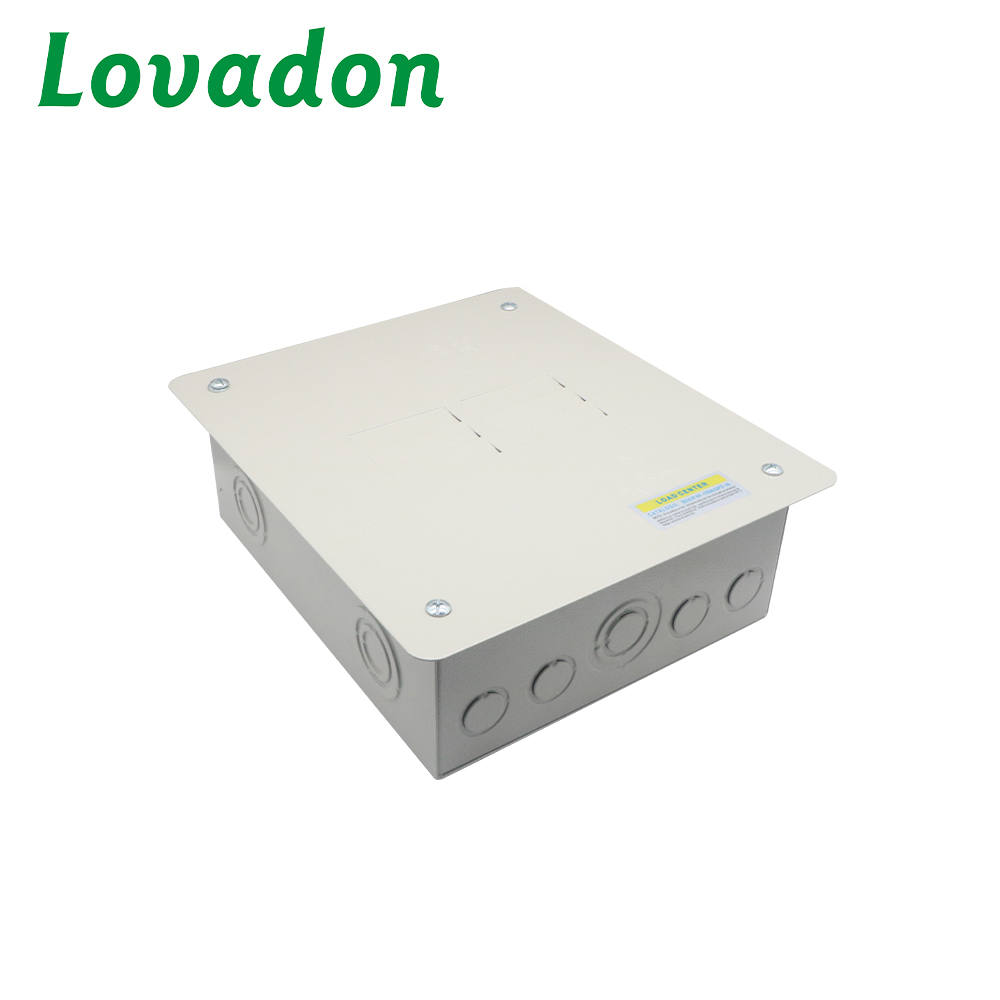

QQL series Load Centers have been designed for safe,reliable distribution and control of electrical power as service entrance equipment in residential,commercial and light industrial premises.They are available in plug-in designs for indoor applications.
Features
● Made out of high quality steel sheet of up to 0.6-1.2mm thickness.
● Matt-finish polyester powder coated paint.
● Knockouts provided on all sides of the enclosure.

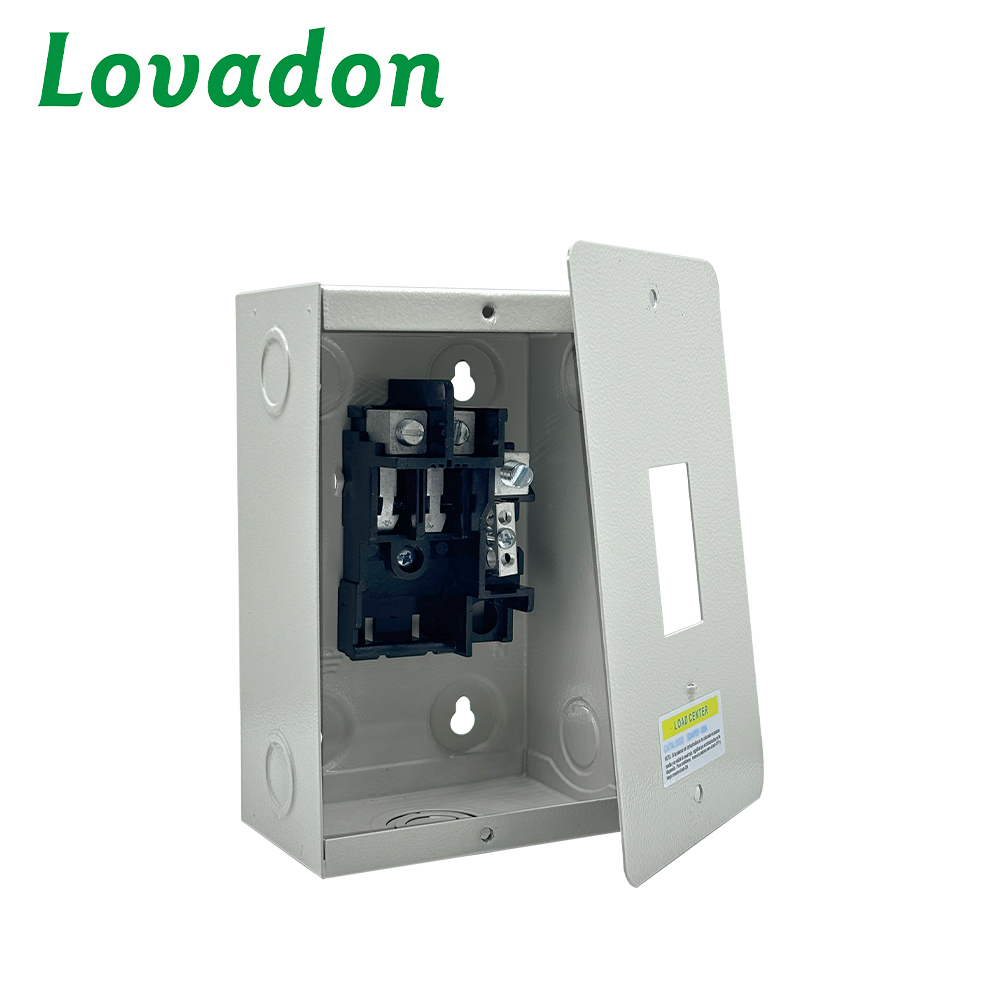

● Accept square D type plug-in circuit breakers.
● Suitable for AC 60Hz,rated voltage to 240V,rated current 100-125A.
● Wider enclosure offers ease or wiring and move heat dissipation.

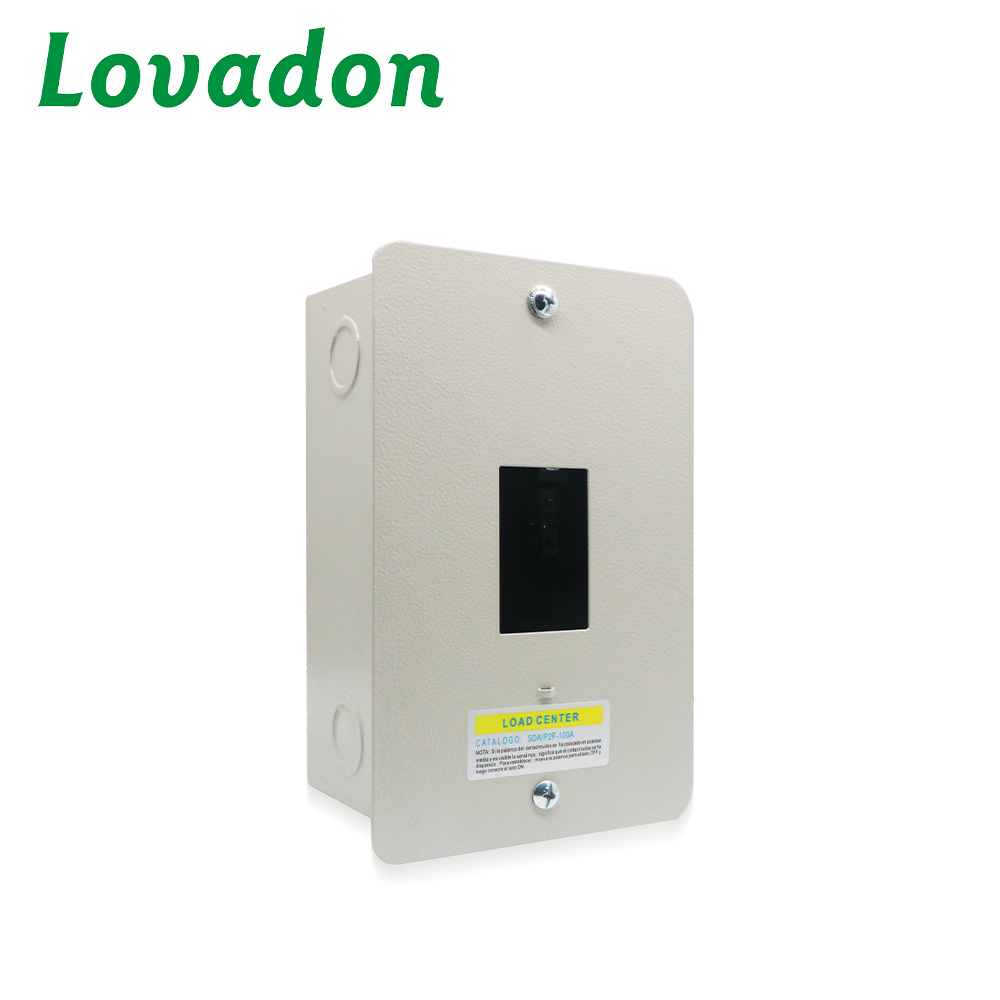

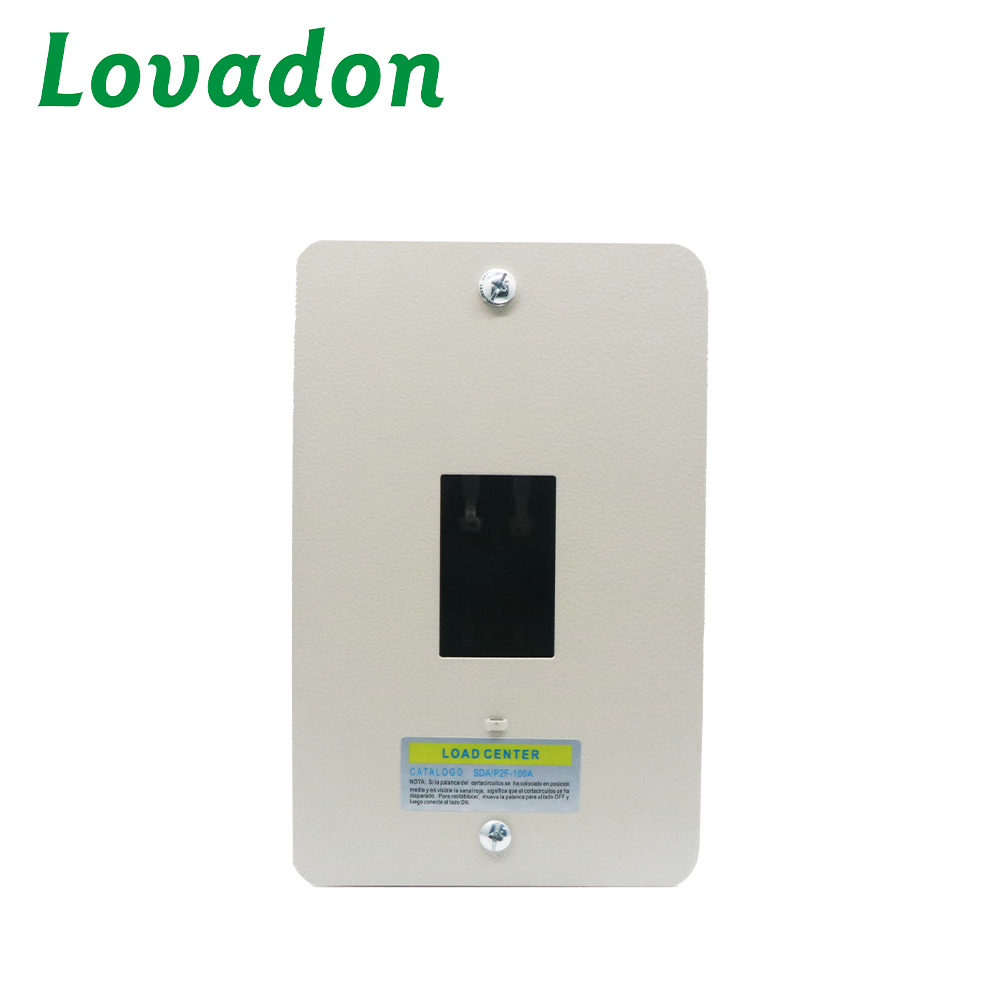

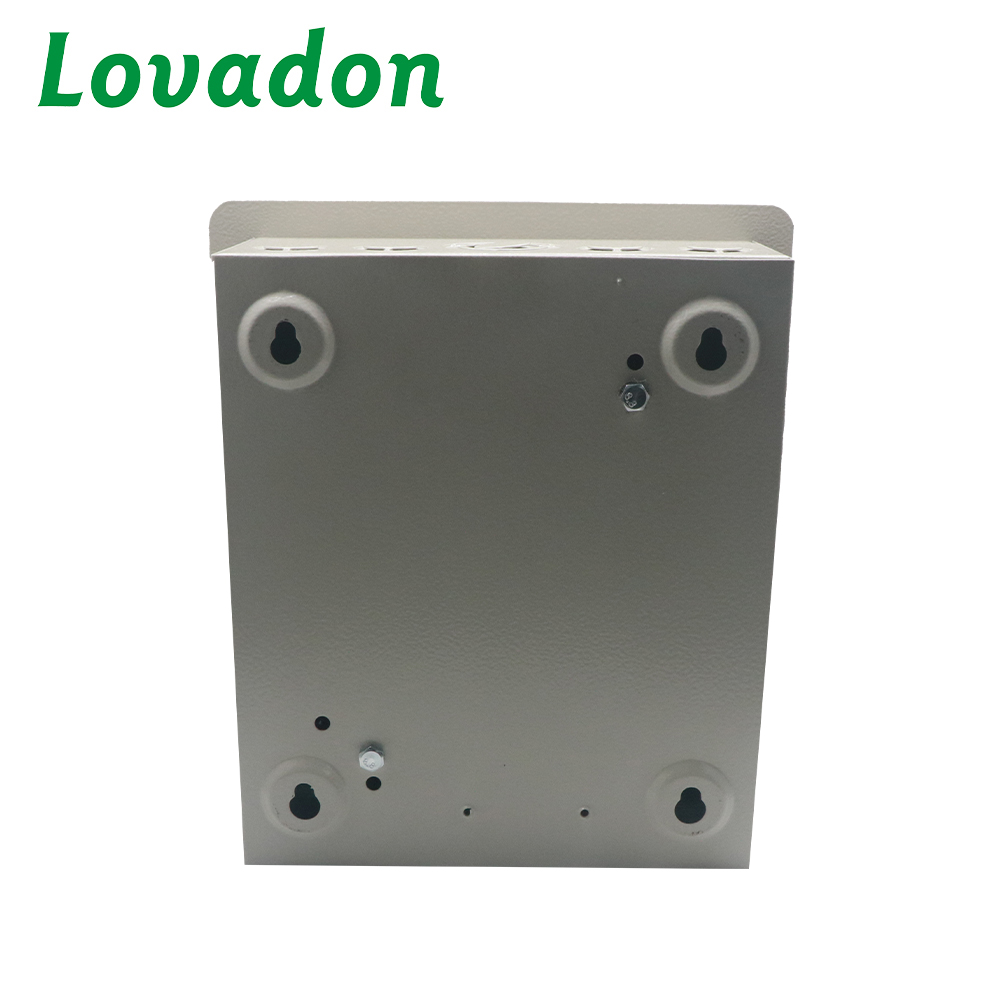

● Flush and surface mounted designs.

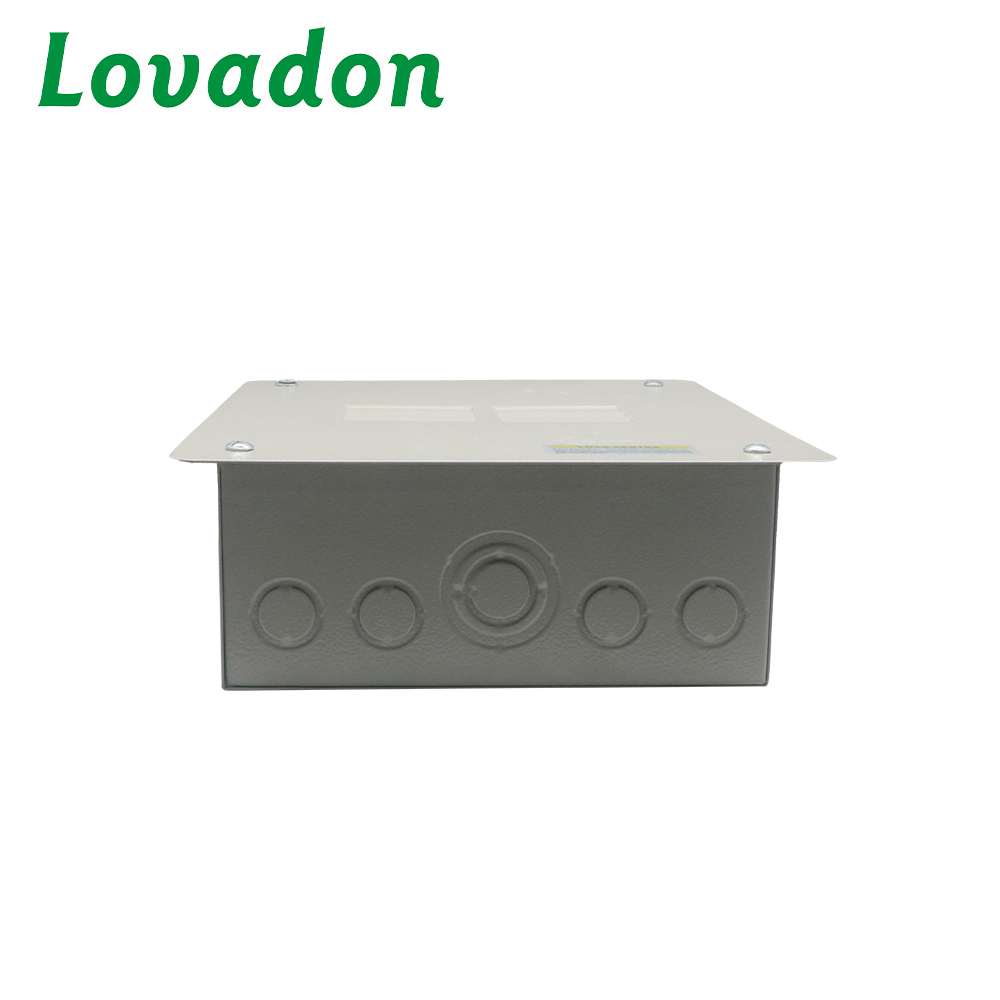

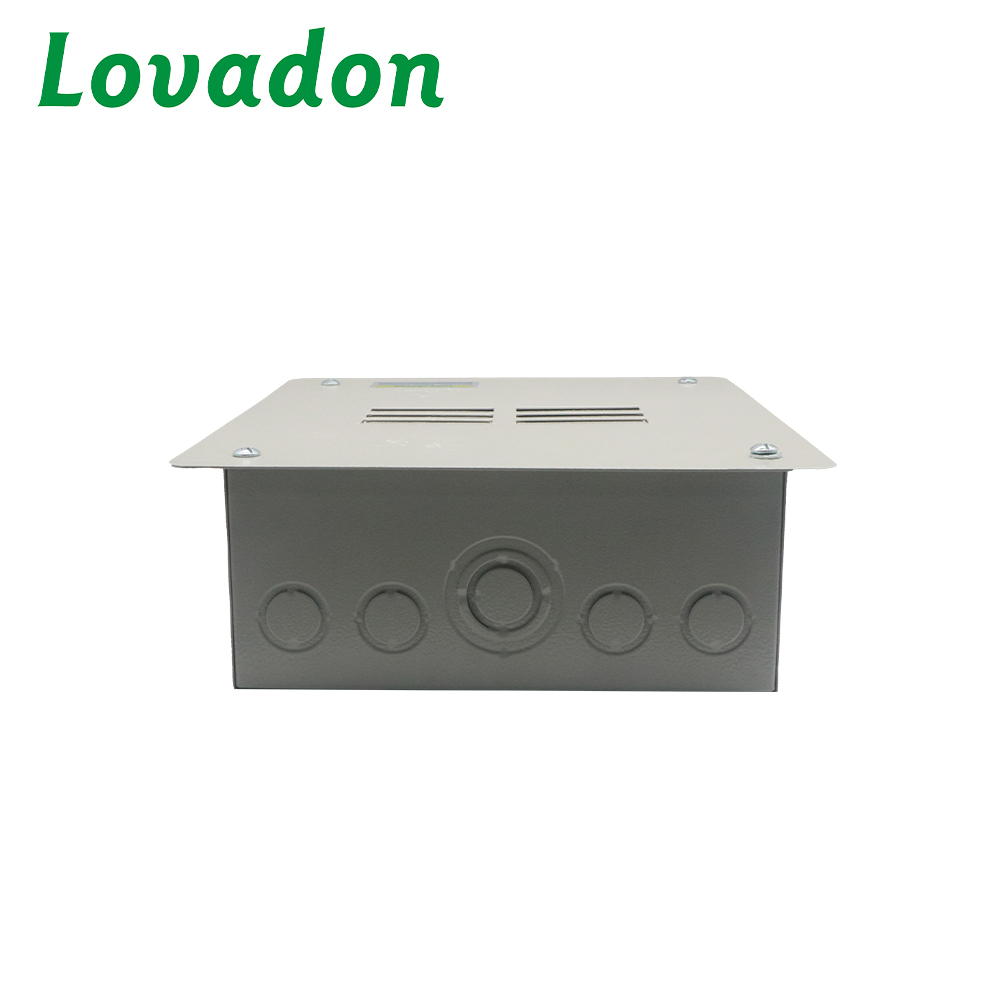

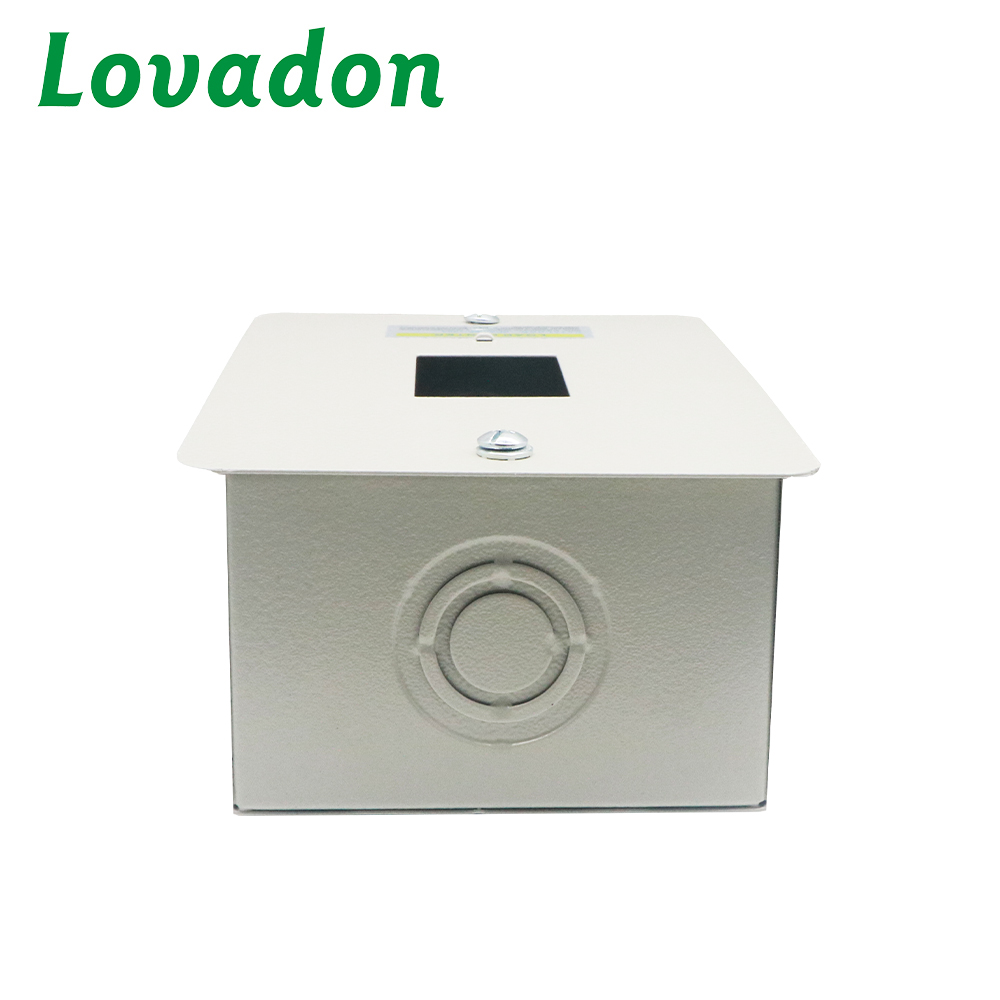

● Knockouts for cable entry are provided on top,bottom of the enclosure.

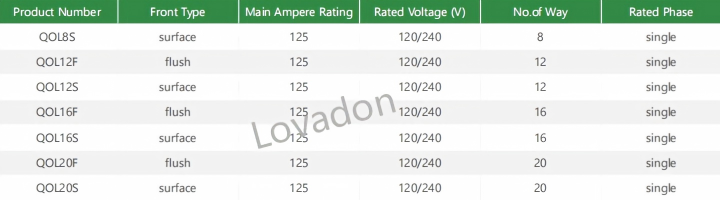

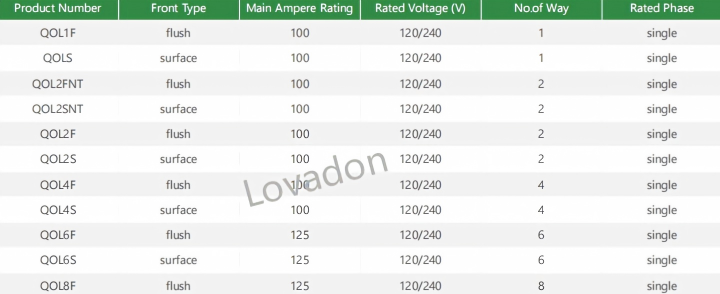

Specifications

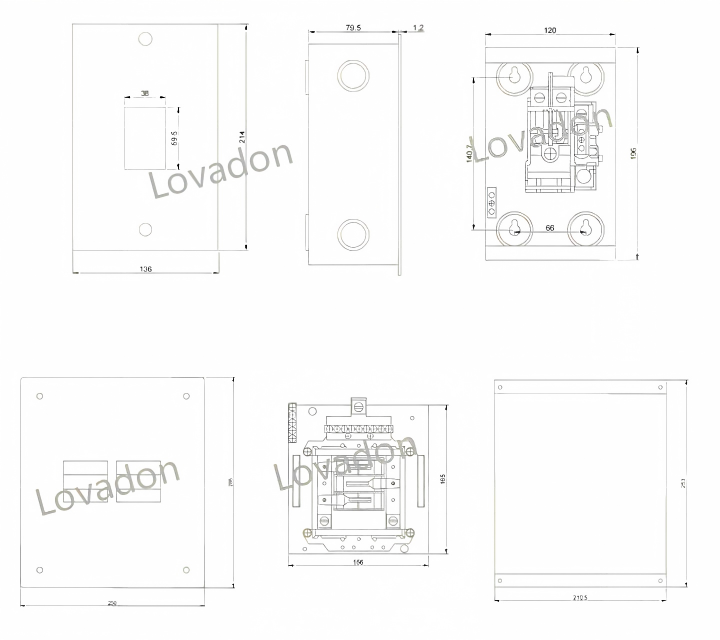

Dimensions (mm)
