Model Number
HAG II Series Plastic Distribution Box
* Material: Insulation, Fire-Proof type refractory material
* Color: White
* HS Code: 8537109090
* Composition Structure:Removable matte blocks to increase the poles. The removable various size holes are available on the box of up and down, bottom in case of connecting wires in and out.
Feature
* HAG II series of surface box is kind of good-looking outline small volume. Easy to install economically modular distribution box. It mainly use for building electric distribution system's installation, matched and house rebuild fitment etc application.

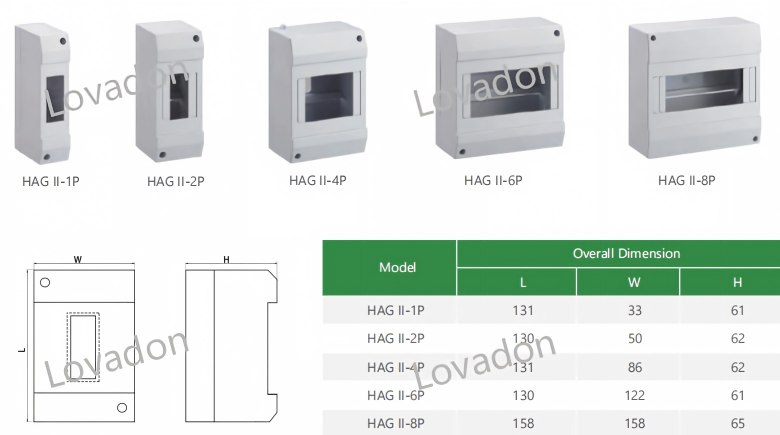

Plastic Box Dimensions
| Specification / Size | L | W | H |

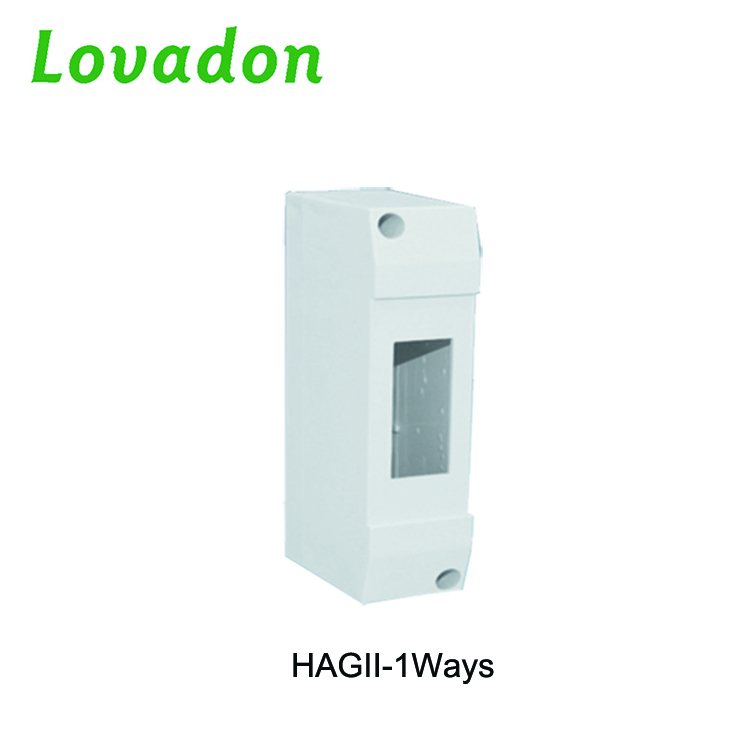

| HAG II-1 Ways | 34 | 130 | 60 |

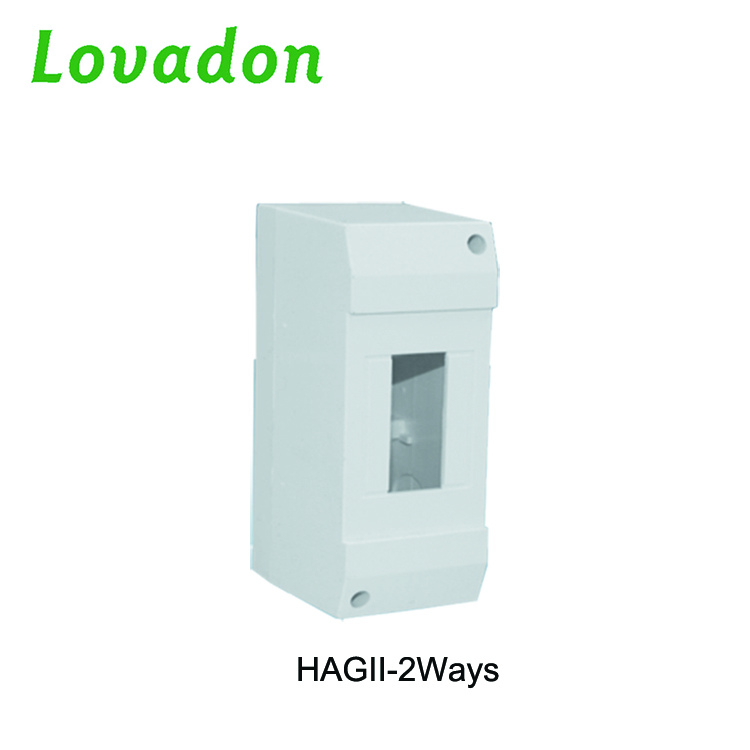

| HAG II-2 Ways | 52 | 130 | 60 |

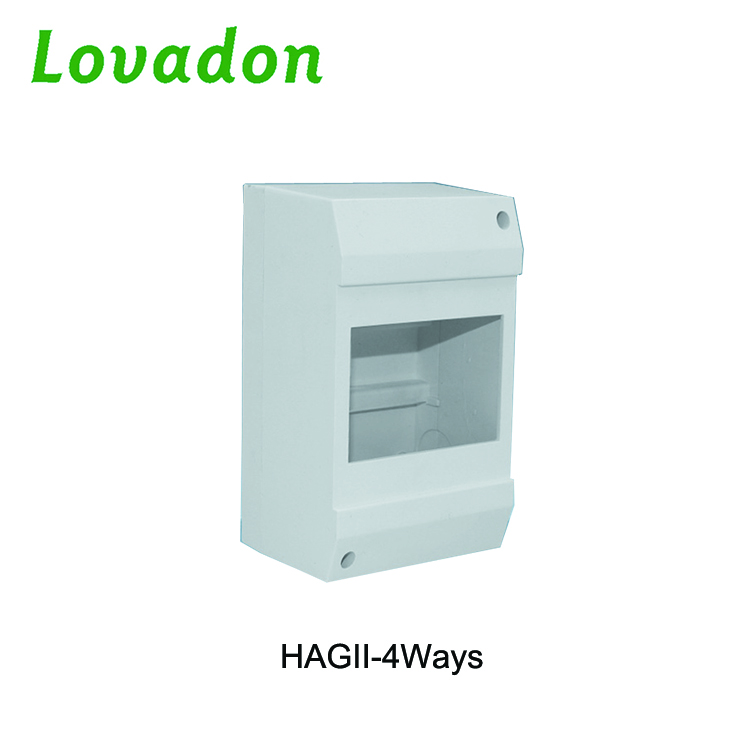

| HAG ll-4 Ways | 87 | 130 | 60 |
| HAG II-6 Ways | 125 | 160 | 60 |

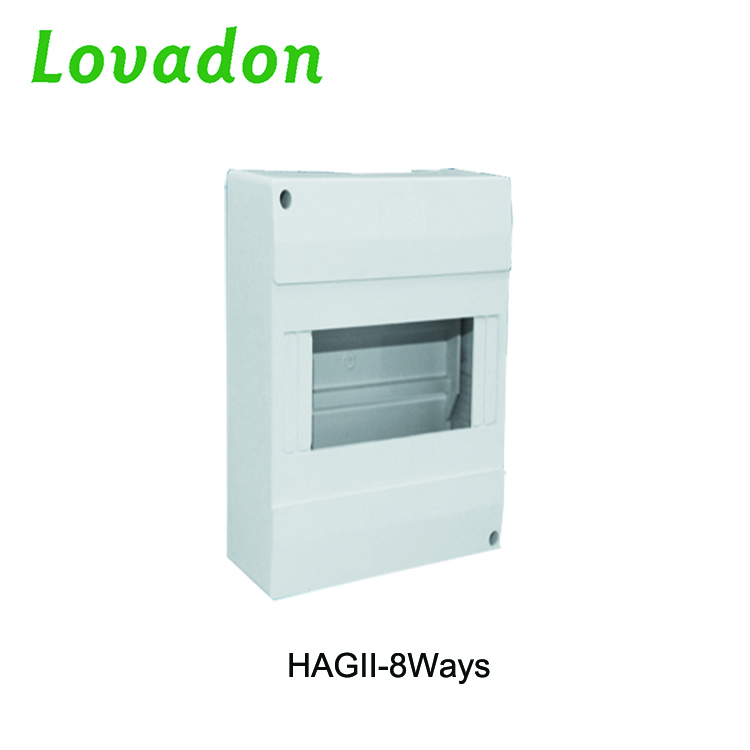

| HAG II-8 Ways | 160 | 160 | 60 |

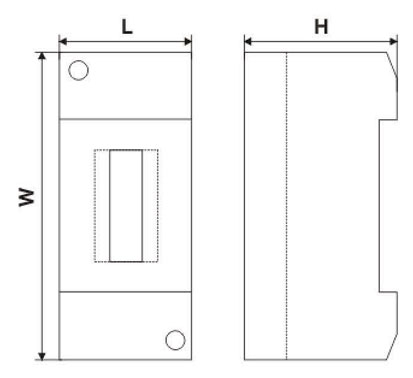

Dimensional drawing
Yueqing Lovadon Electric Co., Ltd.
