Rated current: 63A
Short-circuit making current:10KA
Shell protection grade: IP40
Shell material:ABS polymeric carbon
Color: White

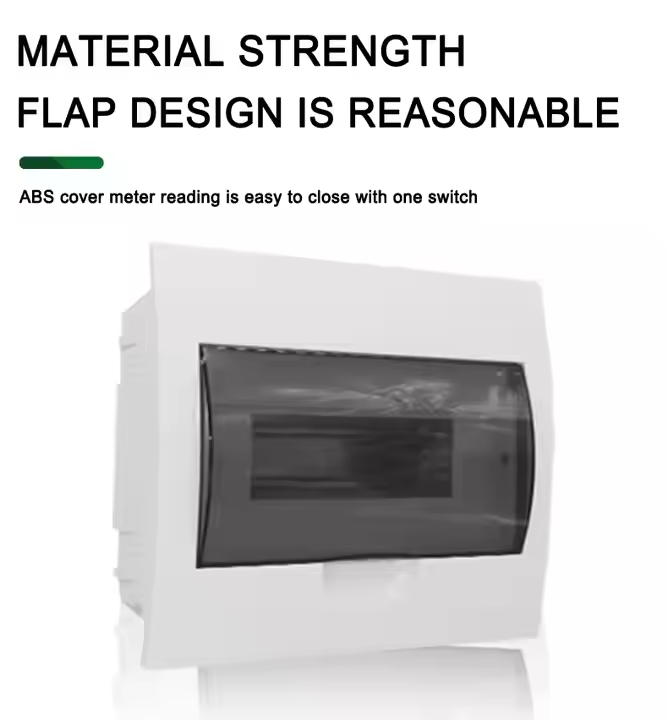

Face covering: Transparent PC material

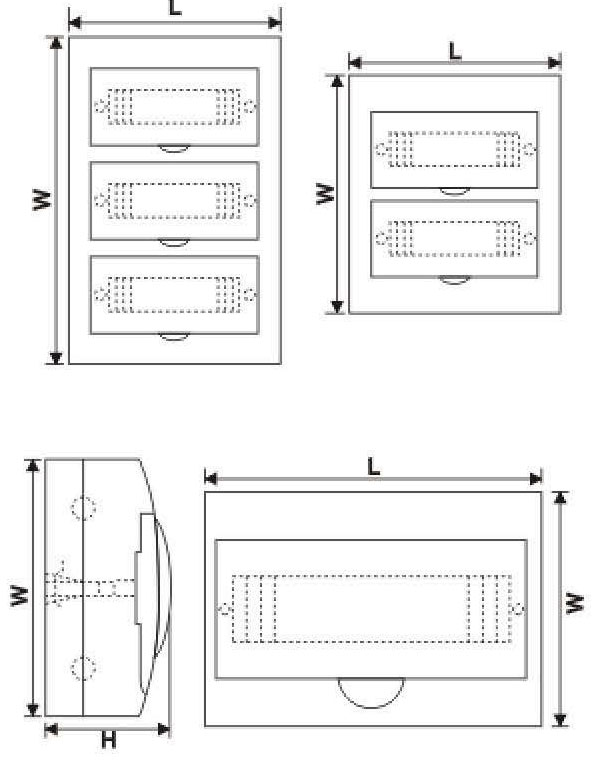

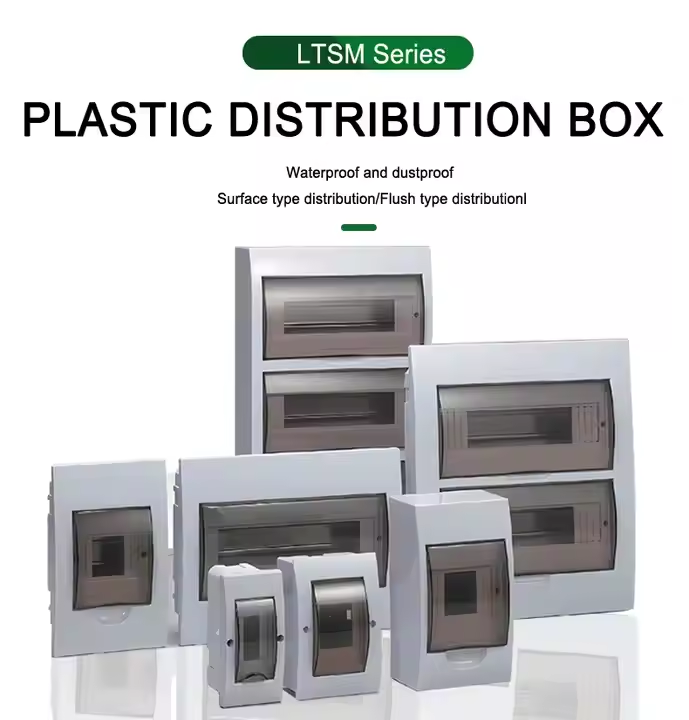

Specification / Size | L | W | H |

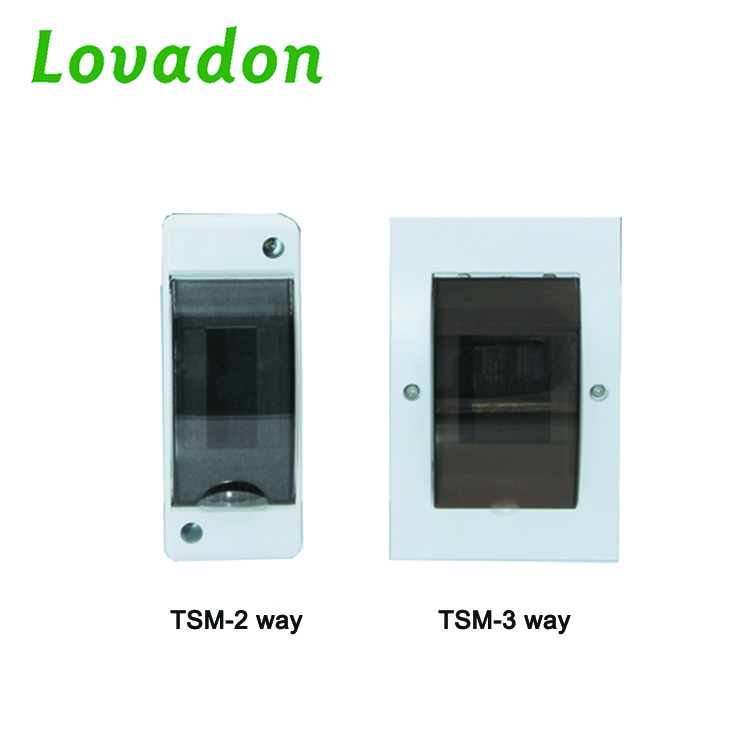

TSM-2 Ways | 49 | 130 | 85 |
TSM-3 Ways | 93 | 148 | 85 |

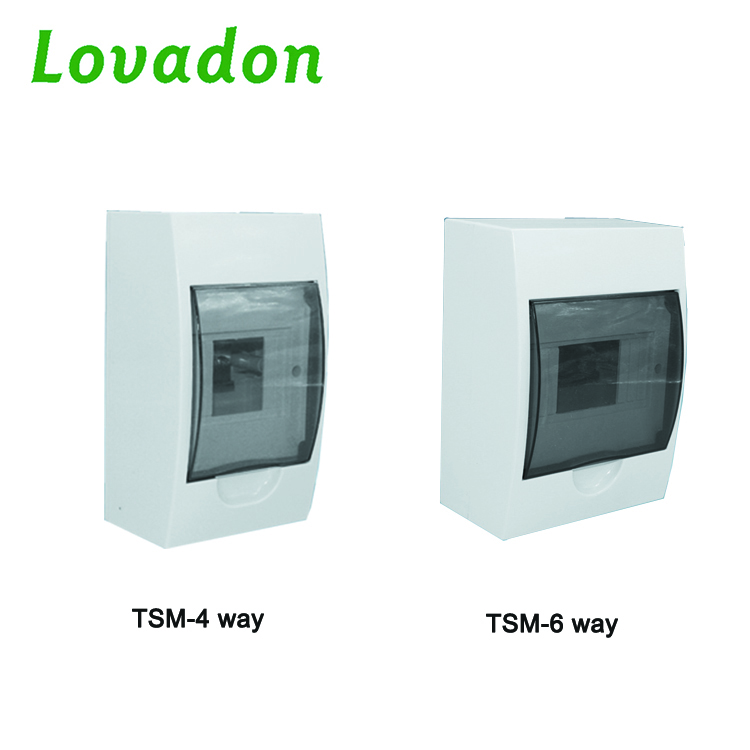

TSM-4 Ways | 112 | 210 | 100 |
TSM-6 Ways | 148 | 210 | 100 |

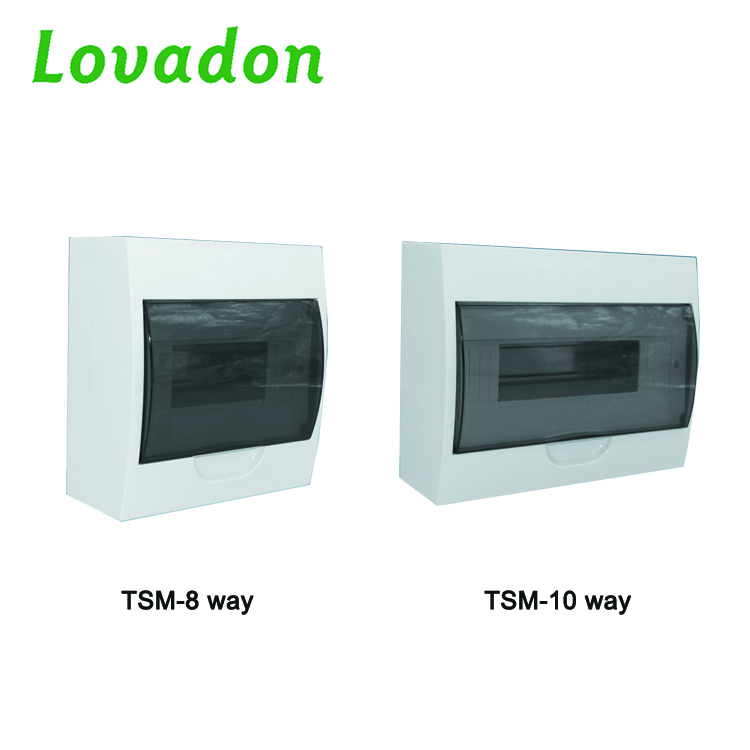

TSM-8 Ways | 184 | 210 | 100 |
TSM-10 Ways | 222 | 210 | 100 |

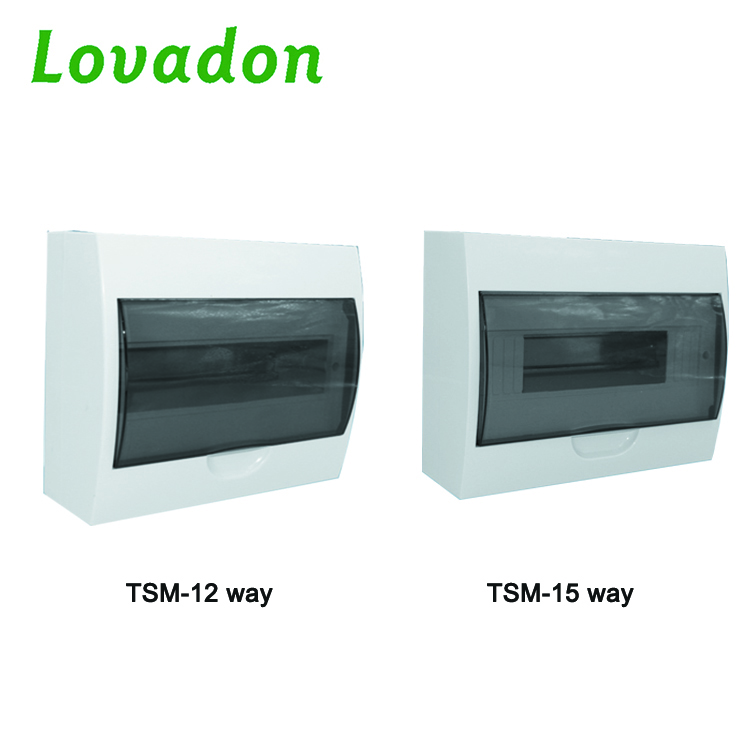

TSM-12 Ways | 256 | 210 | 100 |
TSM-15 Ways | 312 | 210 | 100 |

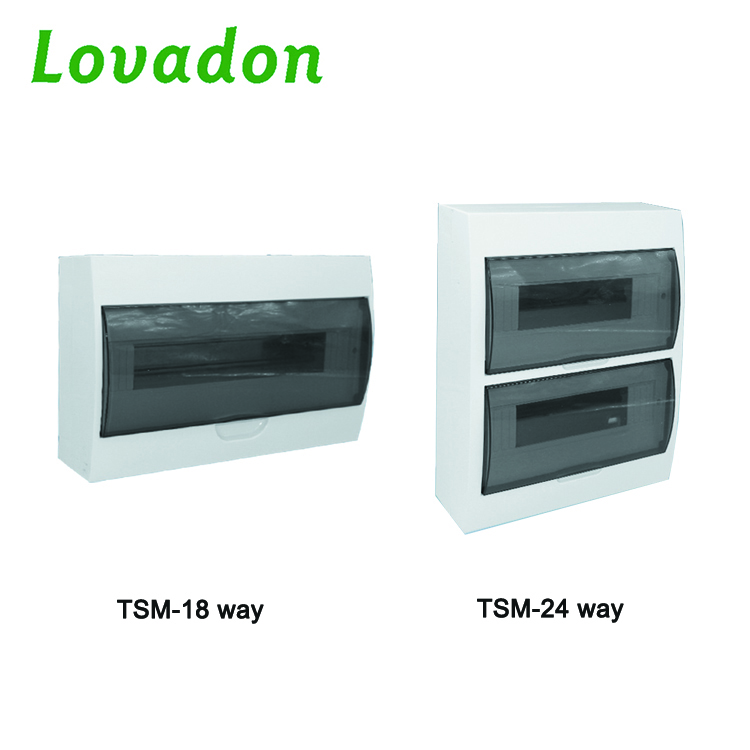

TSM-18 Ways | 364 | 222 | 100 |
TSM-24 Ways | 270 | 325 | 100 |

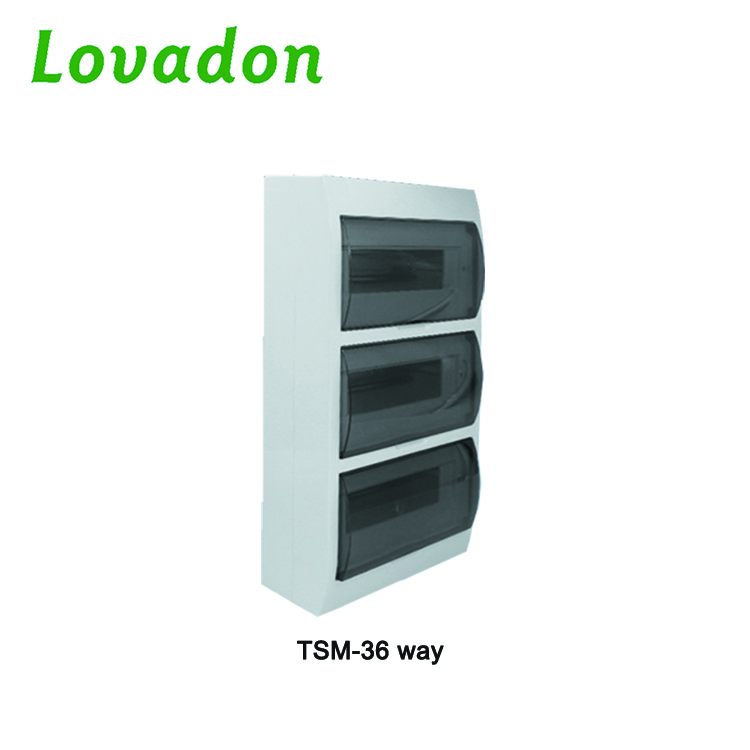

TSM-36 Ways | 305 | 473 | 100 |
