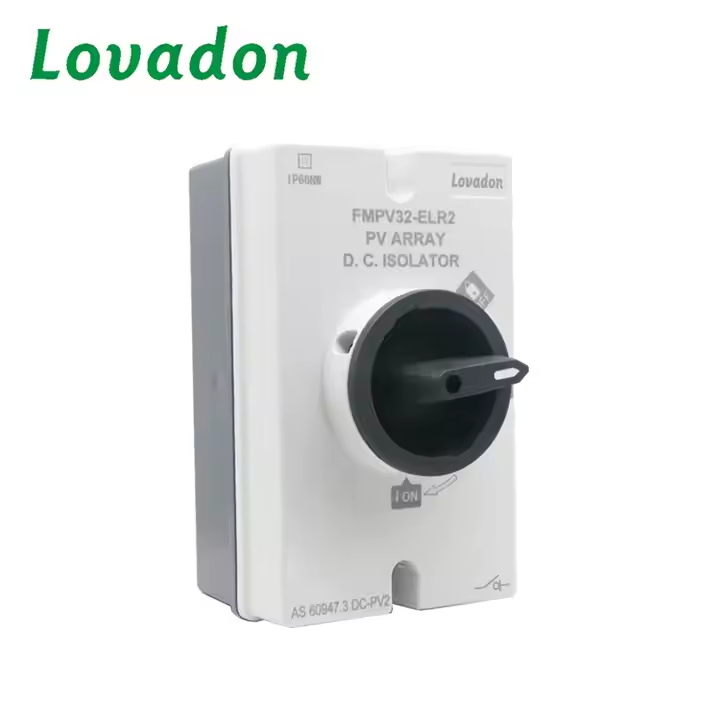

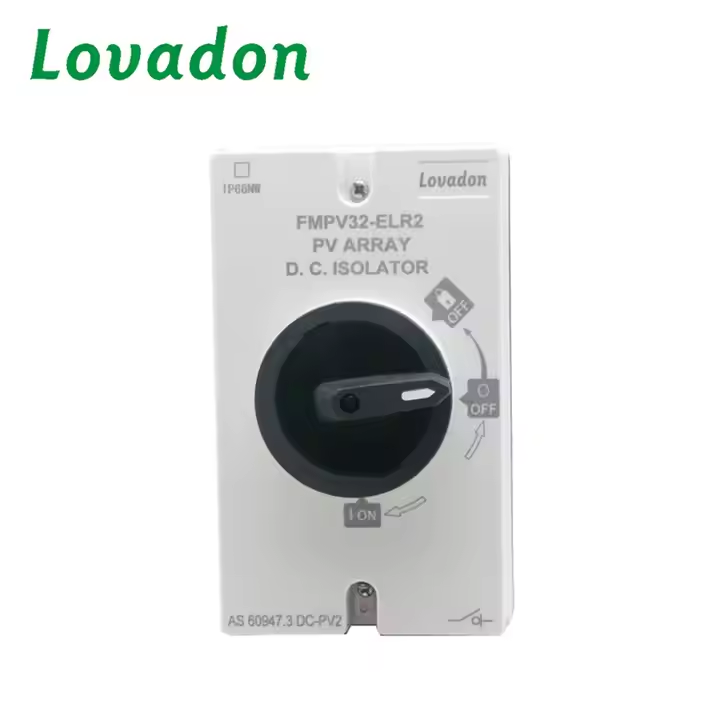

FMPV32 Standard Quality 1200VDC Disconnect Switch Uv Resistant IP66 Rated Enclosure DC Isolator Switch

The FMPV32 model, with an IP66 rating, features types FMPV16-ELR2, FMPV25-ELR2, and FMPV32-ELR2. It is suitable for DC-PV2/DC-PV1/DC-21 B applications and has a 4P pole configuration. The rated frequency is DC, with operational voltages ranging from 300V to 1200V. It can withstand short-term currents of 1kA for 1 second. The ingress protection enclosure is IP66, with a storage temperature range of -40°C to +85°C. It has a pollution de···
Request A Quick Quote

General

The FMPV32 model, with an IP66 rating, features types FMPV16-ELR2, FMPV25-ELR2, and FMPV32-ELR2. It is suitable for DC-PV2/DC-PV1/DC-21 B applications and has a 4P pole configuration. The rated frequency is DC, with operational voltages ranging from 300V to 1200V. It can withstand short-term currents of 1kA for 1 second. The ingress protection enclosure is IP66, with a storage temperature range of -40°C to +85°C. It has a pollution degree of 3 and is certified by IEC60947-3 and AS60947.3.

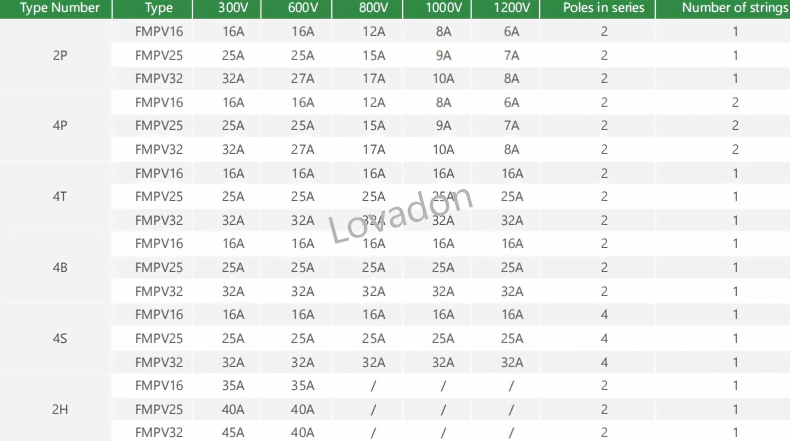

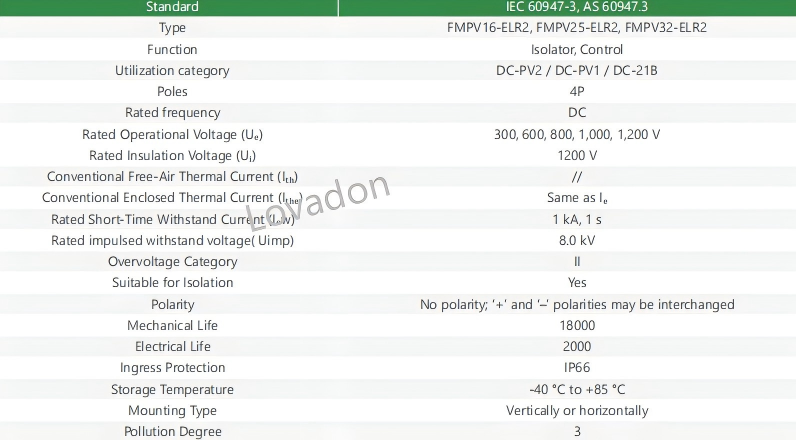

Technical Parameters

Model NumberFMPV32
IP levelIP66
Utilization categoryDC-PV2/DC-PV1 /DC-21 B
Pole4P
Rated frequencyDC
Rated operational voltage (L/e)300V, 600V, 800V, 1000V, 1200V
Rated short-time withstand currentf lew)1kA, 1s
ingress protection EnclosureIP66
Storge temperature-40°C -+85 °C
Pollution degree3
CertificationIEC60947-3, AS60947. 3
