  • IDK 4P 230V Miniature Circuit Breaker 25A 40A 63A DC Low Current Rccb Type for PV System with 10KA Breaking Capacity
  • IDK 4P 230V Miniature Circuit Breaker 25A 40A 63A DC Low Current Rccb Type for PV System with 10KA Breaking Capacity
Residual current circuit breaker

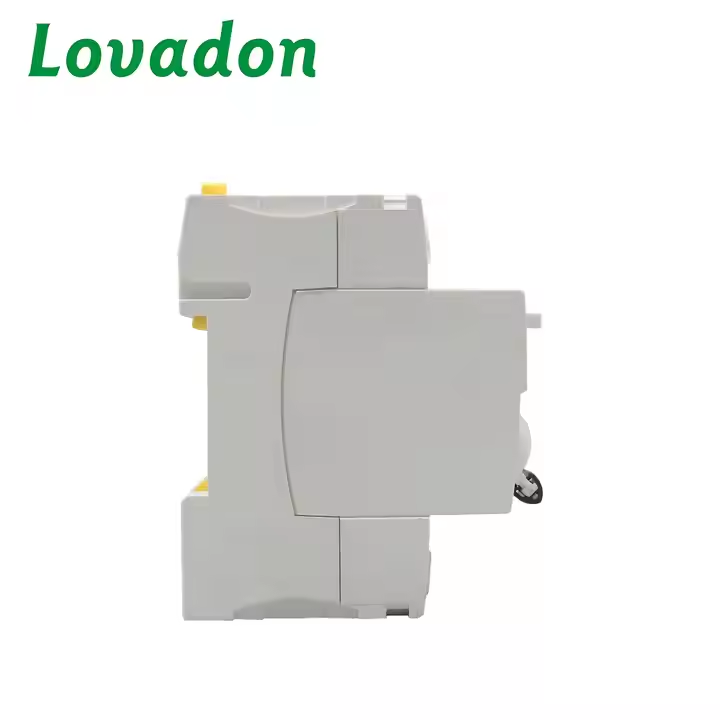

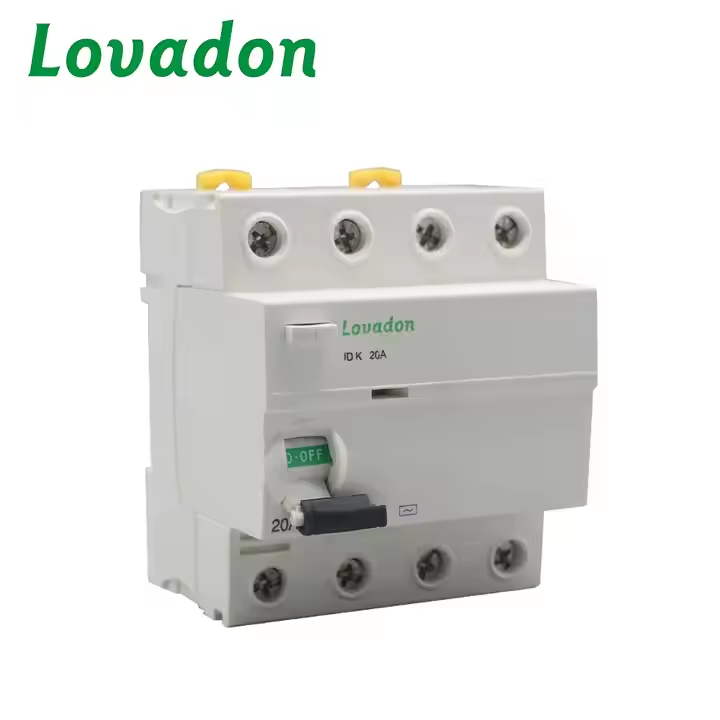

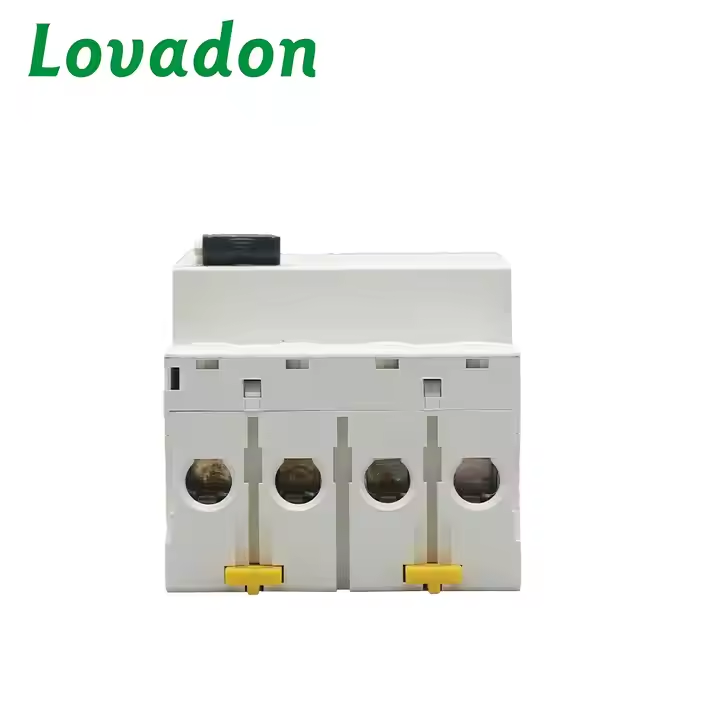

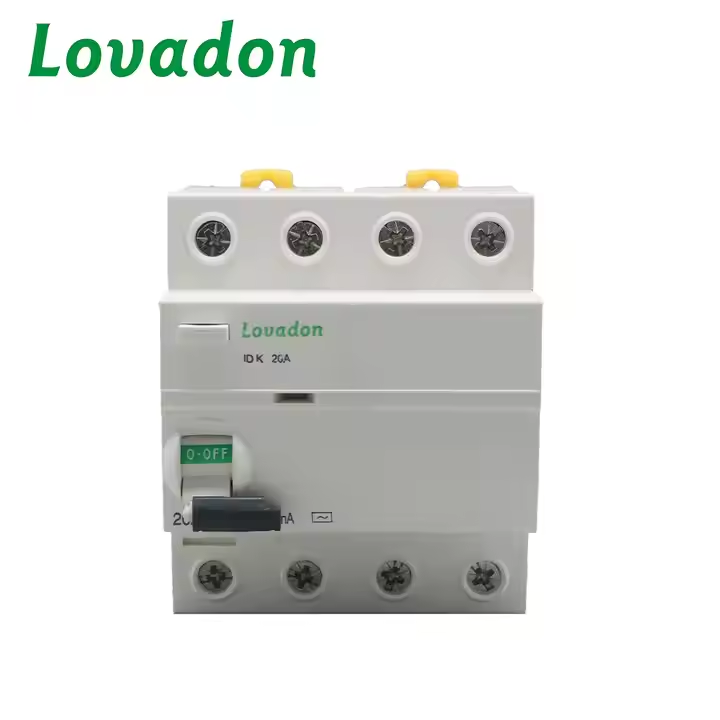

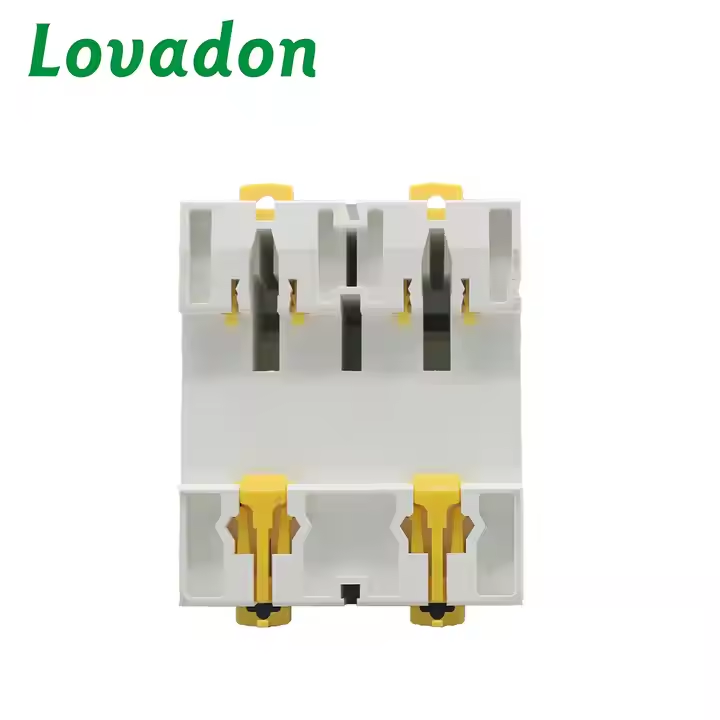

IDK 4P 230V Miniature Circuit Breaker 25A 40A 63A DC Low Current Rccb Type for PV System with 10KA Breaking Capacity

The Residual Current Circuit Breaker (RCCB) features a ‌model number IDK 4P‌. It is ‌rated for 50/60Hz‌, with ‌voltage ratings of 230/400V‌ and ‌current ratings of 25A/40A/63A‌. Certified with ‌ISO9001‌, it meets the ‌IEC61008-1 standard‌. The RCCB boasts a ‌mechanical life of 20,000 times‌ and has a ‌SCPD fuse rating of 10kA‌. It is suitable for a ‌pollution degree of 2‌, ensuring reliable protection.Technical Paramet···
Request A Quick Quote

General

The Residual Current Circuit Breaker (RCCB) features a ‌model number IDK 4P‌.  It is ‌rated for 50/60Hz‌, with ‌voltage ratings of 230/400V‌ and ‌current ratings of 25A/40A/63A‌.  Certified with ‌ISO9001‌, it meets the ‌IEC61008-1 standard‌.  The RCCB boasts a ‌mechanical life of 20,000 times‌ and has a ‌SCPD fuse rating of 10kA‌.  It is suitable for a ‌pollution degree of 2‌, ensuring reliable protection.

Technical Parameters

Model NumberIDK 4P
Rated current In25A/40A/63A
Product nameResidual Current Circuit Breaker RCCB
Rated voltage Ue230/400V
CertificateISO9001
SCPD fuse10kA
Rated frequency50/60 Hz
Mechanical Life20000 Times
Pollution degree2
TypeRCCB
StandardIEC61008-1
