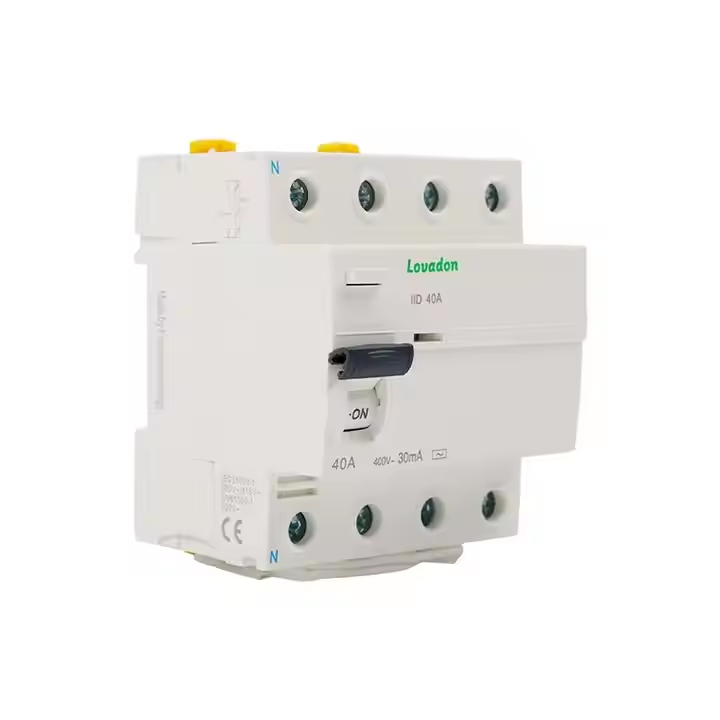

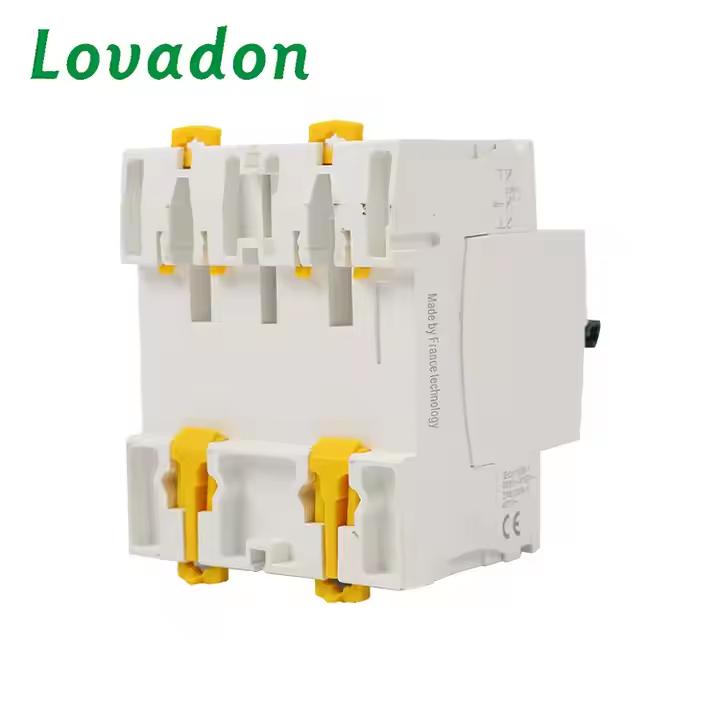

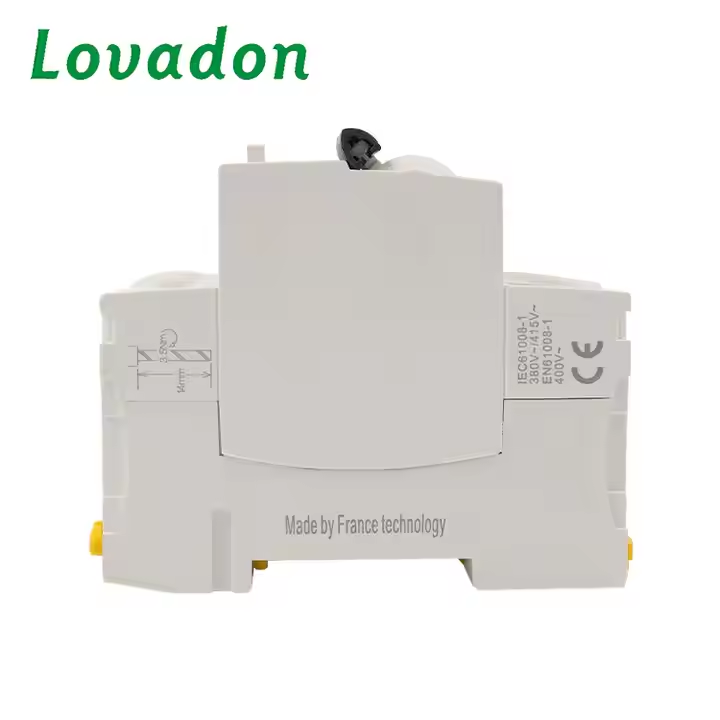

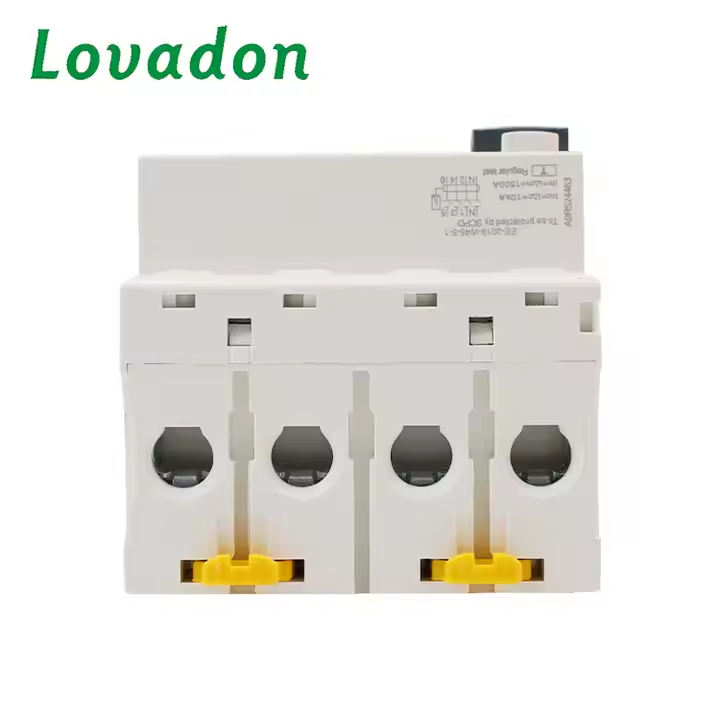

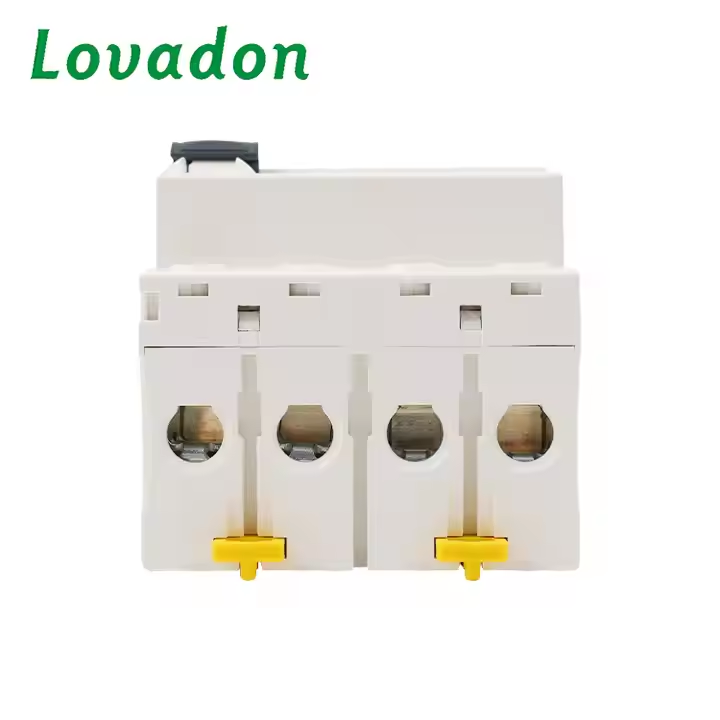

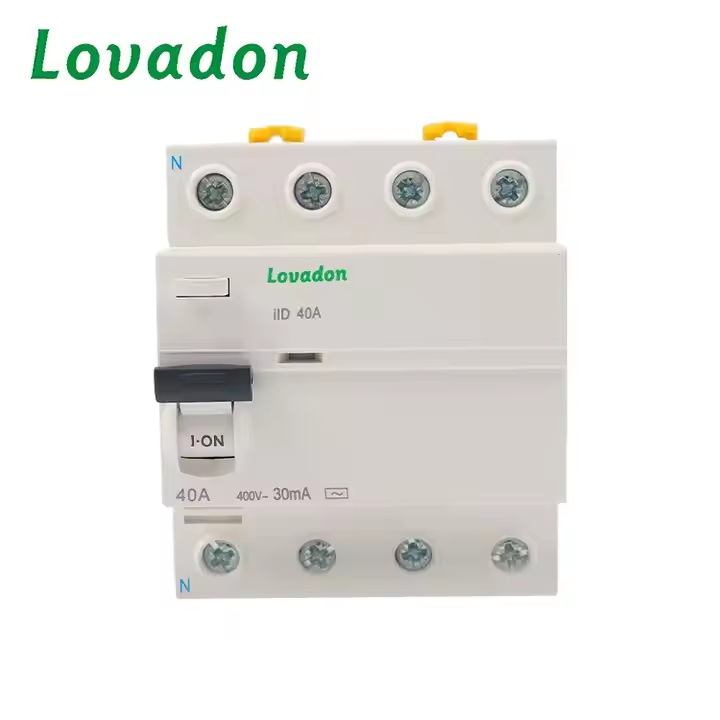

General
Residual Current Circuit Breakers (RCCBs) are vital safety devices that detect current leakage (typically 30mA-300mA) and instantly cut power to prevent electric shocks or fires. Compliant with IEC61008-1, they offer 10kA short-circuit protection and operate at 230/400V, 50/60Hz. Widely used in homes/industries for grounding fault protection.
Technical Parameters
| Standard | IEC61008-1 |
| Electrical fcatures | Type(wave form of the earth leakage sensed) |
| AC,A |
| Mechanical features | Rated current In | A | 25,40,63 |
| Poles | P | 2,4 |
| Rated voltage Ue | V | 230/400 |
| Rated sensitivity I△n | A | 0.03,0.1,0.3,0.5 |
| Insulation voltage Ui | V | 500 |
| Rated residual making and |
|
|
| breaking capacity I△m | A | 500(In=25A/40A) |
| 630(In=63A) |
|
|
| Short-circuit current I△c | A | 6000/10000 |
| SCPD fuse | A | 10000 |
| Break time under I△n | s | ≤0.1 |
| Rated frequency | Hz | 50/60 |
| Rated impulse withstand voltage(1.2/50)Uimp | V | 6000 |
| Dielectric test voltage at ind Freq for 1 min | kV | 2.5 |
| Pollution degree |
| 2 |
| Electrical life | t | 6000 |
| MechanicaI Iife | t | 20000 |
| Fault current indicator |
| Yes |
| Protection degree |
| IP20 |
| Ambient temperature |
|
|
| (with daily average≤ 35℃ ) | ℃ | -5~+40 |
