General

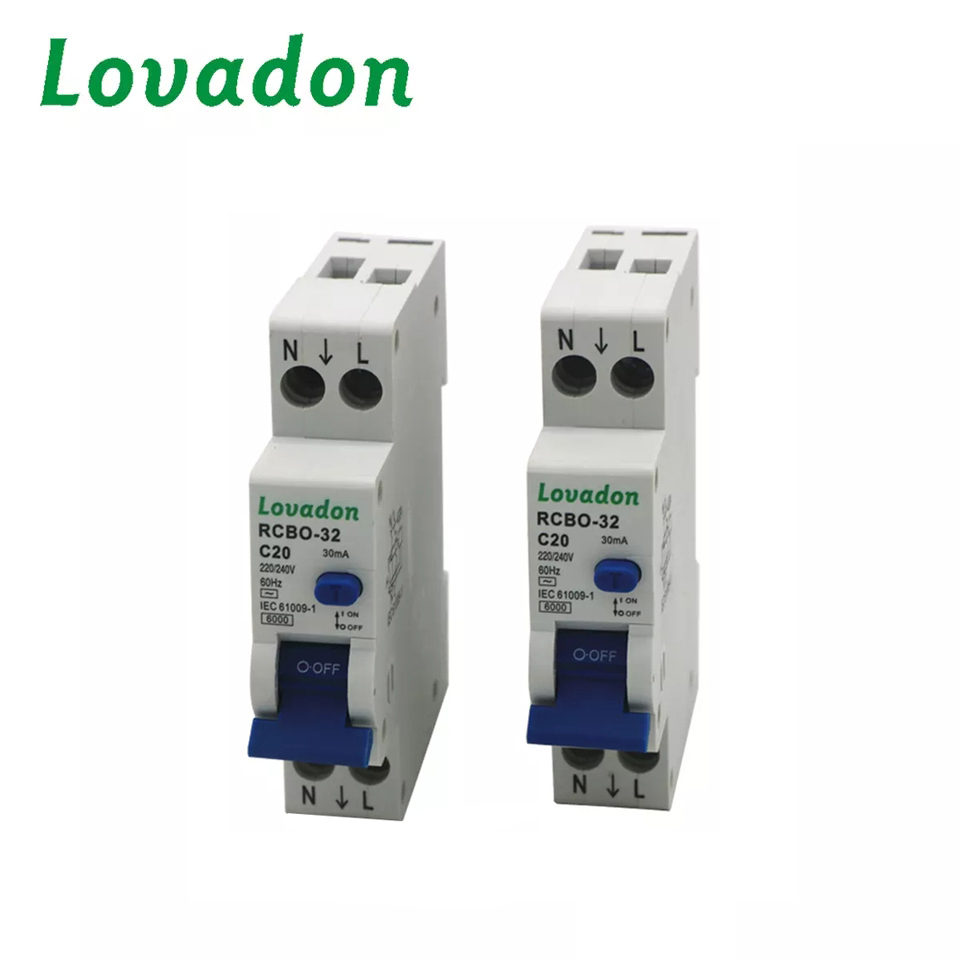

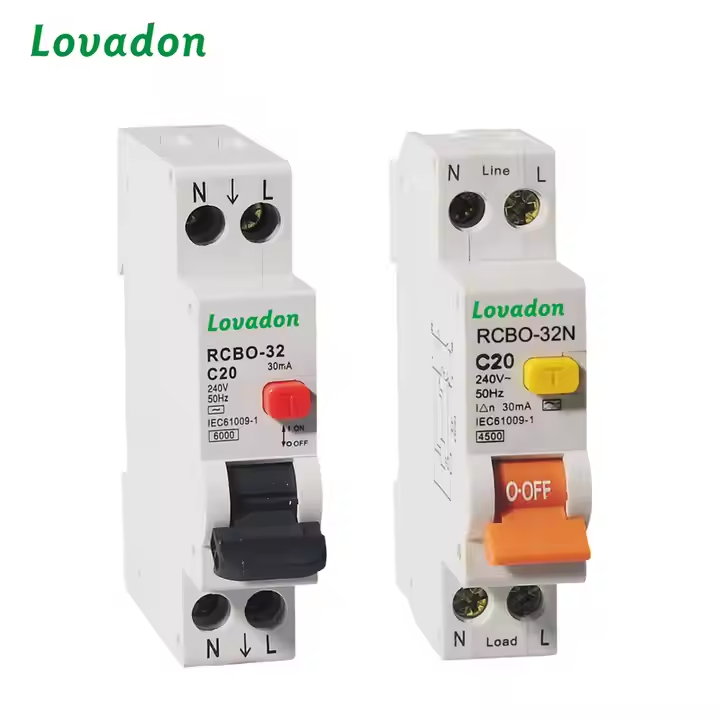

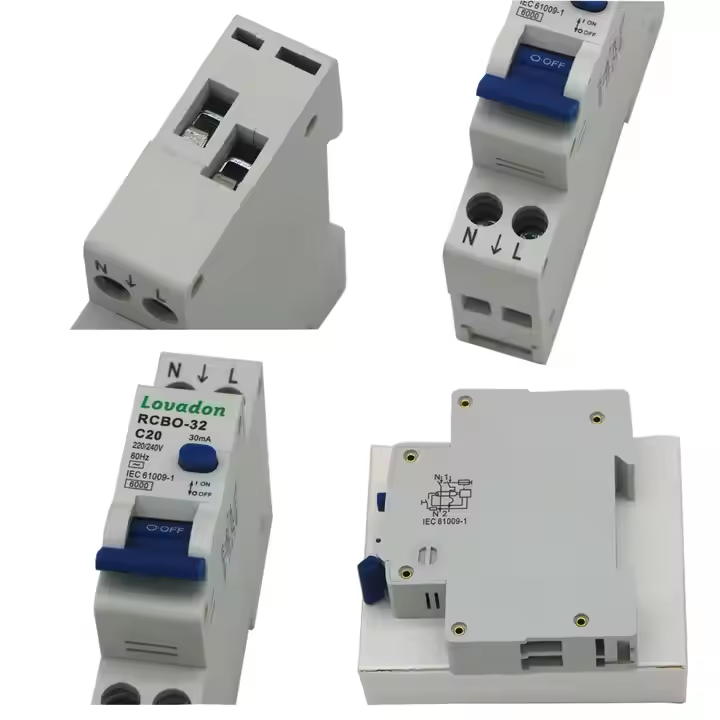

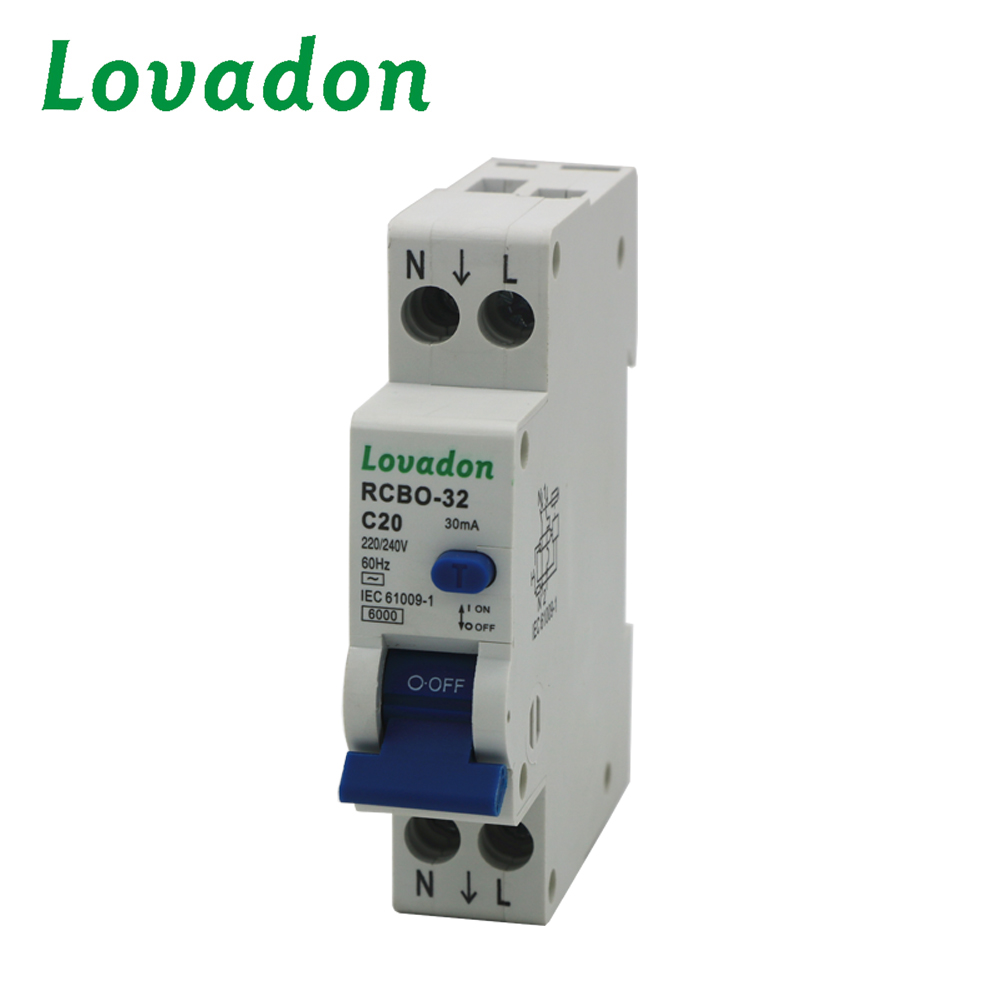

The RCBO-32/RCBO-32N complies with GB16917.1 and IEC61009 standards. It features a 1P+N pole configuration with rated currents ranging from 6A to 32A. The rated operating currents are 30mA, 100mA, and 300mA. It operates at AC240V with a residual operating current scope of 0.5lΔn-In and a residual current off-time of ≤0.3s. It's of Type A, AC with an ultimate short-circuit breaking capacity of 6000A.The endurance is ≥6000 times, ensuring long-term reliability. The terminal protection is rated IP20 for safety.

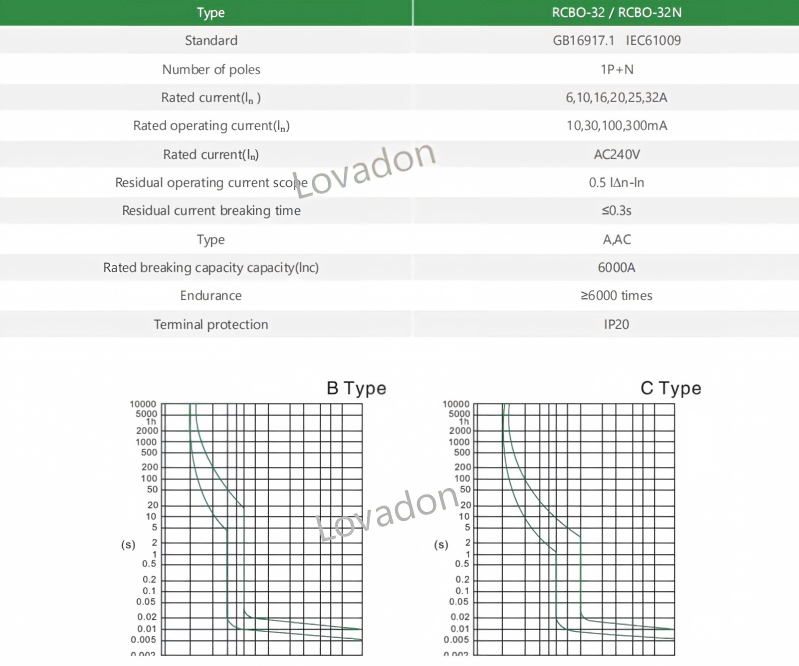

Technical Parameters
| Type | RCBO-32 / RCBO-32N |
| Standard | GB16917.1 IEC61009 |
| Number of poles | 1P+N |
| Rated current(ln) | 6,10,16,20,25,32A |
| Rated operating current(ln) | 30,100,300mA |
| Rated current(ln) | AC240V |
| Residual operating current scope | 0.5 l∆n-ln |
| Residual current off-time | ≤0.3s |
| Type | A,AC |
| Ultimate short-circuit breaking capacity(lnc) | 6000A |
| Endurance | ≥6000 times |
| Terminal protection | IP20 |
