General

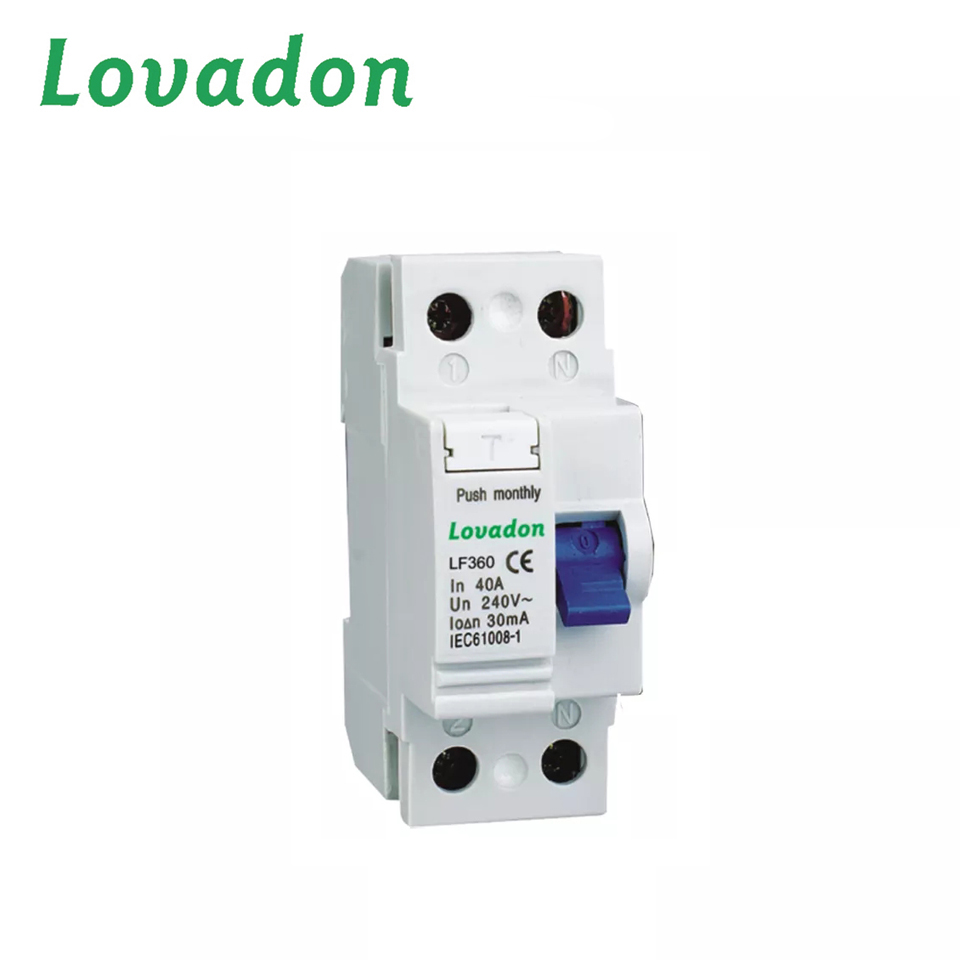

The Residual Current Circuit Breaker RCCB features a model number LF360 4P. It has rated currents ranging from 16A to 100A and a rated voltage of 230/400V. The device is ISO9001 certified and comes in a white color. It operates at a frequency of 50/60 Hz with a mechanical life of 20,000 times. The RCCB offers IP20 protection and is available in 2/4-pole configurations. It is suitable for pollution degree 2 environments.

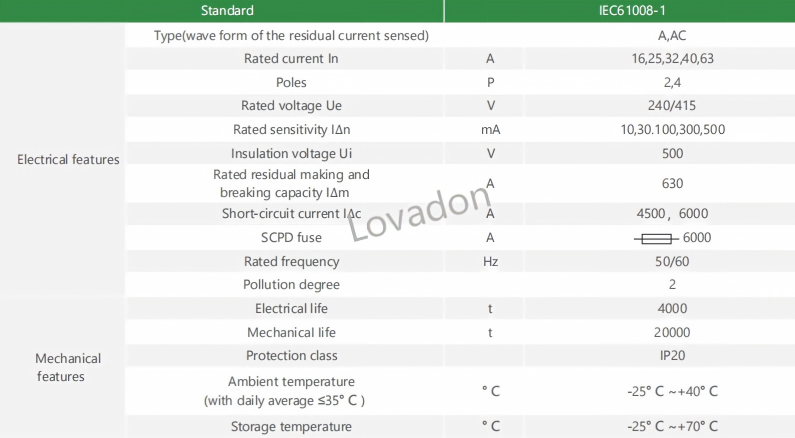

Technical Parameters
| Standard | IEC60898,BS 3871-Pt1 |
| Electrical fcatures | Type(wave form of the earth leakage sensed) |
| A,AC |
| Rated current In | A | 16,25,32,40,63 |
| Poles | P | 2,4 |
| Rated voltage Ue | V | 240/415 |
| Rated sensitivity I△n | A | 0.01,0.03,0.1,0.3,0.5 |
| Insulation voltage Ui | V | 500 |
| Rated residual making and |
|
|
| breaking capacity I△m | A | 630 |
| Short-circuit current I△c | A | 45,006,000 |
| SCPD fuse | A | 6000 |
| Rated frequency | Hz | 50/60 |
| Pollution degree |
| 2 |
| Mechanical features | Electrical life | t | 4000 |
| MechanicaI Iife | t | 20000 |
| Protection degree |
| IP20 |
| Ambient temperature |
|
|
| (with daily average ≤35℃ ) | ℃ | -25℃ ~+40℃ |
| Storage temperature | ℃ | -25℃ ~+70℃ |
