General

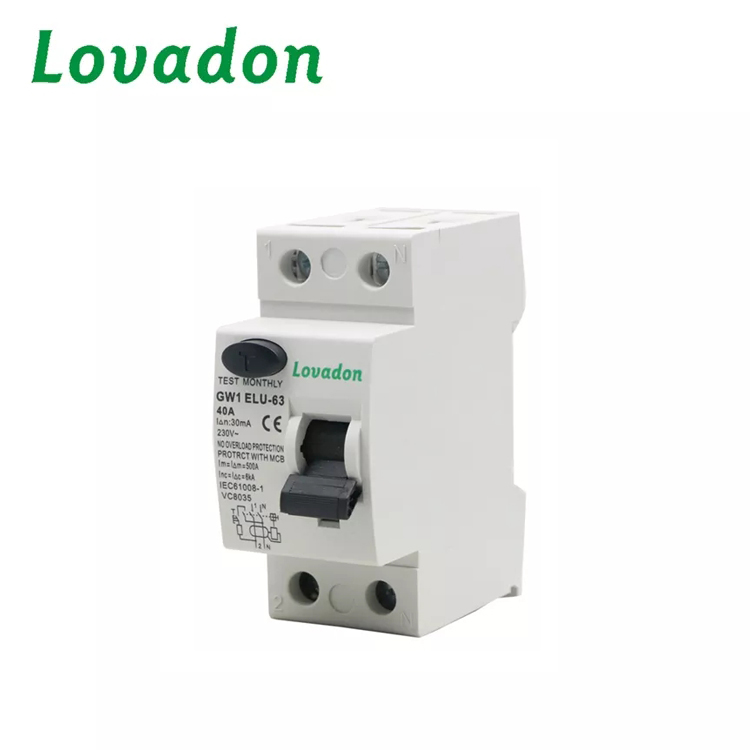

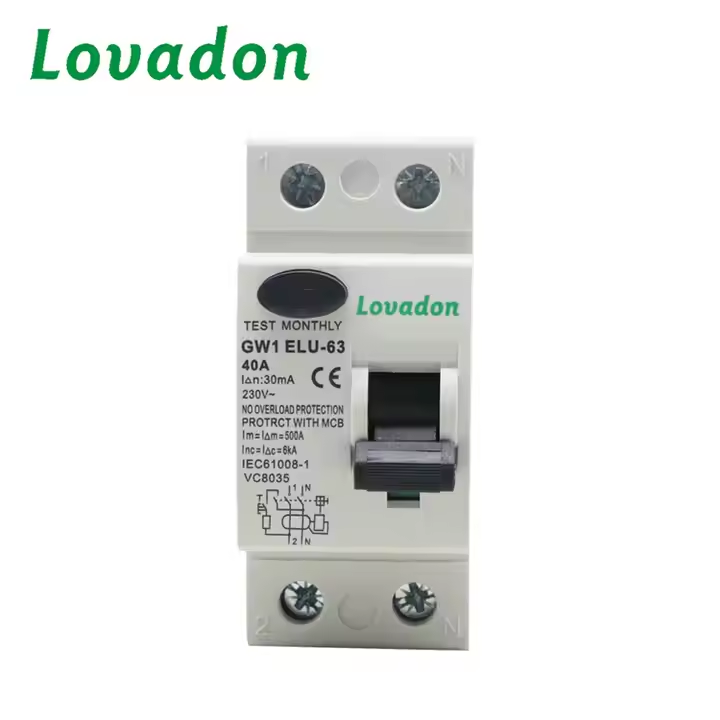

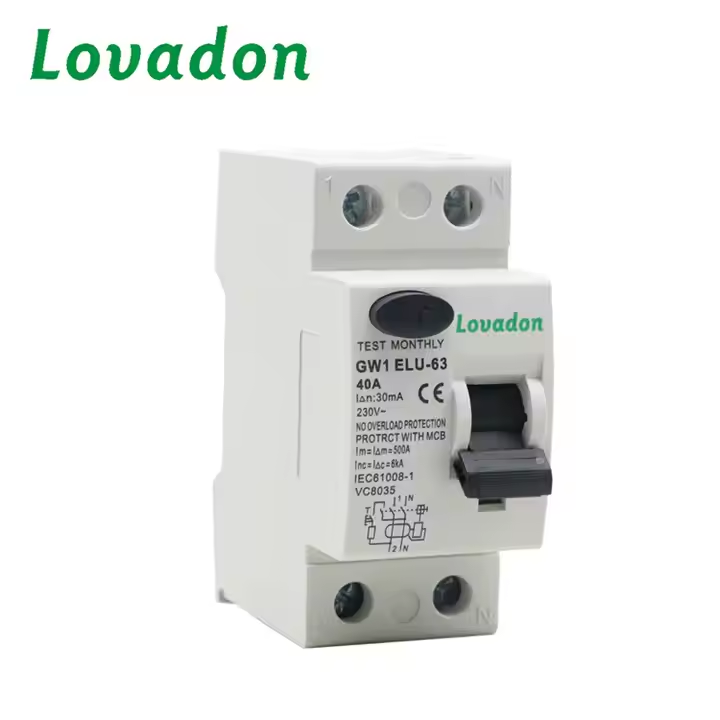

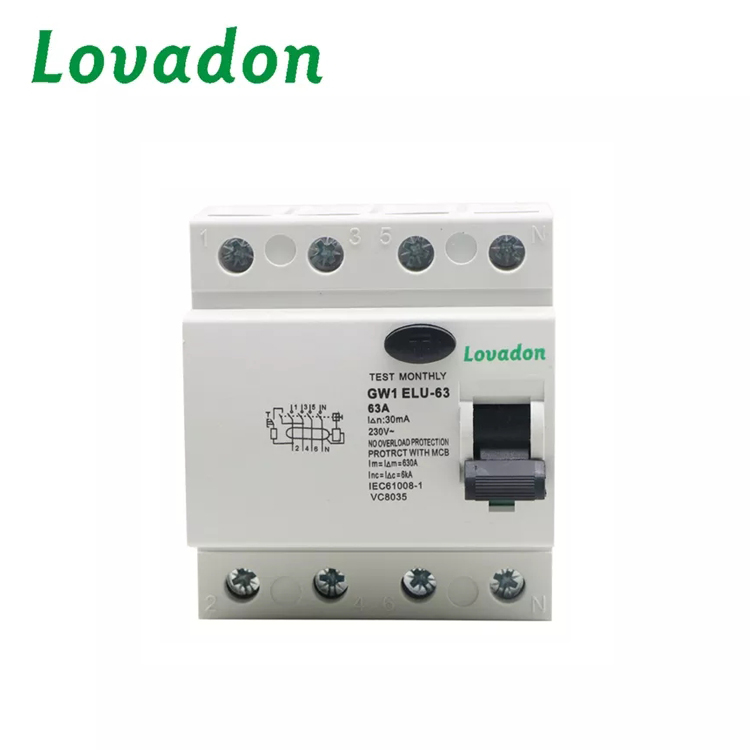

The device is labeled as Lovadon TEST MONTHLY GW1ELU-63 40A. It features a trip current of 30mA and is rated for 230V. Importantly, it lacks overload protection but is protected with an MCB. The device has an interrupting rating of 500A for short circuits and 6kA for maximum fault current. It complies with IEC61008-1 standards.

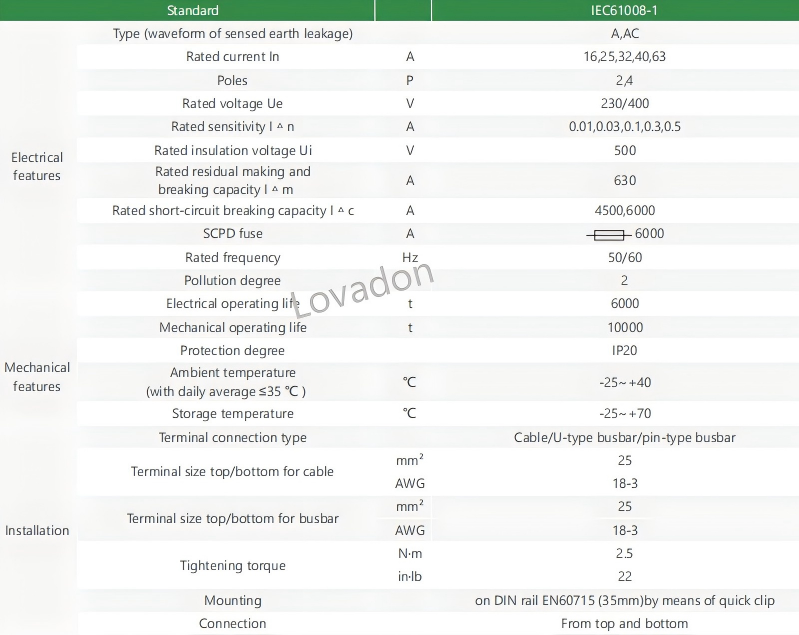

Technical Parameters
| Standard | IEC61008-1 |
| Electrical fcatures | Type(wave form of the earth leakage sensed) |
| A,AC |
| Rated current In | A | 16,25,32,40,63 |
| Poles | P | 2,4 |
| Rated voltage Ue | V | 230/400 |
| Rated sensitivity I△n | A | 0.01,0.03,0.1,0.3,0.5 |
| Insulation voltage Ui | V | 500 |
| Rated residual making and breaking capacity I△m | A | 630 |
| Short-circuit current I△c | A | 45,006,000 |
| SCPD fuse | A | 6,000 |
| Rated frequency | Hz | 50/60 |
| Pollution degree |
| 2 |
| Mechanical features | Electrical life | t | 6000 |
| MechanicaI Iife | t | 10000 |
| Protection degree |
| IP20 |
| Ambient temperature (with daily average ≤35 ℃ ) | ℃ | -25~+40 |
| Storage temperature | ℃ | -25~+70 |

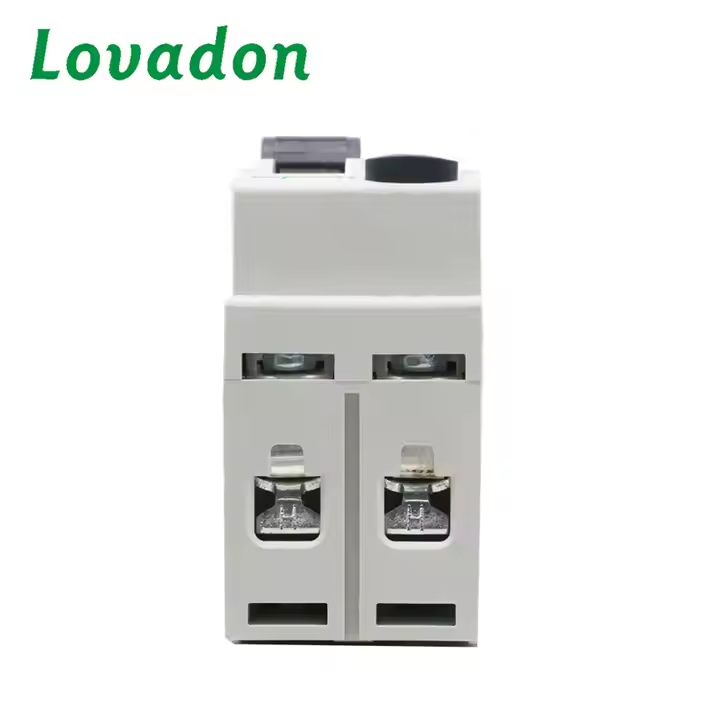

Installation

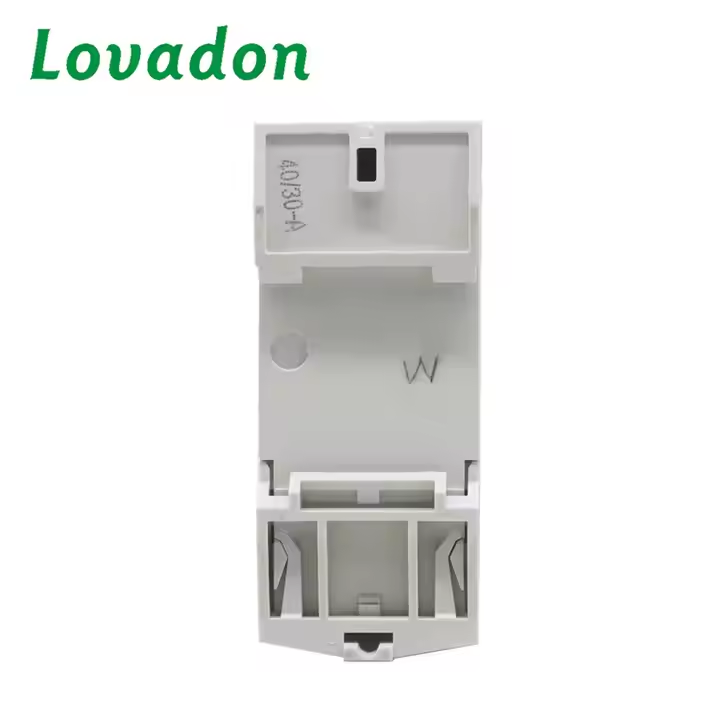

| Terminal connection type |
| Cable/U-type busbar/pin-type busbar |
| Terminal size top/bottom for cable | mm² | January 25th |
| AWG | 18-3 |
| Terminal size top/bottom for busbar | mm² | January 25th |
| AWG | 18-3 |
| Tightening torque | N*m | 2.5 |
| ln-lbs. | 22 |
| Mounting |
| on DIN rail EN6071 5(35mm)by means of fast clip device |
| Connection |
| From top and bottom |
Yueqing Lovadon Electric Co., Ltd.
