Miniature circuit breaker

LCBWP-100 4P Smart WIFI Controlled 6A,10A,16A,20A,32A,40A,50A,63A,80A 4P Circuit Breakers for Pv System protection

The Lovadon LCBWP-100 is a photovoltaic circuit breaker with manual/flash indicators (green=normal, red=fault). Rated 400V~50Hz, handles up to 6000A, and features a 2-10s auto-delay. Complies with IEC60898-1 standards for solar system safety.Technical ParametersModel NumberLCBWP-100 4PRated Frequency (Hz)50Hz/60HzTypeMCB, RCCB, RCBO, OtherProtectionLi, OtherRated voltage220VRated Current6A,10A,16A,20A,32A,40A,50A,63A,80ABreaking Capacit···
Request A Quick Quote

General

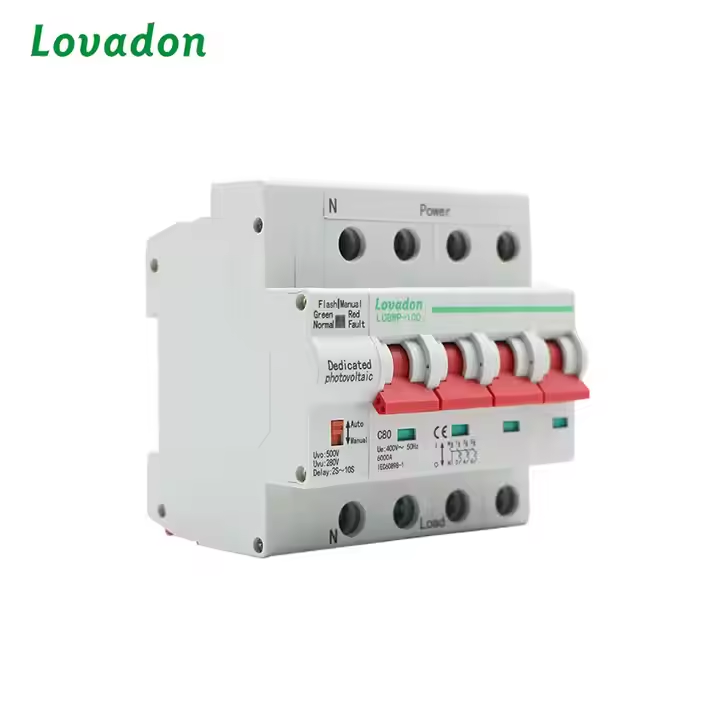

The Lovadon LCBWP-100 is a photovoltaic circuit breaker with manual/flash indicators (green=normal, red=fault). Rated 400V~50Hz, handles up to 6000A, and features a 2-10s auto-delay. Complies with IEC60898-1 standards for solar system safety.

Technical Parameters

Model NumberLCBWP-100 4P
Rated Frequency (Hz)50Hz/60Hz
TypeMCB, RCCB, RCBO, Other
ProtectionLi, Other
Rated voltage220V
Rated Current6A,10A,16A,20A,32A,40A,50A,63A,80A
Breaking Capacity6000A
Resetting time30s
Electrical life6000
Mechancal life10000
Limiting operating voltage300V
StandardGB10963.1
Pole2P 4P
