General

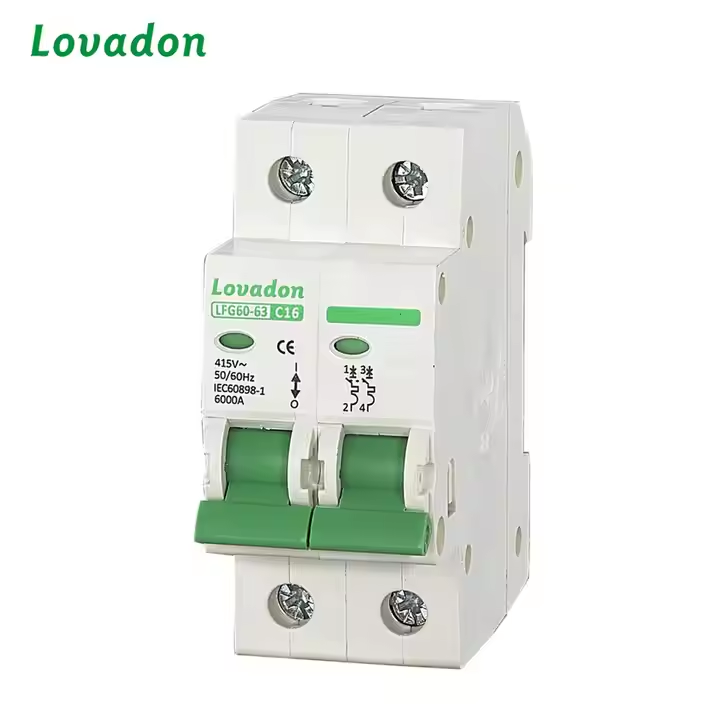

The LFG60-63 2P miniature circuit breaker is a compact device with a rated frequency of 50/60 Hz. It features a rated current range from 6A to 63A and operates at a rated voltage of 230/400-240/415V. This breaker offers protection types like MCB, RCCB, RCBO, and more. Certified under ISO9001, it boasts a breaking capacity of 6kA and a mechanical life of 10,000 cycles. Available in white and green, it's reliable and suitable for various applications.

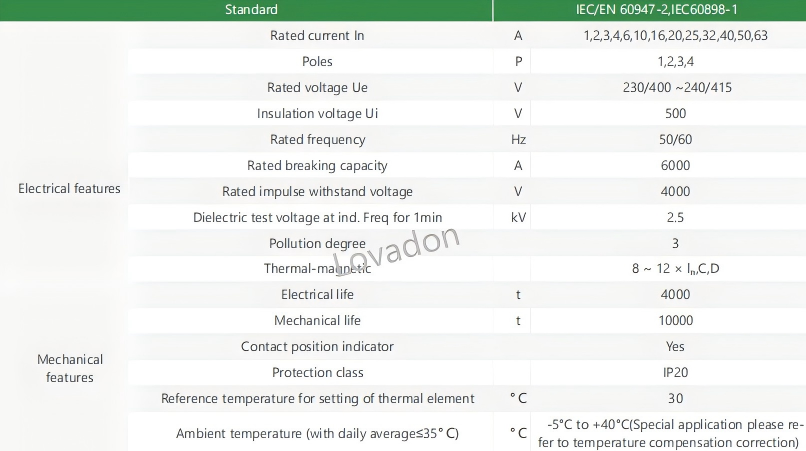

Technical Parameters
| Model Number | LFG60-63 2P |
| Type | MCB, RCCB, Other |
| Rated Frequency (Hz) | 50/60 Hz |
| Protection | Li, Other |
| Rated current | 1A-63A |
| Rated voltage | 230/400-240/415 |
| Breaking capacity | 6kA |
| Mechanical Life | 10000 Times |
| Certificate | ISO9001 |
| Standard | IEC/EN 60898-1 IEC/EN 60947-2 |
