General

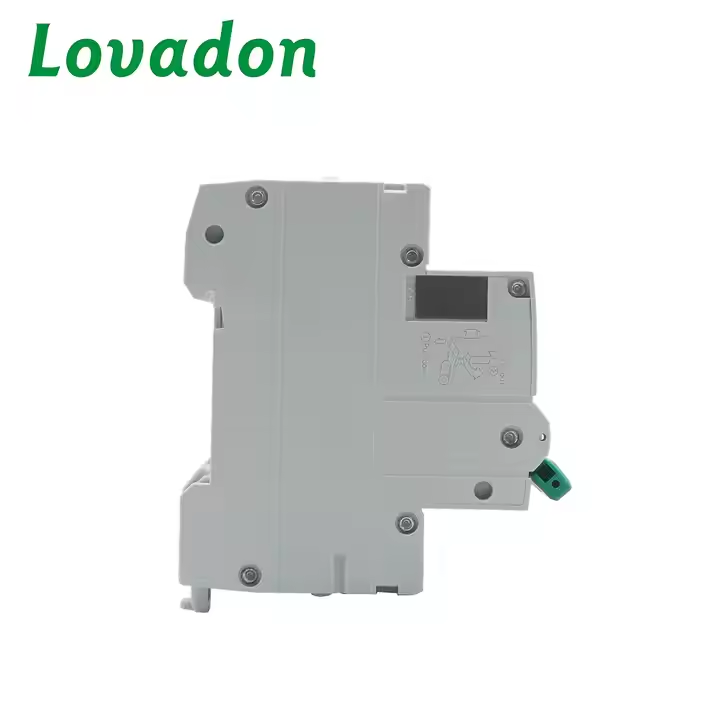

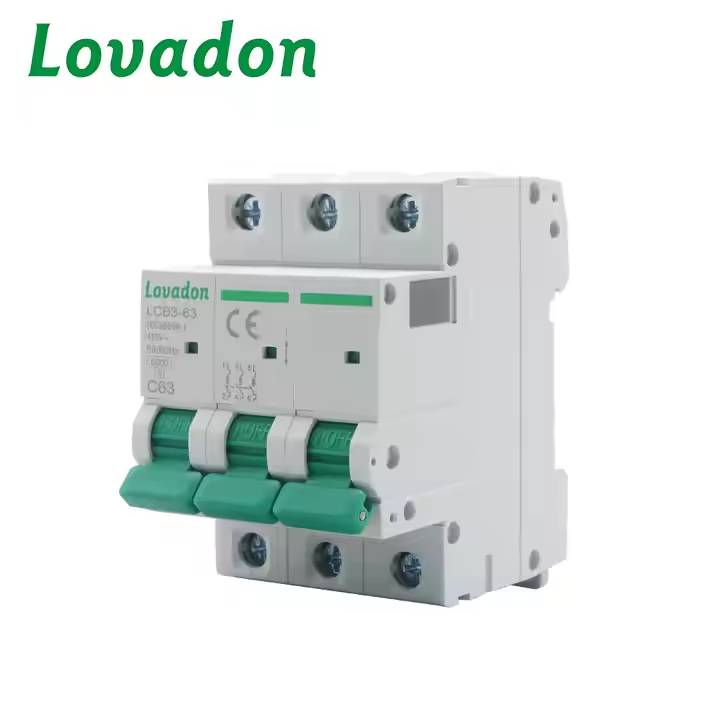

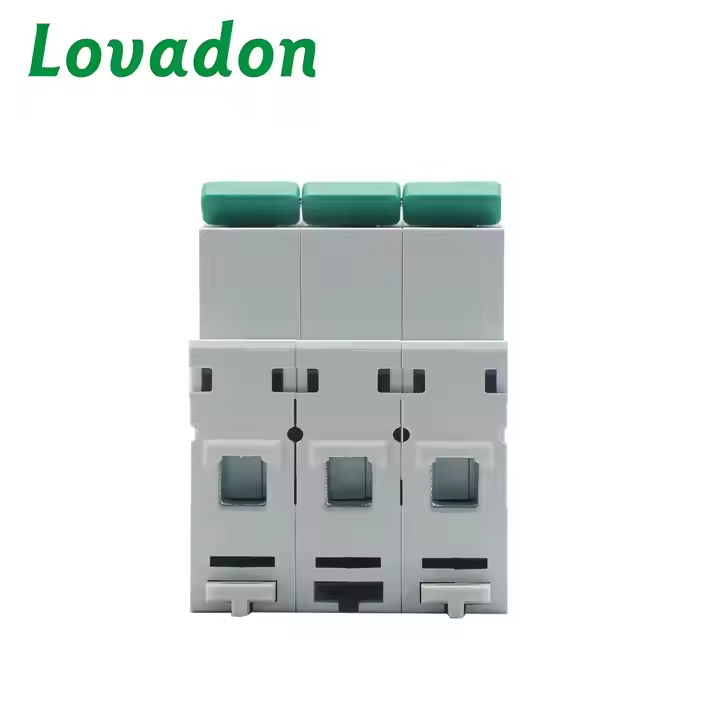

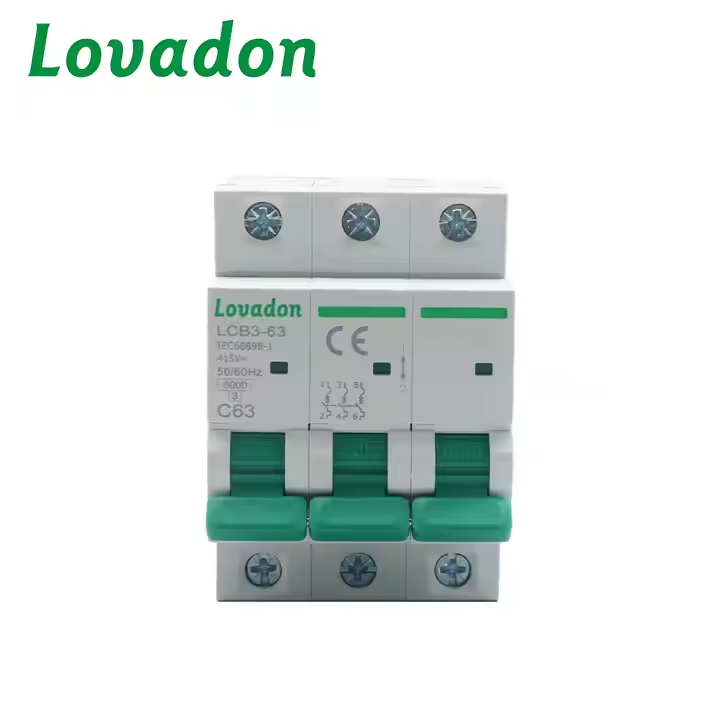

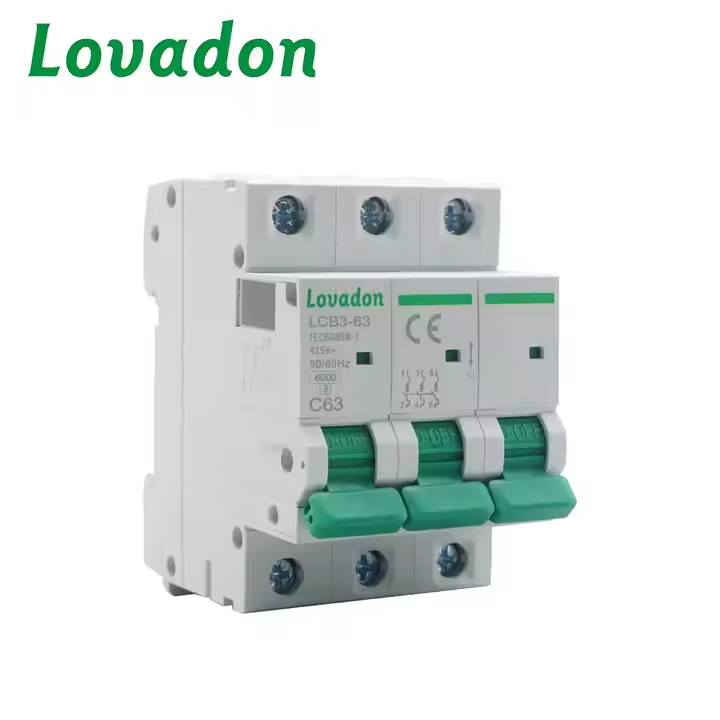

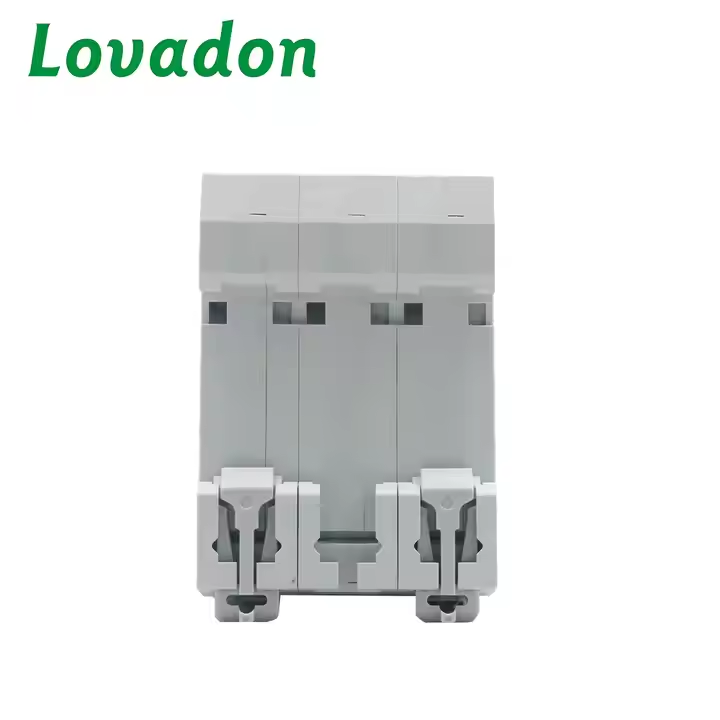

The Lovadon LCB3-63 circuit breaker is a dependable device for electrical protection. It complies with IEC60898-1 standards, operating at voltages of 220/415V and frequencies of 50/60Hz. With a rated current of 63A, it ensures safety in various electrical systems. The CE marking signifies its adherence to European safety standards. Suitable for both residential and commercial use, this circuit breaker effectively guards against overloads and short circuits, providing a crucial layer of protection in electrical installations.
Technical Parameters
| Model Number | LCB3-63 3P |
| Breaking Capacity | 6kA |
| Rated Voltage | 230/400V |
| BCD Curve | B,C,D |
| Rated current(A) | 1,2,4,6,10,16,20,25,32,40,50,63 |
| Rated Frequency (Hz) | 50/60hz |
| Mounting | DIN rail EN 60715 |
| Connection | Cable/pin-type bus bar |
| Auxiliary contace | Optional |
| Electrical life(circle) | 4000 |
| Mechanica llife(circle) | 20000 |
| Rated impulse withstand voltage(V) | 4000 |
Yueqing Lovadon Electric Co., Ltd.
