General

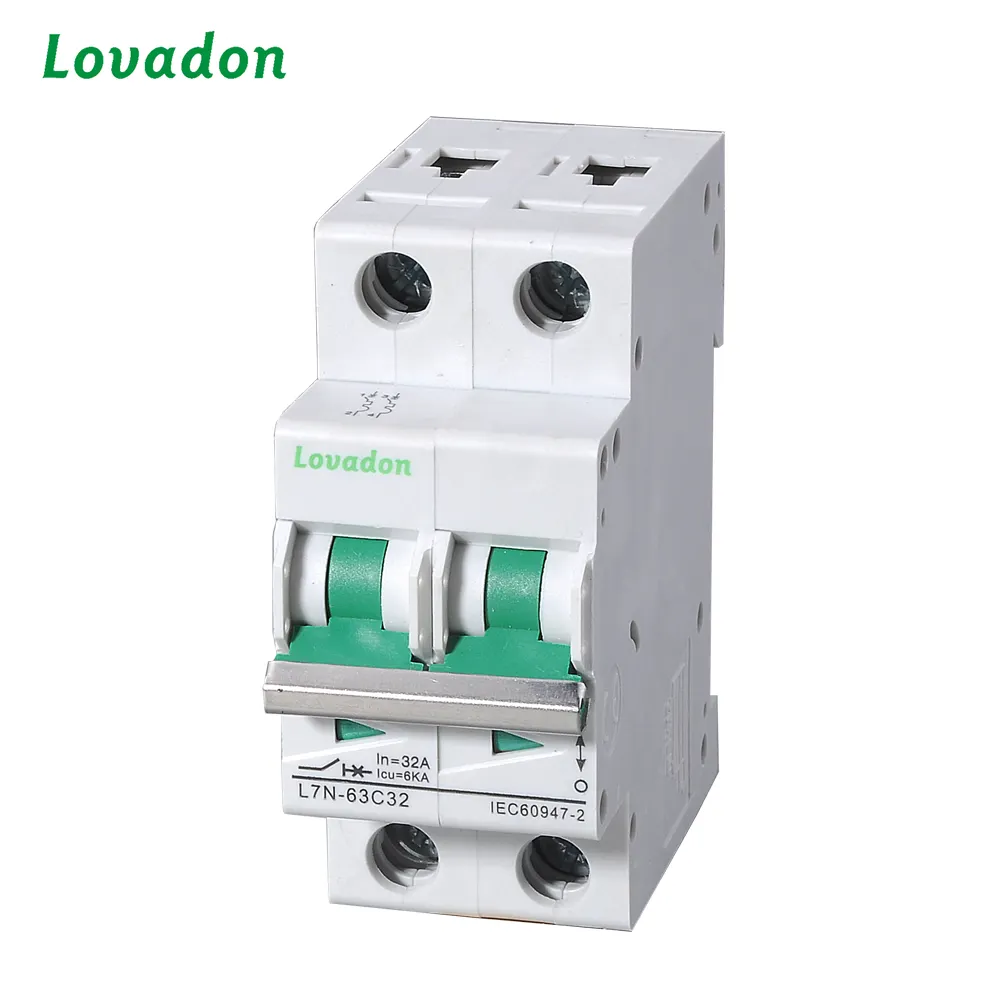

The L7N 2P miniature circuit breaker (MCB) is designed for reliable electrical protection. It operates at a rated frequency of 50/60 Hz, supporting a rated current range from 6A to 63A. Suitable for a rated voltage of 230/400V, it offers breaking capacities of 4.5kA, 6kA, or 10kA. With a pollution degree of 2 and a mechanical life of 20,000 operations, the device can withstand storage temperatures from -25°C to +70°C. Compliant with IEC/EN 60898-1 standards, it ensures high-quality performance and safety, making it ideal for various applications.
Technical Parameters
| Model Number | L7N 2P |
| Type | MCB, RCCB, RCBO, Other |
| Rated Frequency (Hz) | 50/60 Hz |
| Protection | Li, Other |
| Rated current | 6A-63A |
| Product name | Miniature circuit-breaker |
| Rated voltage | 230/400 |
| Breaking capacity | 4.5KA/6KA/10KA |
| Pollution degree | 2 |
| Mechanical Life | 20000 Times |
| Storage temperature | -25~+70 |
| Standard | IEC/EN 60898-1 |
