General

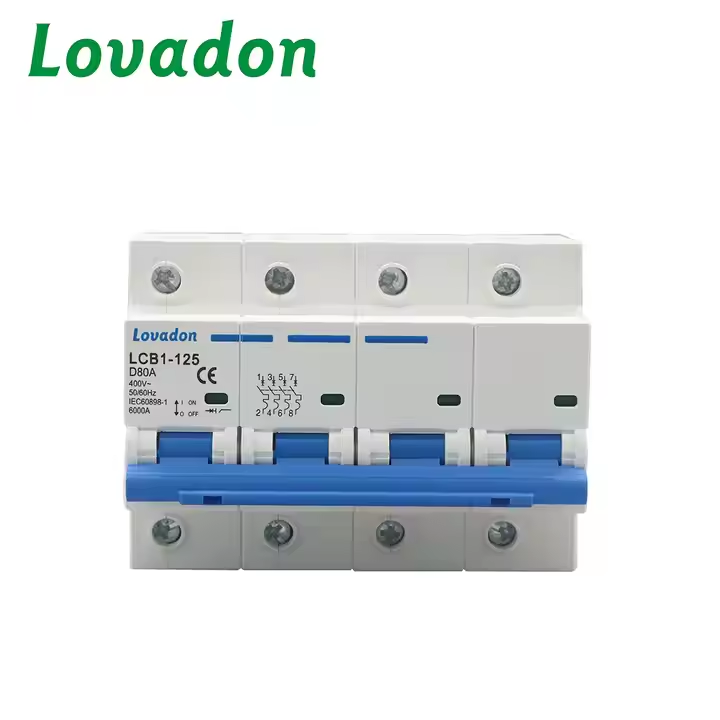

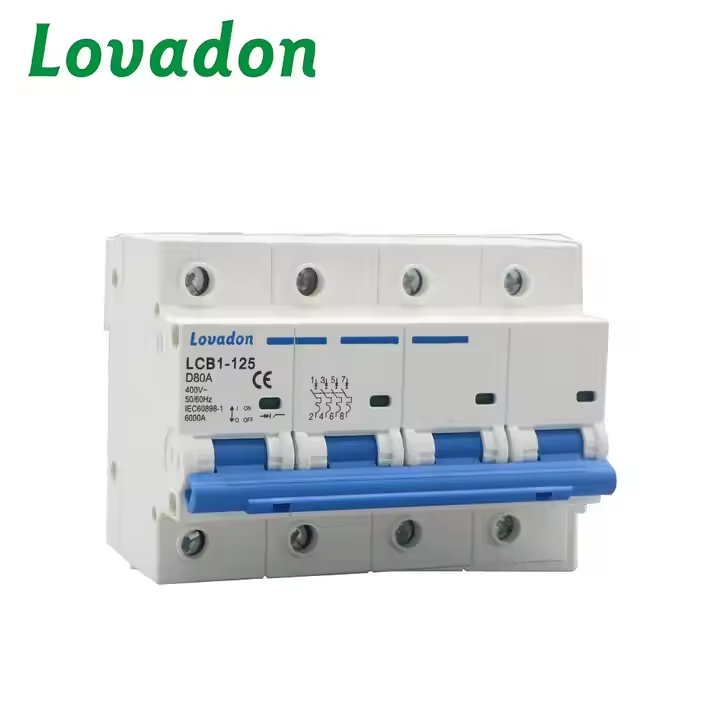

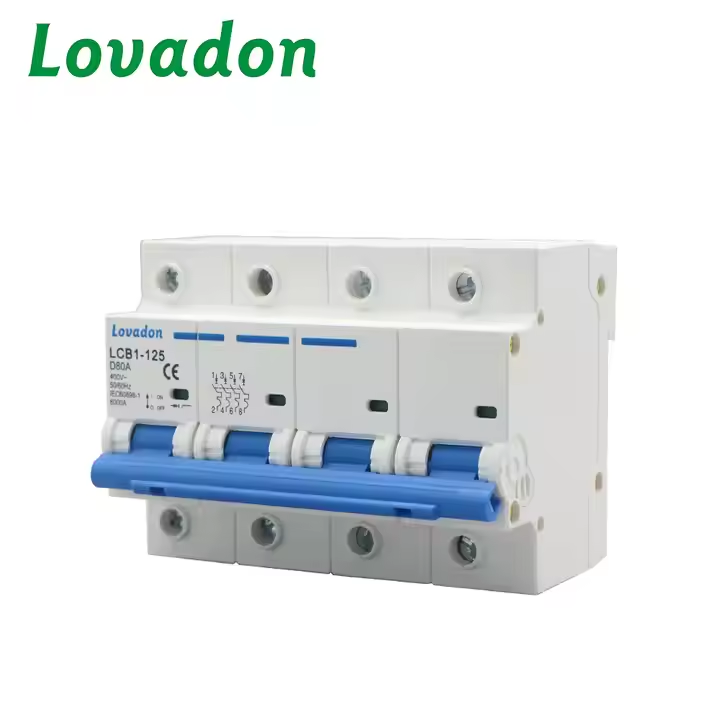

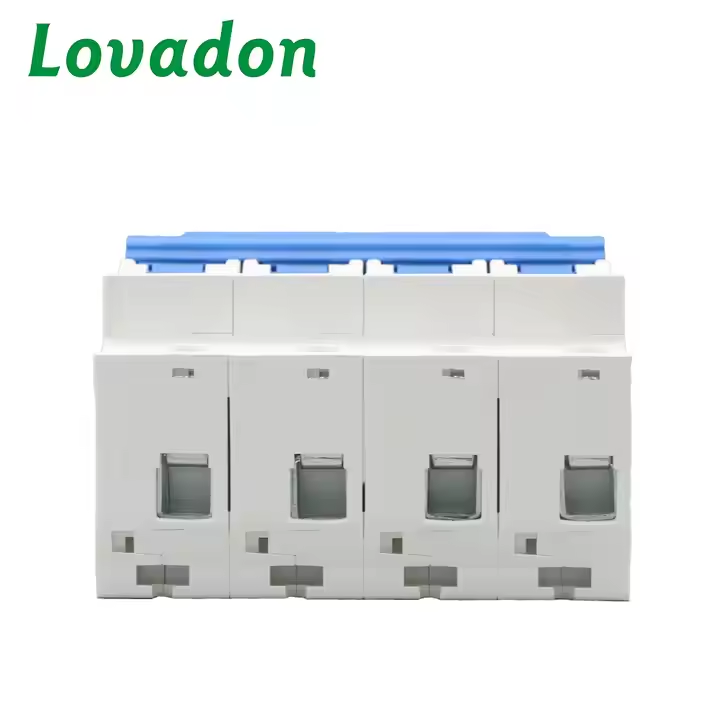

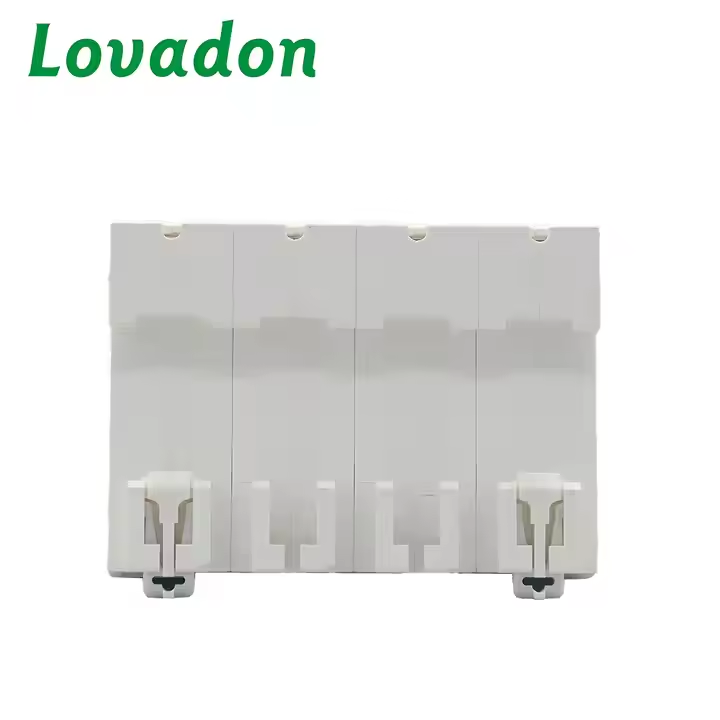

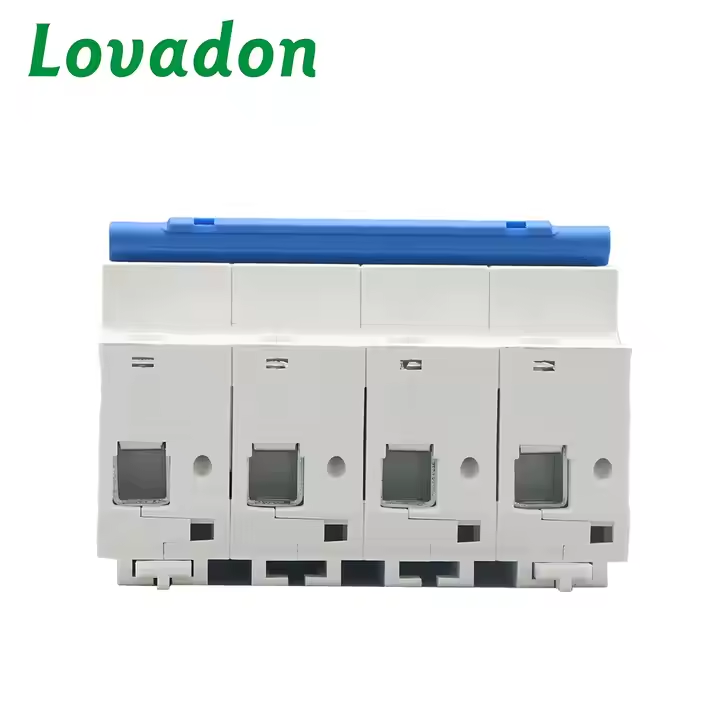

This electrical component features rated currents of 63, 80, 100A, with 1 to 4 poles. It operates at rated voltages of 220/380, 230/400, 240/415V and has an insulation voltage of 500V. The rated frequency is 50/60Hz, with a rated breaking capacity up to 600,010,000A. It boasts a rated impulse withstand voltage of 6000V and a dielectric test voltage of 2.5kV. Pollution degree is 3, with thermo-magnetic release characteristics of 8-12In, C, D.
Technical Parameters
| Standard | IEC60898,BS 3871-Pt1 |
Electrical fcatures | Rated current In | A | 63,80,100 |
| Poles | P | 1,2,3,4 |
| Rated voltage Ue | V | 220/380 230/400 240/415 |
| Insulation voltage Ui | V | 500 |
| Rated frequency | Hz | 50/60 |
| Rated breaking capacity | A | 600,010,000 |
| Rated impulse withstand voltage(1 2/50)Uimp | V | 6000 |
| Dielectric test voltage at ind. Freq for 1min | kV | 2.5 |
| Pollution degree |
| 3 |
| Thermo-magnetic release characteristic |
| 8-12ln,C,D |
| Mechanical features | Electrical life | t | 6000 |
| Mechanical life | t | 20000 |
| Contact position indicator |
| Yes |
| Protection degree |
| IP20 |
| Reference temperature for setting of thermal element | ℃ | 30 |
| Ambient temperature (with daily average≤35℃) | ℃ | -5~+40(Special application please refer
to temperature compensation correction) |
