Miniature circuit breaker

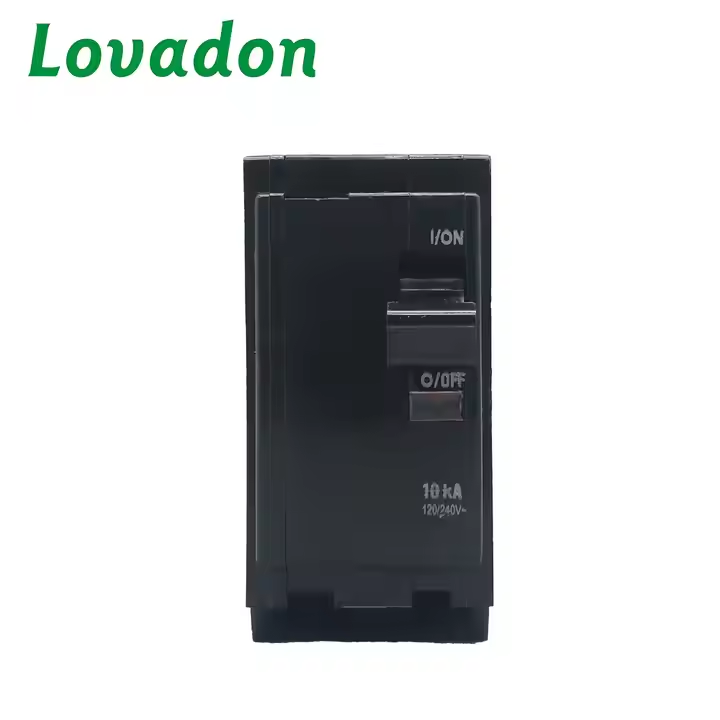

QO 2P High Quality 10KA 2 Pole Black QO Type Mcb Miniature Circuit Breaker D Type Square Miniature Circuit Breaker

Qo Circuit Breaker is mainly used for AC 50Hz(or 60Hz),It has the functions of overload and short circuit protection,advanced struc- ture,relable performance,high breaking capacity and beautiful appearance.It is widely used in household,commercial and light indus- ial installations .the product meets BS 3871-Pt1 and IEC 60898-1 standards.Technical ParametersStandardIEC60898,BS 3871-Pt1Rated current In5.10.15.20.25.30.40.50.60.70.80.90.1···
Request A Quick Quote

General

Qo Circuit Breaker is mainly used for AC 50Hz(or 60Hz),It has the functions of overload and short circuit protection,advanced struc- ture,relable performance,high breaking capacity and beautiful appearance.It is widely used in household,commercial and light indus- ial installations .the product meets BS 3871-Pt1 and IEC 60898-1 standards.

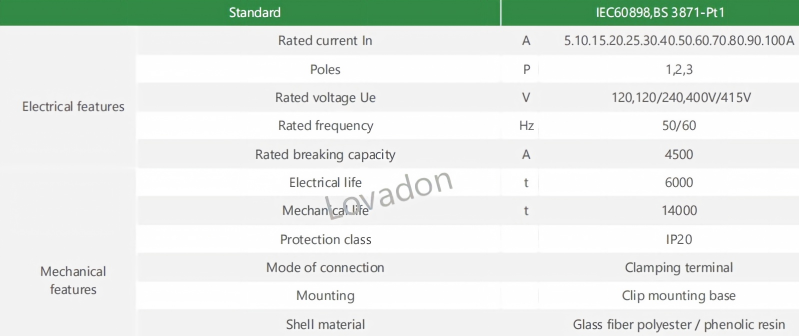

Technical Parameters

StandardIEC60898,BS 3871-Pt1
Rated current In5.10.15.20.25.30.40.50.60.70.80.90.100A
Poles1,2P
Rated voltage Ue120,120/240V
Rated frequency50/60Hz
Rated breaking capacity4500A
Electrical life

6000t

Mechanical life14000t
Protection degreeIP20
Mode of connectionClamping terminal
MountingClip mounting base
Shell materialGlass fiber polyester/phenolic resin
