Miniature circuit breaker

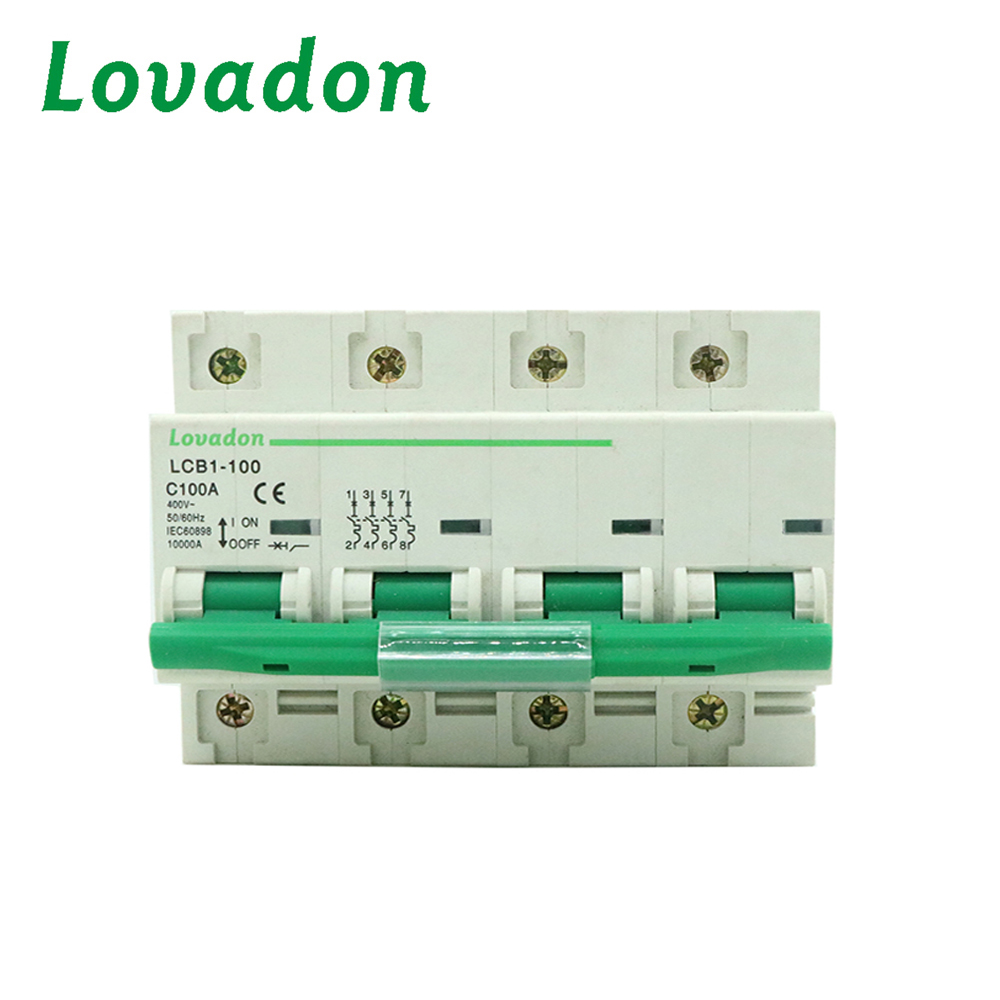

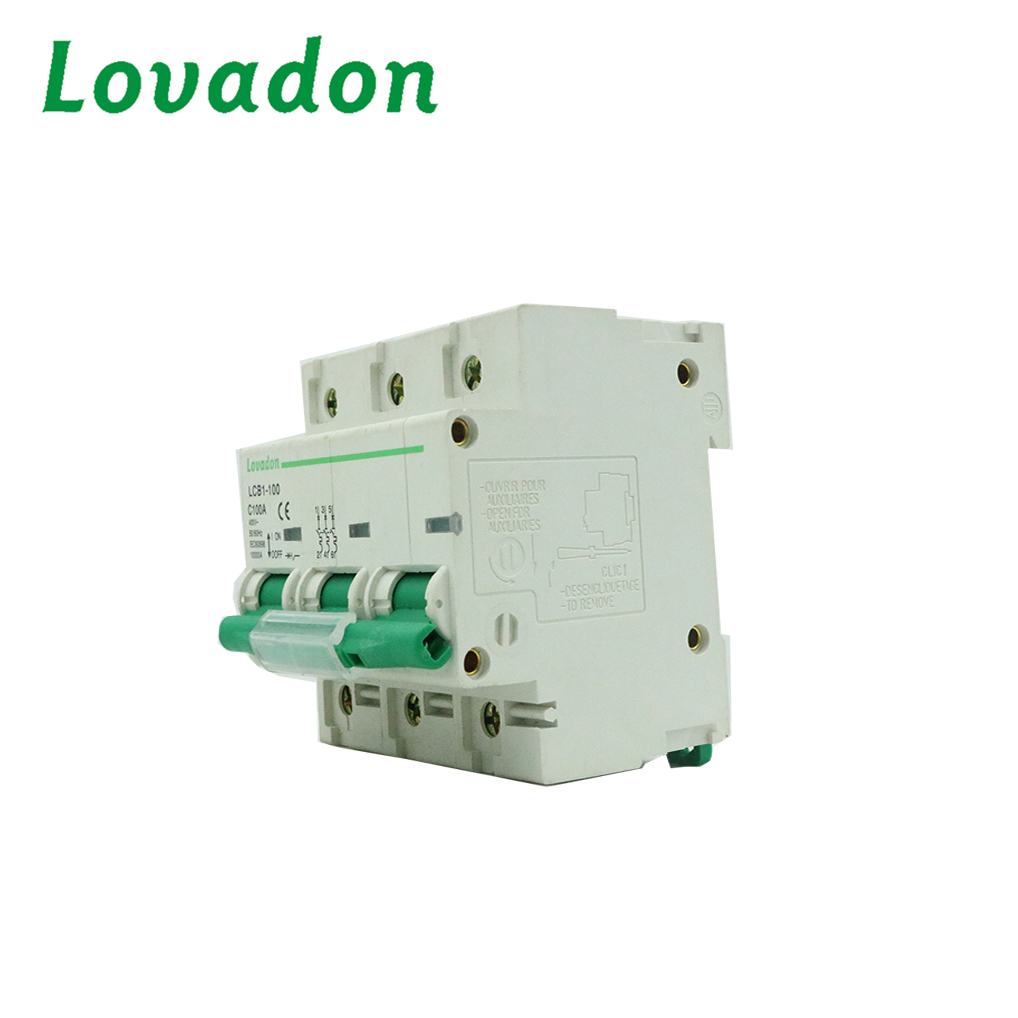

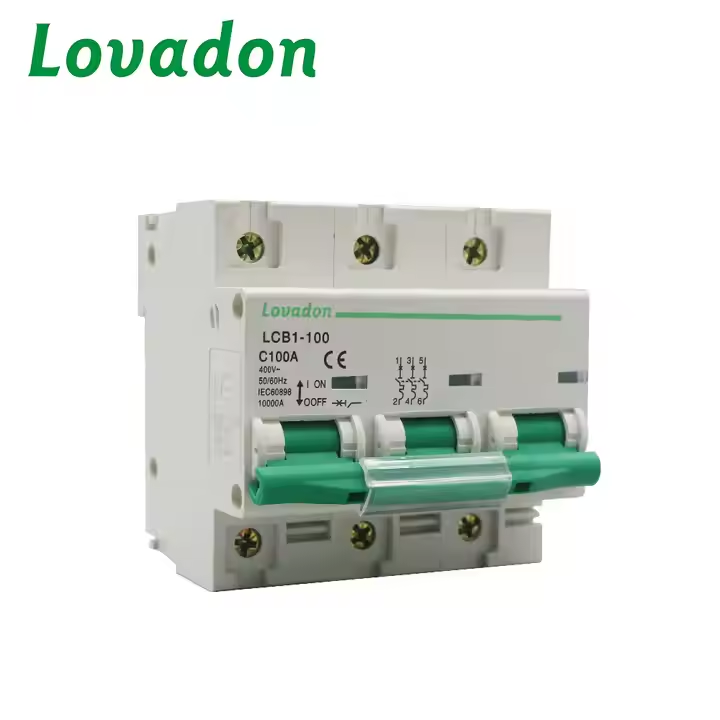

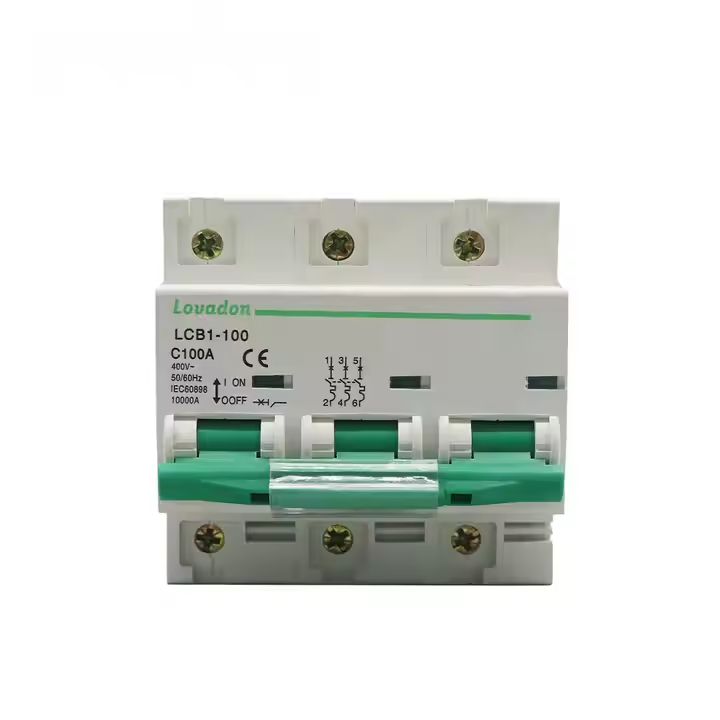

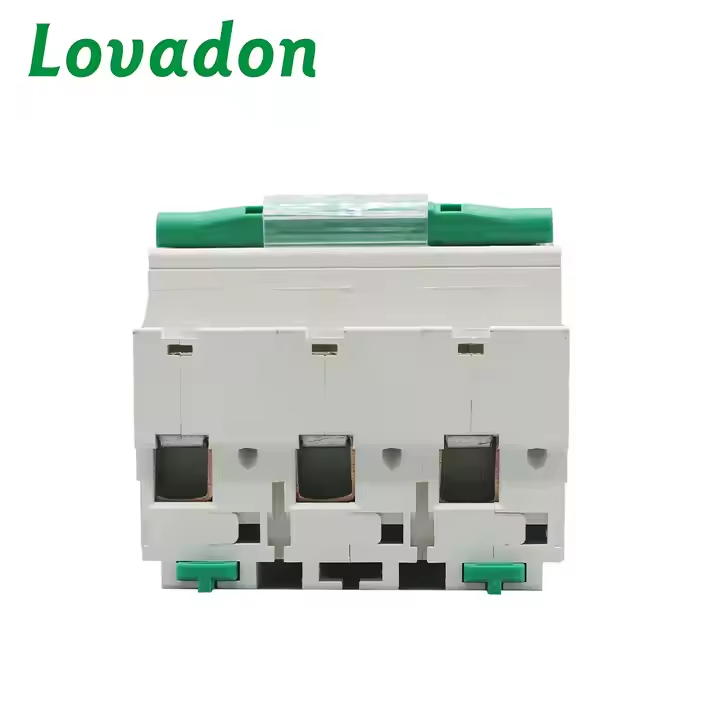

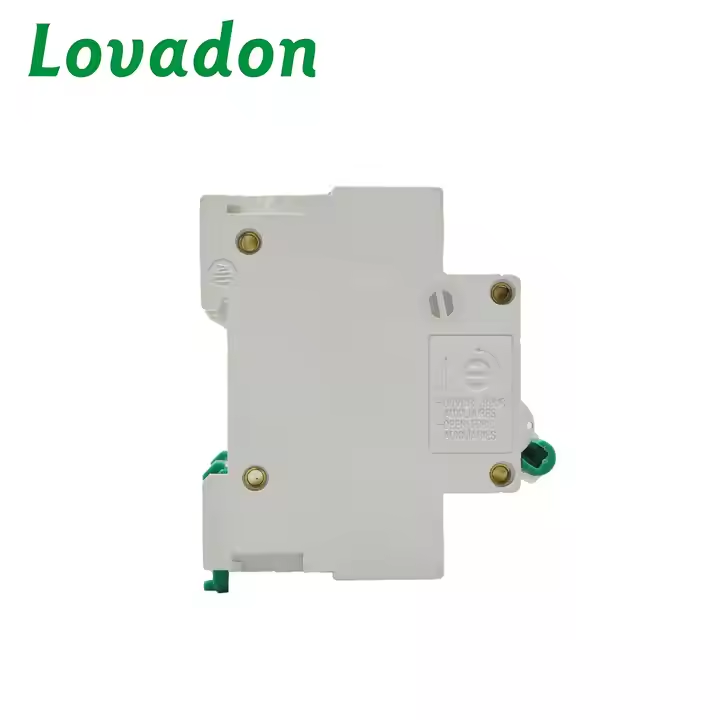

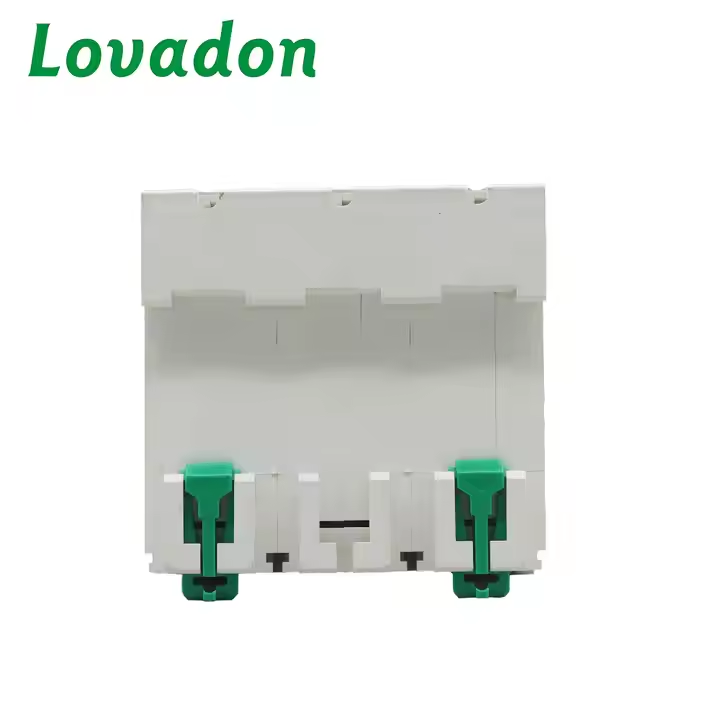

LCB1-100 MCB

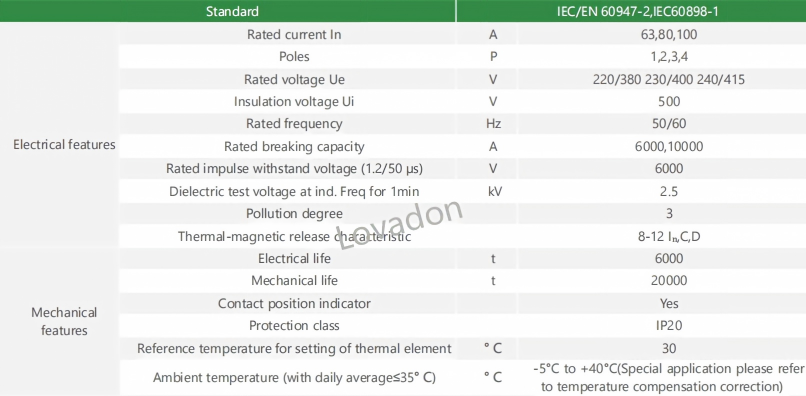

Technical Parameters

StandardIEC60898,BS 3871-Pt1

Electrical fcatures
Rated current InA63,80,100
PolesP1,2,3,4
Rated voltage UeV220/380 230/400 240/415
Insulation voltage UiV500
Rated frequencyHz50/60
Rated breaking capacityA600,010,000
Rated impulse withstand voltage(1 2/50)UimpV6000
Dielectric test voltage at ind. Freq for 1minkV2.5
Pollution degree
3
Thermo-magnetic release characteristic
8-12ln,C,D
Mechanical featuresElectrical lifet6000
Mechanical lifet20000
Contact position indicator
Yes
Protection degree
IP20
Reference temperature for setting of thermal element30
Ambient temperature (with daily average≤35℃)-5~+40(Special application please refer
 to temperature compensation correction)
