General

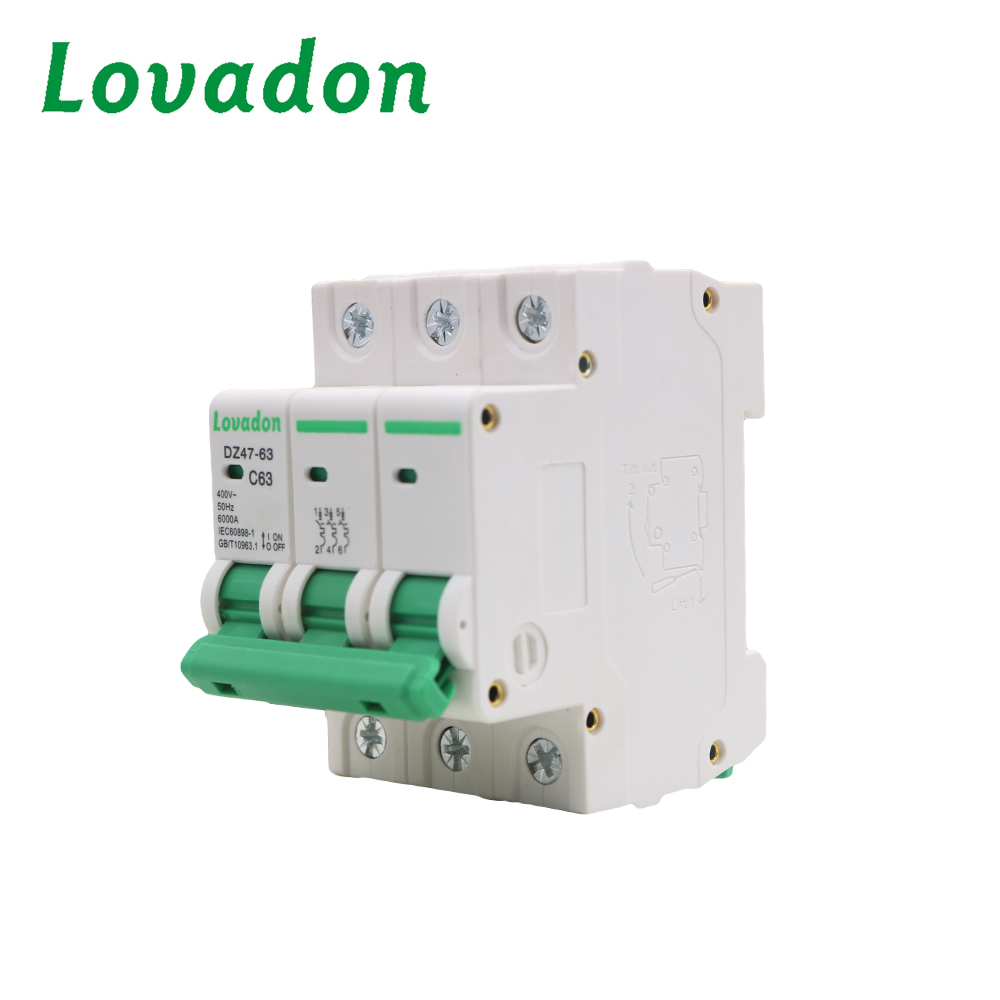

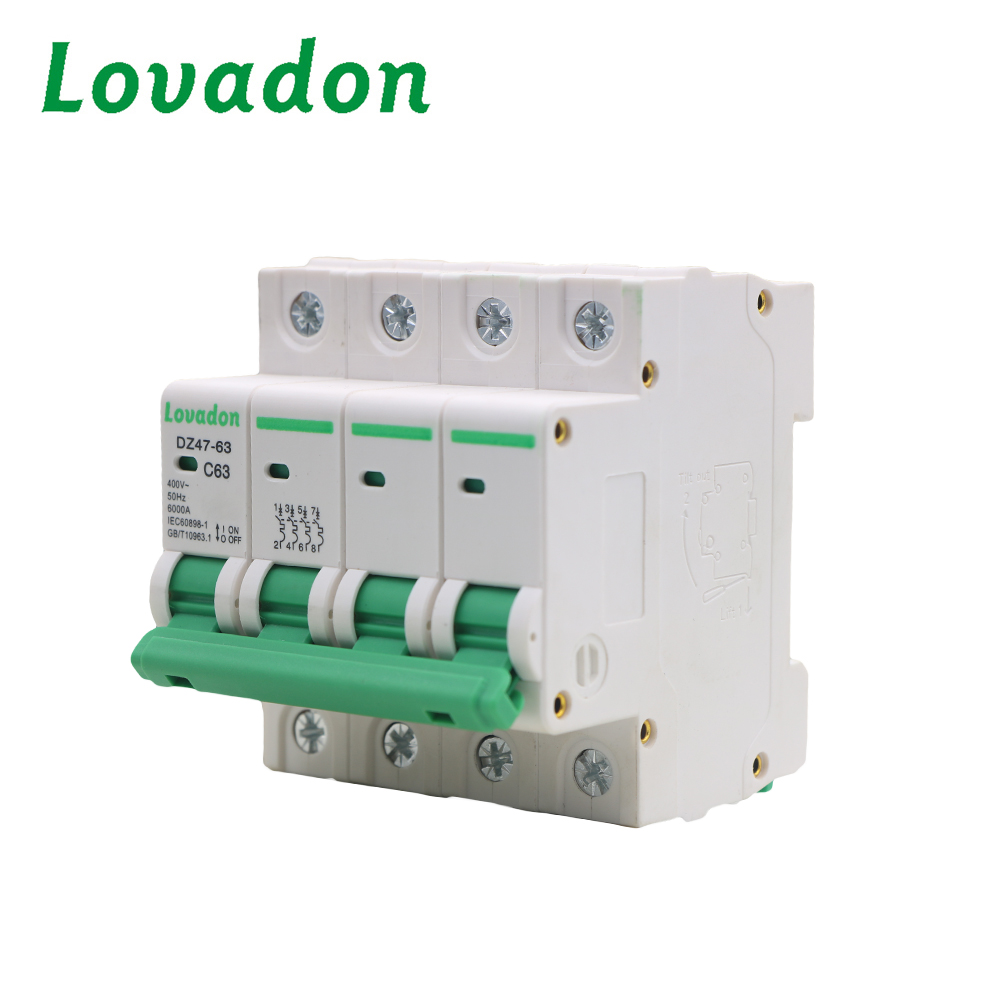

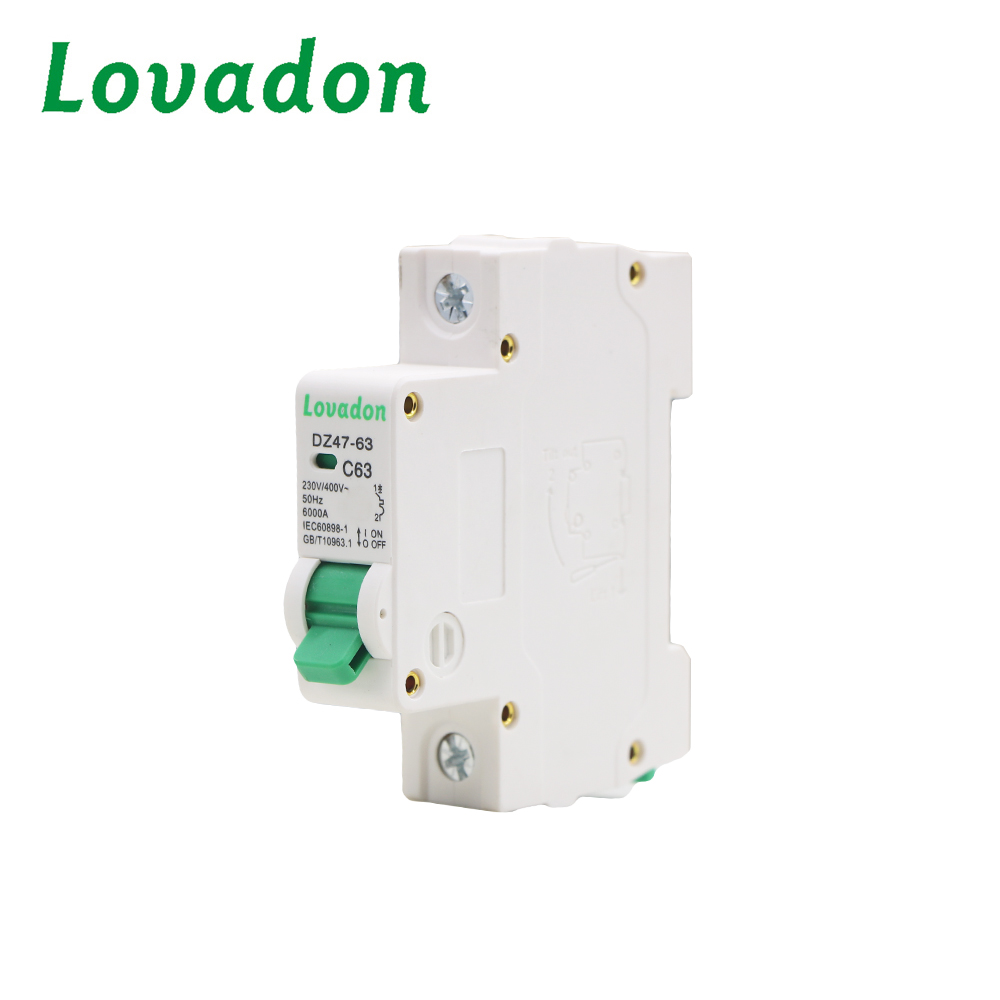

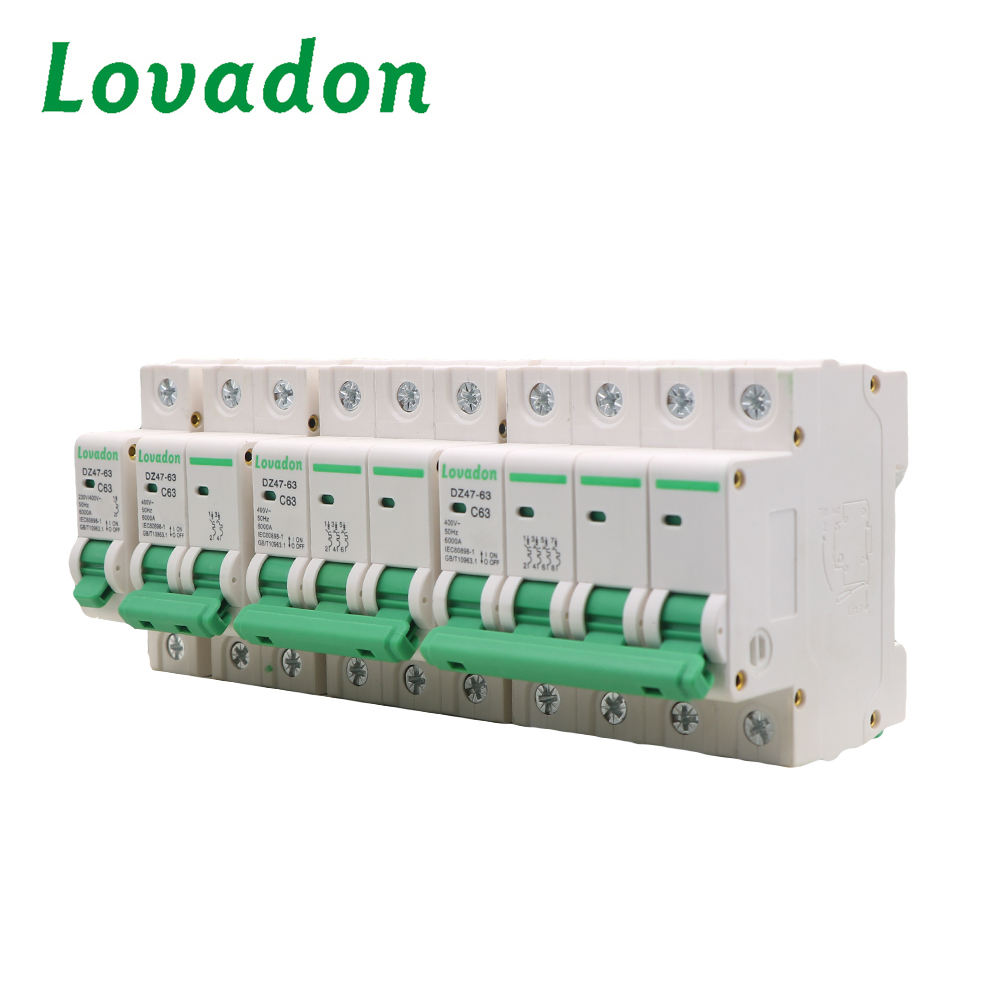

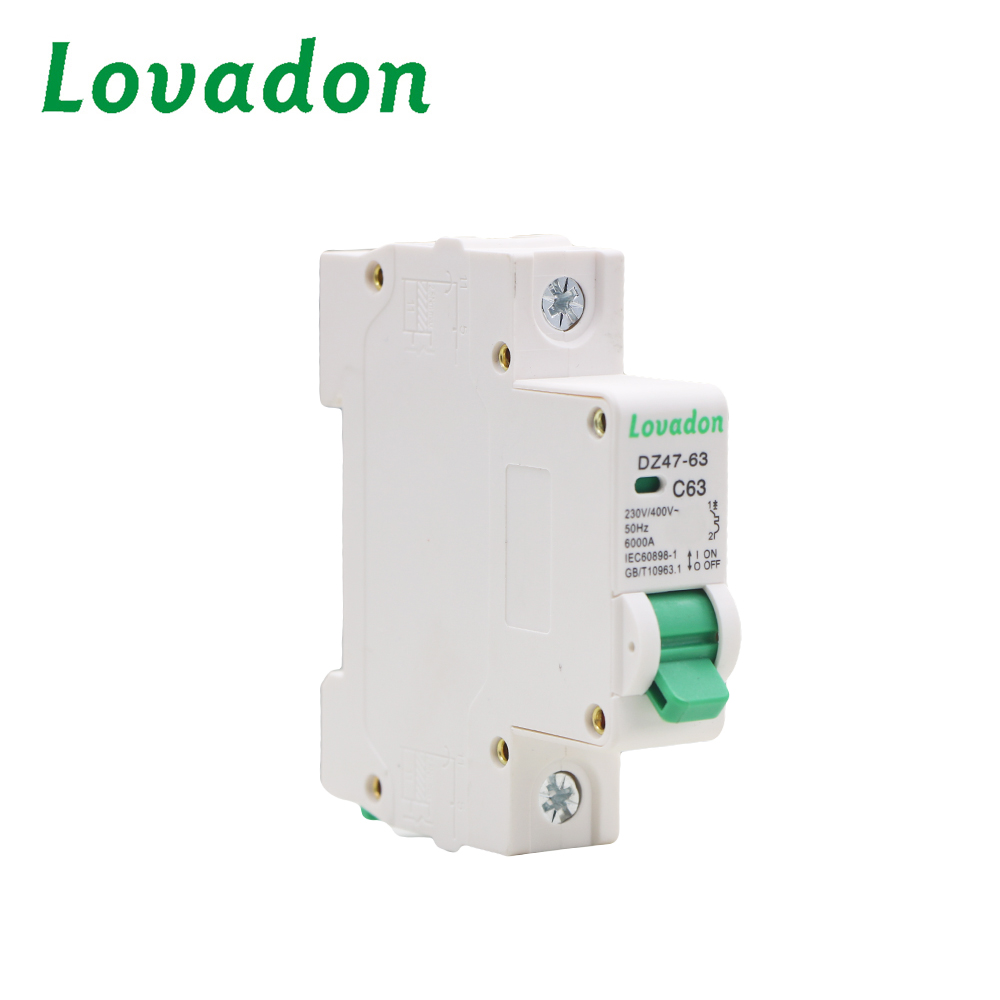

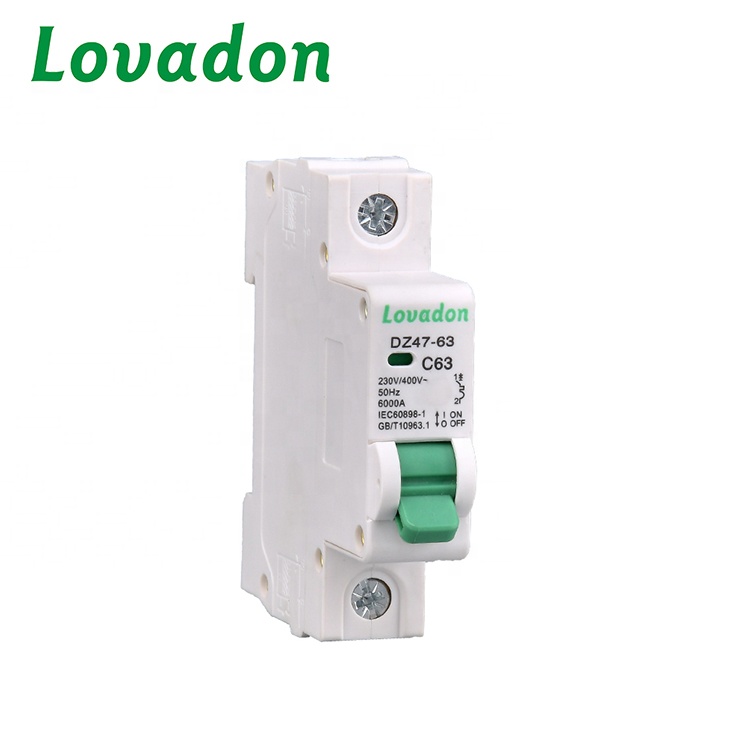

DZ47-63 miniature circuit breaker is mainly suitable for avoiding overload and short cicuit. It is especially used in illumination and distribution system of industry and commmerce. Its appearance is small and exquisite;itscapability is favorable and credible.It has high breaking capacity.The shell and parts are made of fire resistance and shock resistance plastic.It has a long life.It is mainly used for avoiding short circuit of AC 50/60HZ rated voltage of single pole 240V and tow,three or four poles 415V circuit It can also be set for infrequent switch on and off the electrical equipment and illumination circuit in mormal condition.This product complies with IEC60898,CE etc.

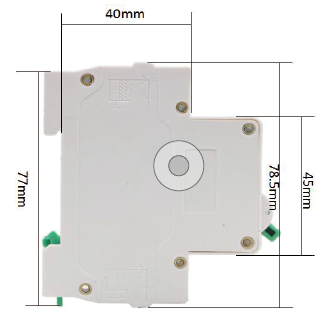

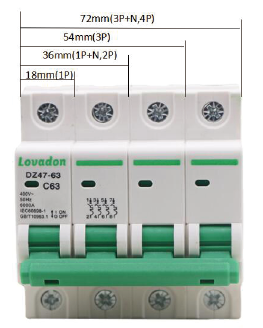

Dimension
Technical Parameters
| Electrical features | Standard |
| IEC/EN 60898-1 |
| Rated current(A) | A | 1,2,4,6,10,16,20,25,32,40,50,63 |
| Poles | P | 1,2,3,4 |
| Rated voltage(V) | V | 230/400 |
| Breaking capacity(kA) | KA | 6-10 |
| Rated frequency | Hz | 50/60 |
| Mounting | A | DIN rail EN 60715 |
| Rated impulse withstand voltage(V) | V | 4000 |
| Connection |
| Cable/pin-type bus bar |
| Auxiliary contace |
| Optional |
| Characteristic |
| B,C,D |
| Mechanica featuresmechanica | Electrical life(circle) | t | 4000 |
| Mechanica llife(circle) | t | 20000 |
| Protootion |
| Short circuit&overload |
| Under voltage release |
| Optional |
