Yueqing Lovadon Electric Co., Ltd.

General

1.The equipment must be installed by qualified professionals.

2.Before operating the equipment, disconnect all power supplies and do not touch any terminals while

power is connected.

3.Ensure terminals are properly connected.

4.Do not disassemble or repair the equipment under any circumstances (whether in normal operation or

not). The manufacturer and seller assume no liability.

5.Don't use the equipment in locations where it may be exposed to corrosive gases, strong sunlight, or rain.

6.Clean the equipment with a dry cloth.

7.Failure to follow these instructions may result in serious injury or major accident

Product Features

● Microcontroller‑based

● Digital display of operating voltage and current values

● Protection against over/under of the set voltage, three‑phase unbalance, and phase sequence error

● Voltage measurement accuracy: 2%

● Key setting parameters

● LED indication for overvoltage/undervoltage and overcurrent faults

● 6 modules, DIN rail mounting

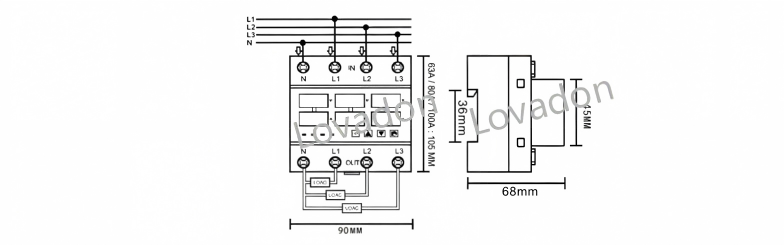

Dimension and wiring diagram (mm)
