General

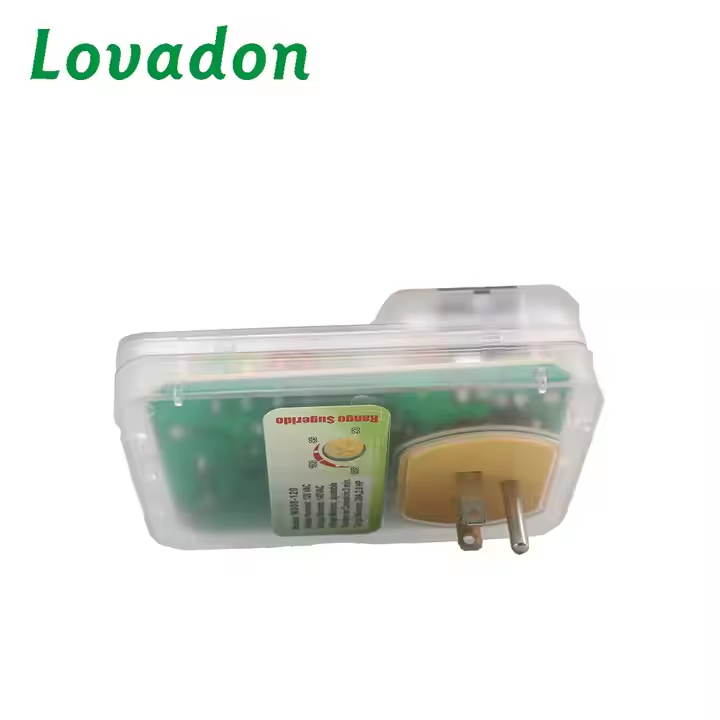

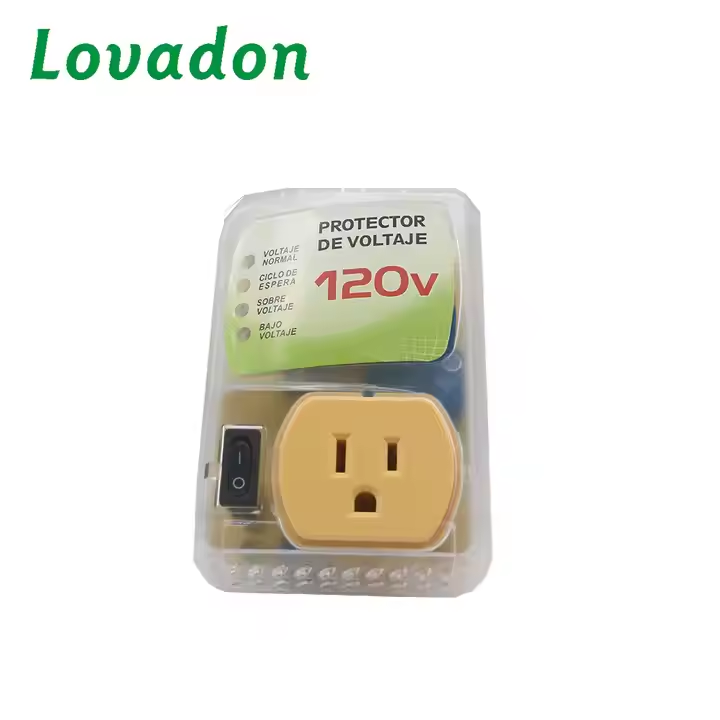

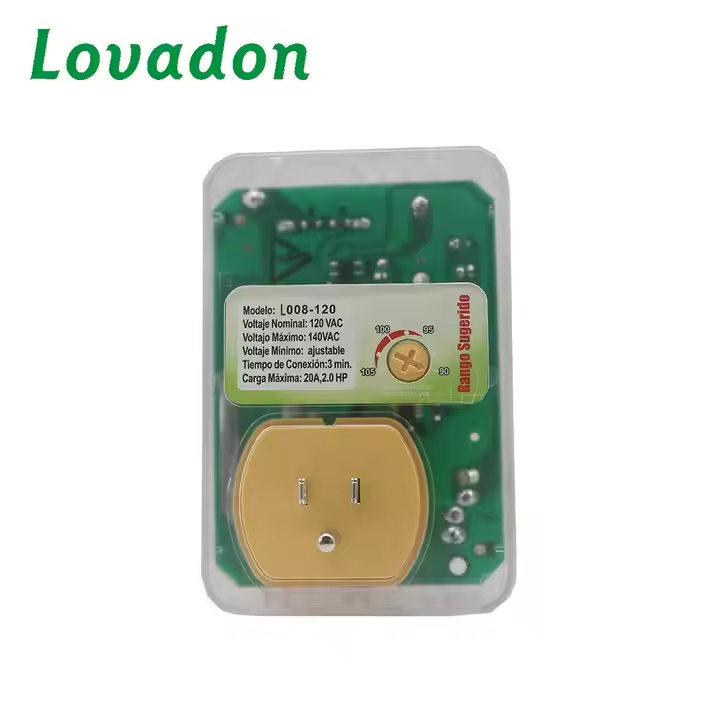

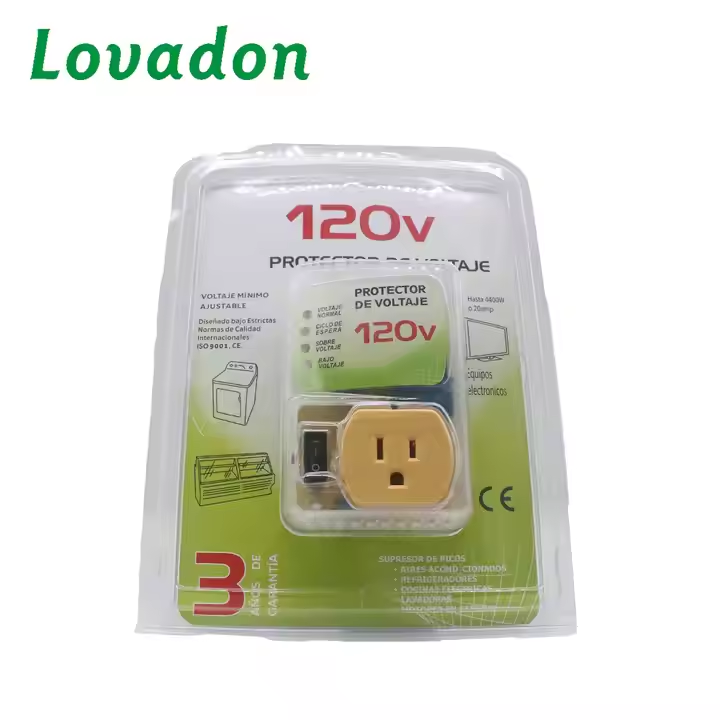

The LOVADON OEM L008-120 Voltage Protector is a specialized device designed to safeguard electrical appliances from voltage fluctuations. It operates at 120V AC with a frequency range of 50Hz–60Hz, featuring adjustable under-voltage protection (90V–105V) and a fixed over-voltage cut-off at 140V AC. Additional functions include 3V–5V hysteresis adjustment, 20A/2400W output capacity, a 3-minute delay timer, and 140 Joules surge protection for enhanced safety against power surges. This compact yet robust protector ensures stable operation and longevity of connected equipment.
Technical Parameters
| Model Number | L008-120 |
| Use | electrical appliance |
| Product name | Voltage Protector |
| Operating Voltage | 120V AC |
| Operating Frequency | 50 Hz-60 Hz |
| Under Voltage Cut-off | 90V~105V adjustable |
| Over Voltage Cut-off | 140V AC |
| Hysterises For Cut-off | 3V to 5V AC |
| Output Capacity | 20A 2400W |
| Delay Time | 3min |
| Surge protection | 140 Joules |
Yueqing Lovadon Electric Co., Ltd.
