General

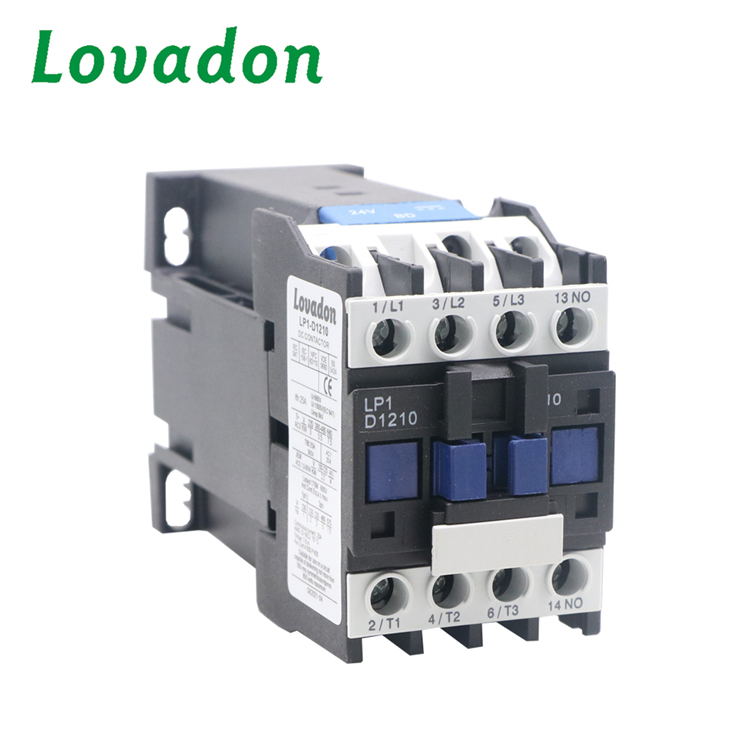

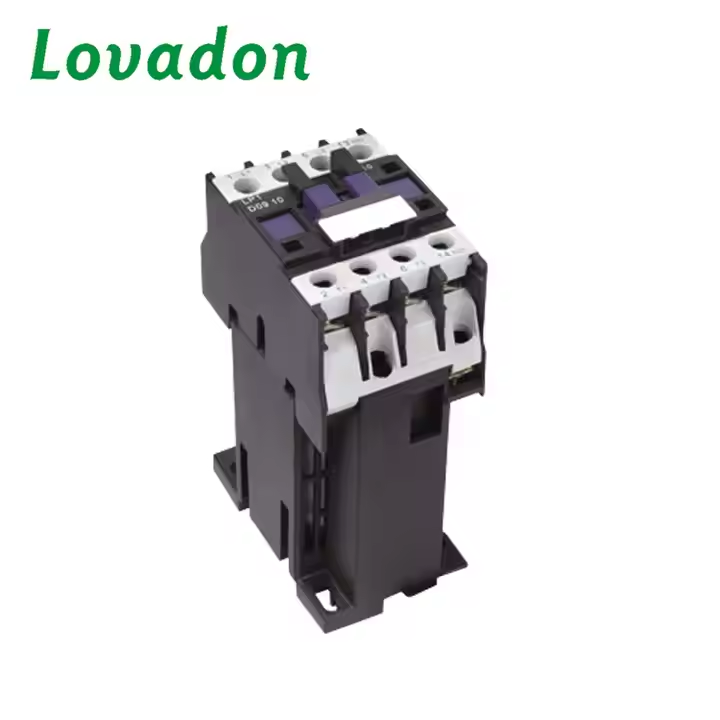

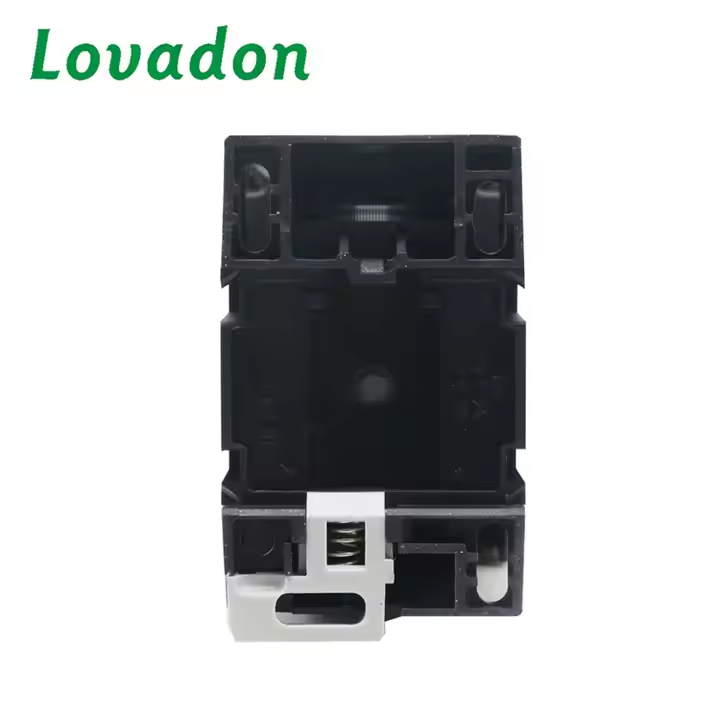

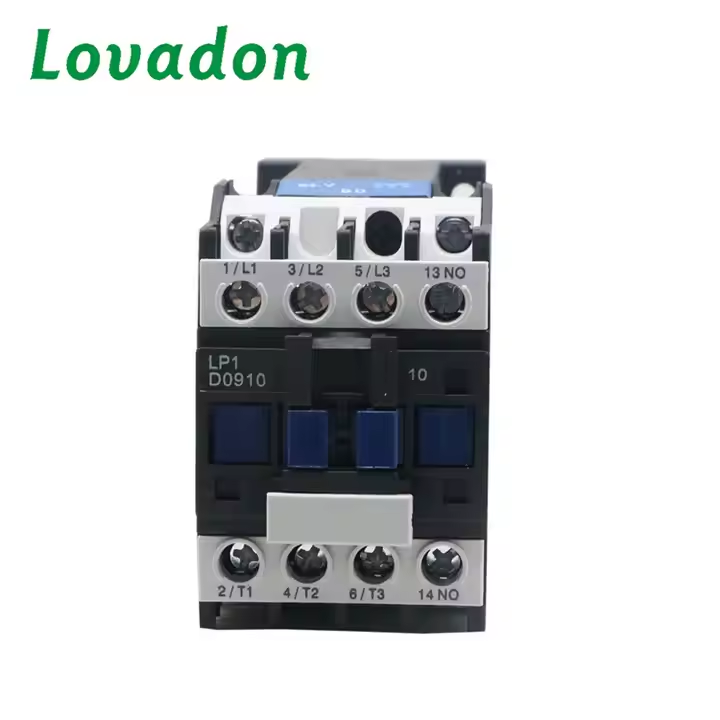

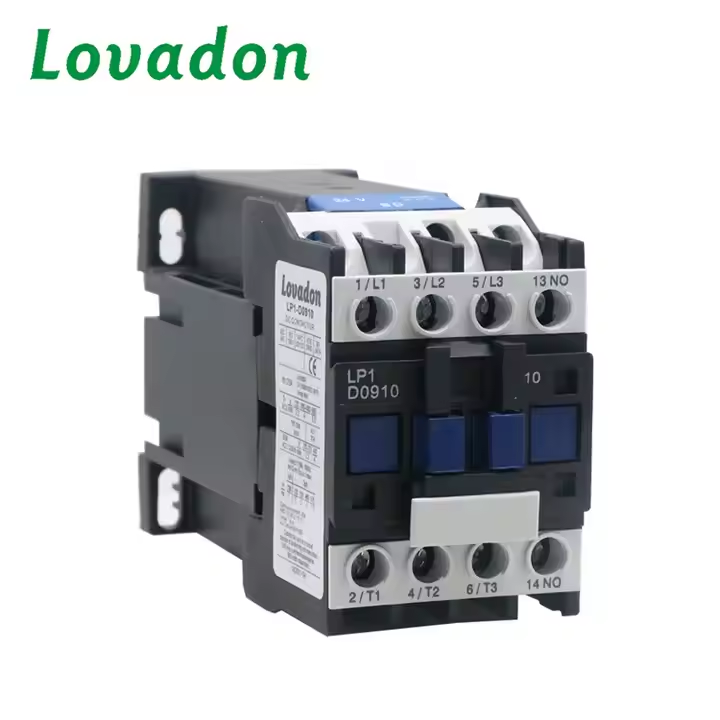

LP1(CJX2-Z) series DC operated AC contactor is suitable for 50HZ or 60HZ, rated voltage 660A, in AC-3 class 380V, rated current 9-95A circuit, for remote control circuit or other circuit on and off, can frequently start the motor. Contactor can be installed in building blocks, auxiliary contact set of air delay head, thermal relay (over 40A for discrete installation) and other accessories. The contact alignment has the characteristics of stable operation, small suction current and no noise during operation.

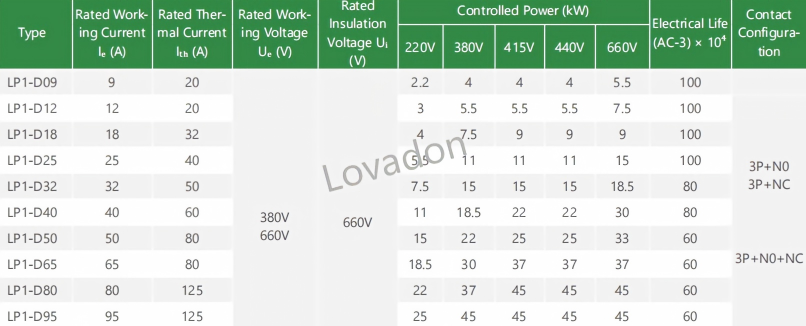

Technical Parameters
| Type | Rated working current Ale (A) | Rated heat current 1th (A) | Rated working voltage Ue (V) | Rated insulating voltage Ue (V) | Controllecd power(kw) | Eletrical life (AC-3)10 | Contacts
Number |
| 220V | 380V | 415V | 440V | 660V |
| LP1-D09 | 9 | 20 | 380V
660V | 660V | 2.2 | 4 | 4 | 4 | 5.5 | 100 |
|
| LP1-D12 | 12 | 20 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 100 | 3P+N0
3P+NC
3P+N0+NC |
| LP1-D18 | 18 | 32 | 4 | 7.5 | 9 | 9 | 9 | 100 |
| LP1-D25 | 25 | 40 | 5.5 | 11 | 11 | 11 | 15 | 100 |
| LP1-D32 | 32 | 50 | 7.5 | 15 | 15 | 15 | 18.5 | 80 |
| LP1-D40 | 40 | 60 | 11 | 18.5 | 22 | 22 | 30 | 80 |
| LP1-D50 | 50 | 80 | 15 | 22 | 25 | 25 | 33 | 60 |
| LP1-D65 | 65 | 80 | 18.5 | 30 | 37 | 37 | 37 | 60 |
| LP1-D80 | 80 | 125 | 22 | 37 | 45 | 45 | 45 | 60 |
| LP1-D95 | 95 | 125 | 25 | 45 | 45 | 45 | 45 | 60 |
