General
CJX2-E/CJX2-K series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 12A in AC-3 using category , for making & breaking, fre quent ly starting & con trolling the AC mot or. Combine with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor,m echanical interloc king contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contacto r is produced according to IEC 60947-4.
Technical Parameters

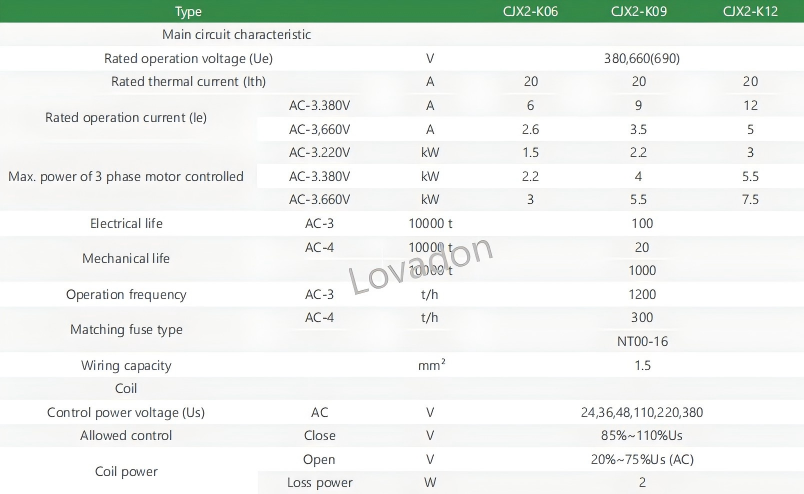

| Type |
| CJX2-K06 | CJX2-K09 | CJX2-K12 |
| Main circuit characteristic |
|
|
|
|
| Rated operation voltage (Ue) |
|
|
|
|
| Rated thermal current (Ith) |
|
|
|
|
| Rated operation current (Ie) | AC-3.380V | A | 6 | 9 | 12 |
| AC-3,660V | A | 2.6 | 3.5 | 5 |
| Max. power of 3 phase motor controlled | AC-3.220V | kW | 1.5 | 2.2 | 3 |
| AC-3.380V | kW | 2.2 | 4 | 5.5 |
| AC-3.660V | kW | 3 | 5.5 | 7.5 |
| Electrical life | AC-3 | 10000 t | 100 |
| Machanical life | AC-4 | 10000 t | 20 |
| 10000 t | 1000 |
| Operation frequency | AC-3 | t/h | 1200 |
Matching fuse type
Wiring capacity
| AC-4 | t/h | 300 |
|
| NT00-16 |
| mm2 | 1.5 |
| Coil |
|
|
|
| Control power voltage (Us) | AC | V | 24,36,48,110,220,380 |
| Allowed control | Close | V | 85%~110%Us |
| Coil power | Open | V | 20%~75%Us (AC) |
| Loss power | W | 2 |
