General

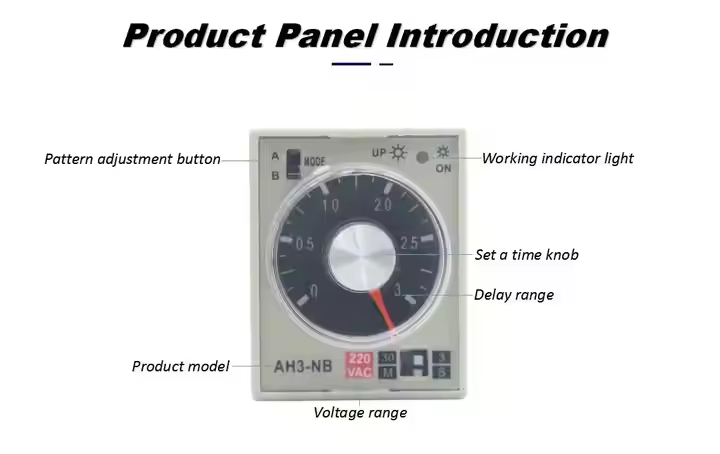

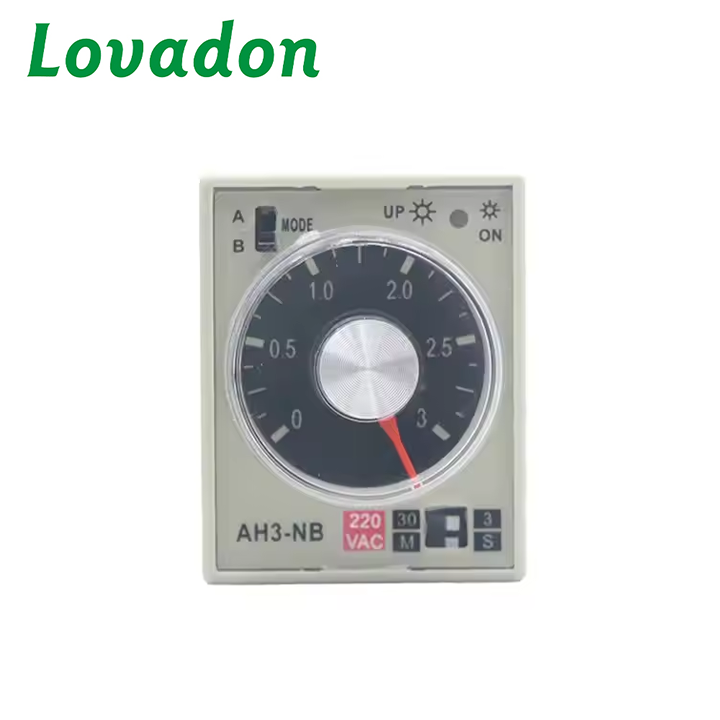

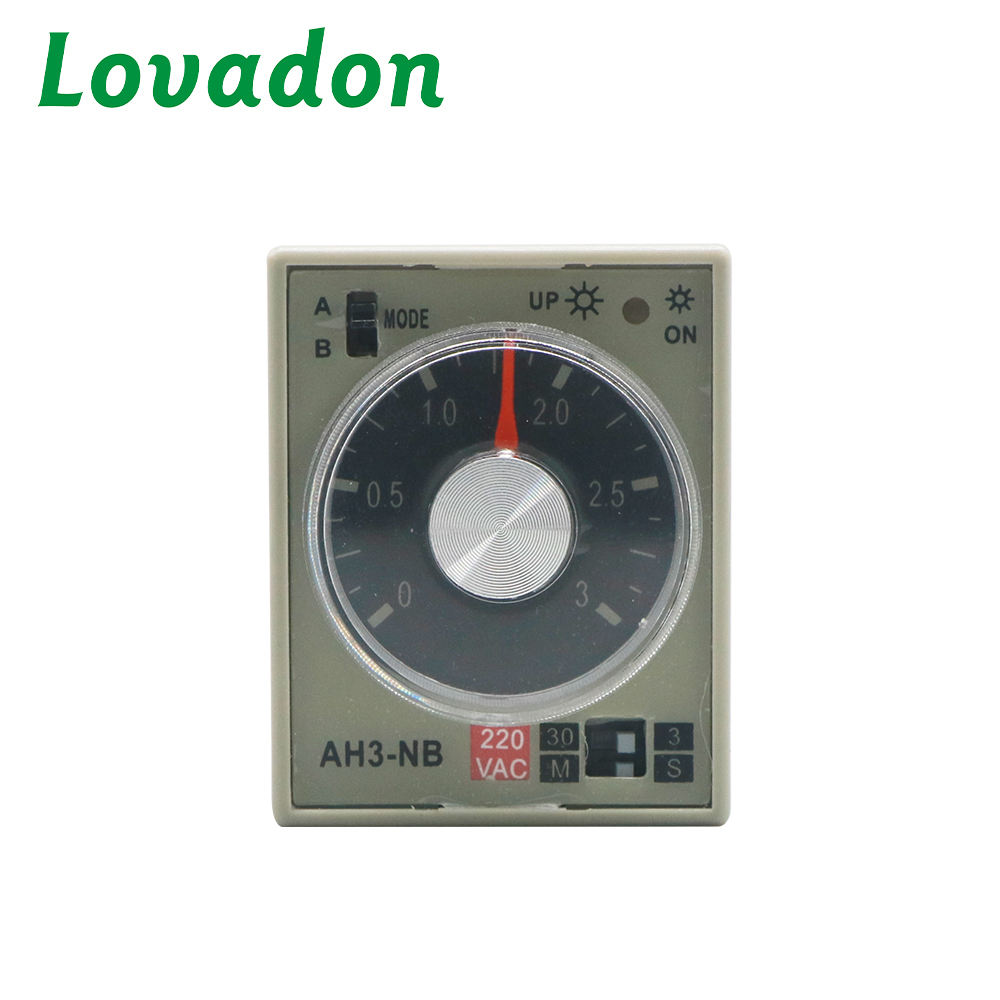

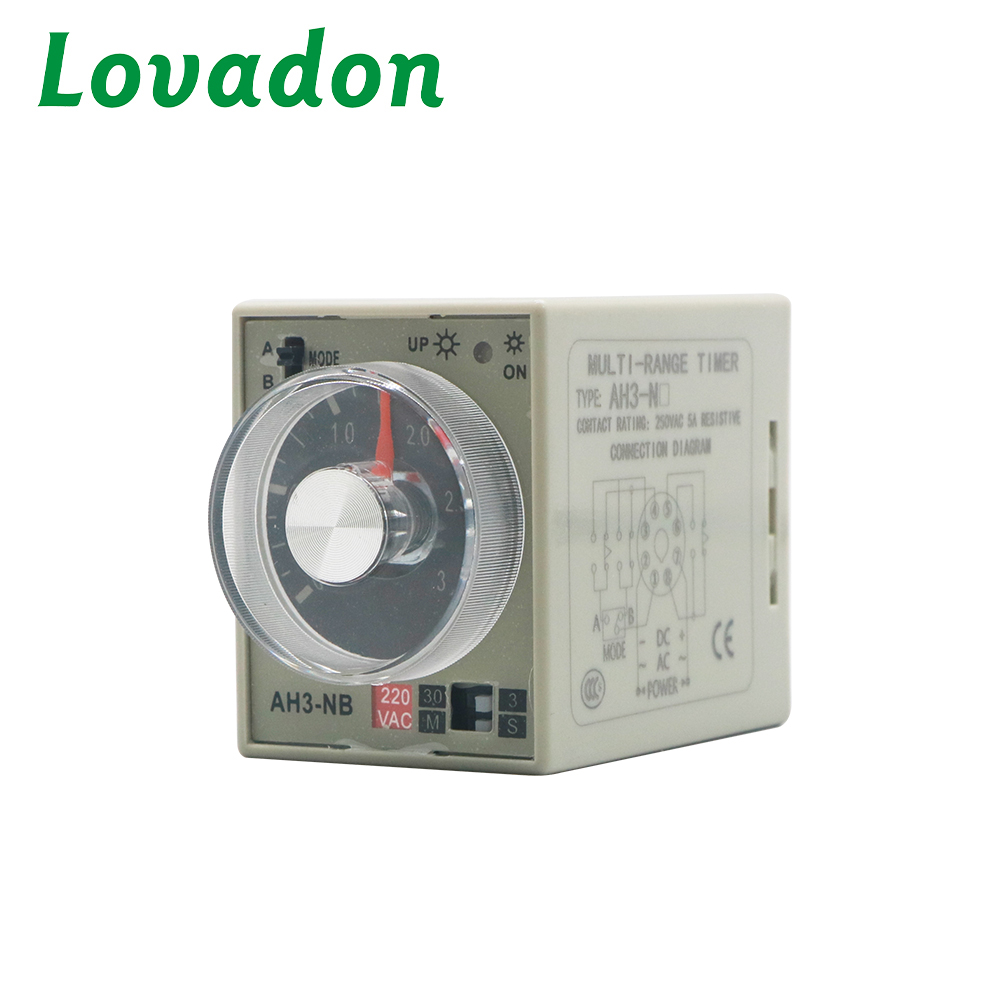

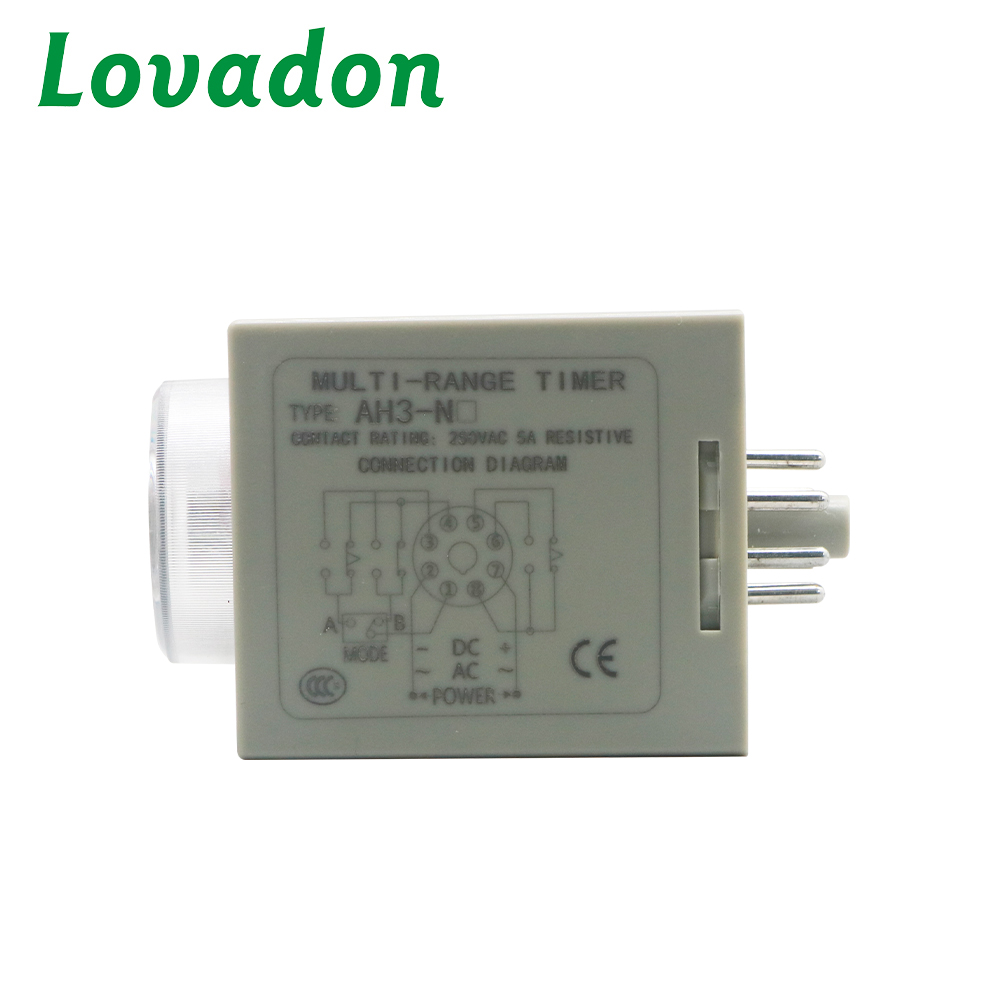

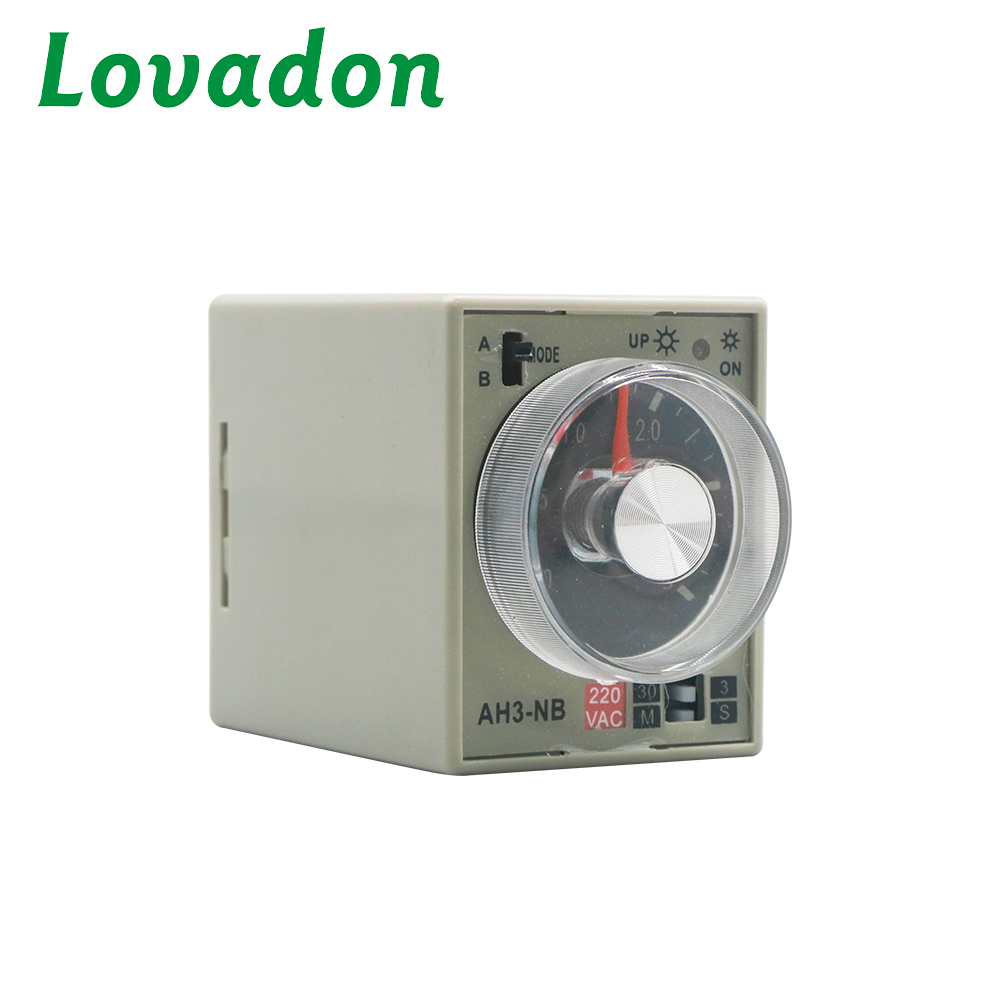

The AH3-NB Time Relay features a miniature size with plastic protection, making it suitable for delay control applications. It operates on an electromagnetic principle and is compatible with various voltage options including AC 110V, 220V, 380V, and DC 12V, 24V. The delay range is 30 seconds, ensuring precise timing. With a manufacturing accuracy of ±0.3% +0.05 seconds and a contact rating of 250VAC 5A resistive, this relay is reliable and efficient. Its power consumption is less than 5 watts, and it can operate in ambient temperatures ranging from -10°C to +50°C.
Technical Parameters
| Model Number | AH3-NB |
| Theory | Time Relay |
| Contact Load | Micropower |

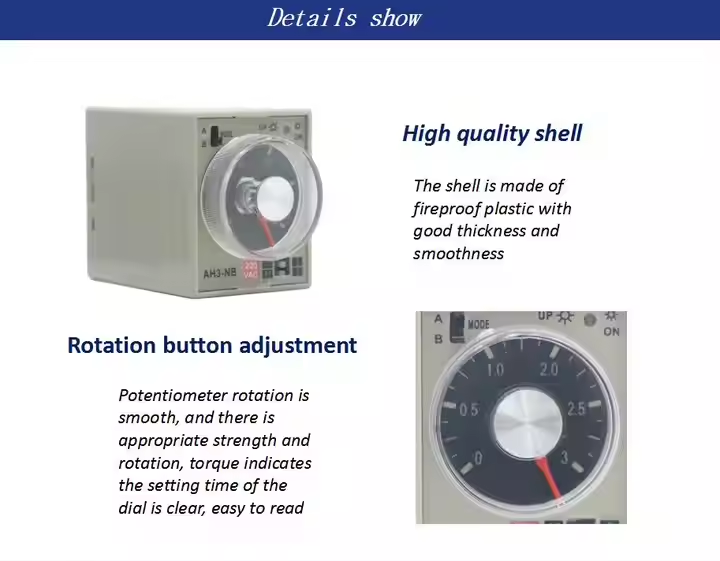

| Protect Feature | with plastic protection |
| Power supply | 85~110% rated voltage |
| Voltage | AC 110V, 220V, 380V, DC 12V, 24V |
| Delay range | 30S |
| Manufacturing accuracy | s0.3%+0.05 seconds |
| Contact rating | 250VAC 5A resistive |
| Power consumption | 5 w or less |
| Ambient temperature | -10°C+50°C |
| FREQ | 50/60HZ |
| VOLTS | AC220V |
