General

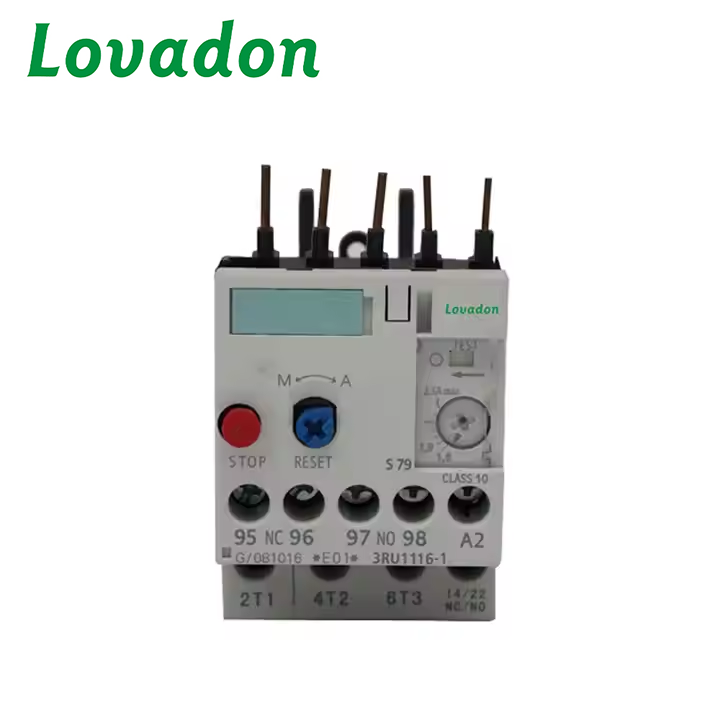

3RU1126 is a Louadon electromagnetic relay relay, an essential component in electrical systems for protecting motors against overloads. It features a manual reset button and a stop function for safe operation. The S79 switch and CLASS 10 specification indicate its specific model and rating. The 95 NC 96, 97 NO 98, and A2 terminals are crucial for wiring, ensuring current flow under normal and overload conditions. The G/081016E013RU1116-1 label denotes its manufacturing details. The 2T1, 4T2, and 6T3 markings are for identifying connections, ensuring proper wiring and functionality. The 14/22 NC/NO switch settings allow for versatile control configurations, making this relay suitable for various applications, ensuring reliable motor protection and operational safety.
Technical Parameters
| Contact Load | Weak Power |
| Model Number | 3RU1126 |
| Theory | Electromagnetic Relay |
| application | Household Appliances Relay |
| Size | Miniature |
| Protect Feature | Sealed |
| Rated frequency | 50/60 Hz |
| Mechanical Life | 10000 Times |
| Standard | CE |
| The ambient temperature | -25 C~55C |
