General

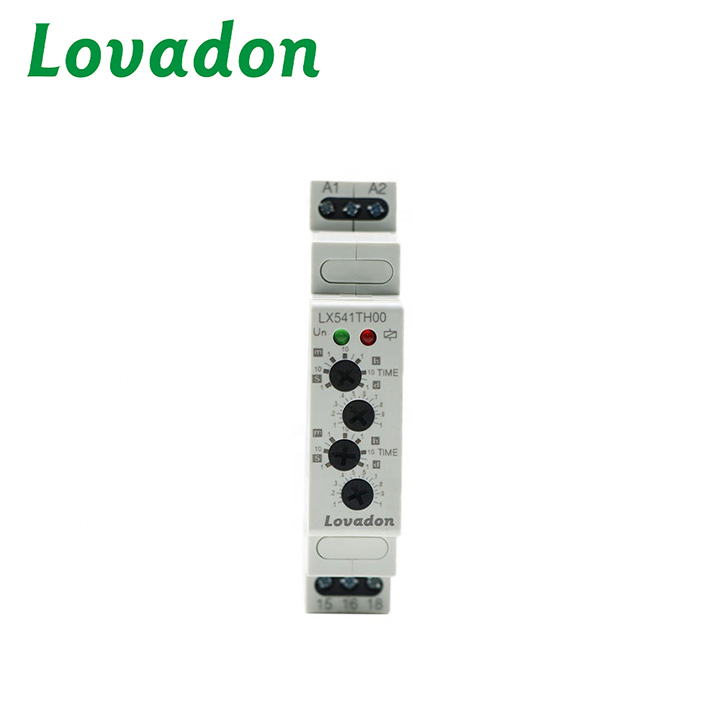

The device shown in the image is a time-delay relay module, specifically the LX541TH00 model from Lovadon. It features two terminal connectors labeled A1 and A2 for connecting to a power source or load. The module includes a green indicator light, a red indicator light, and two adjustable knobs labeled "TIME" to set the delay duration. The "Un" and "m" symbols likely represent units of measurement or specific function markings. This device is used to provide a timed delay in electrical circuits, which can be essential for applications requiring a delay before activating or shutting down a device. The compact design allows it to be easily integrated into various automation systems.
Technical Parameters
| Model Number | LX541TH00 |
| Theory | Time Relay |
| application | PCB |
| Size | Miniature |
| Protect Feature | Sealed |
| Product name | Modular Time Relay |
| Standard | CE,ROHS |
| Spec | Circulation Mode DPDT ,Second /Minute Selected |
| Operating Voltage | 220:AC220V;D24:DC24V;A24:AC24V;H00:AC/DC12-240V;More |
