General

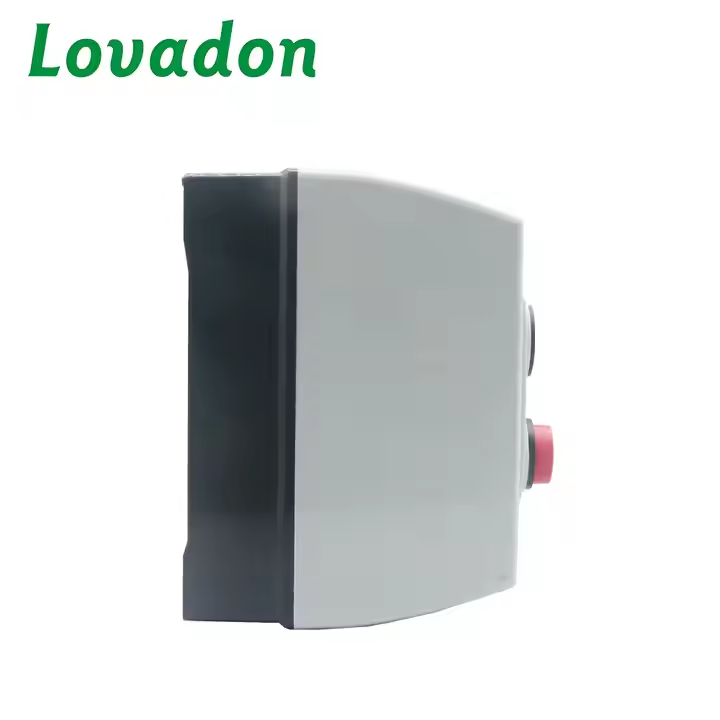

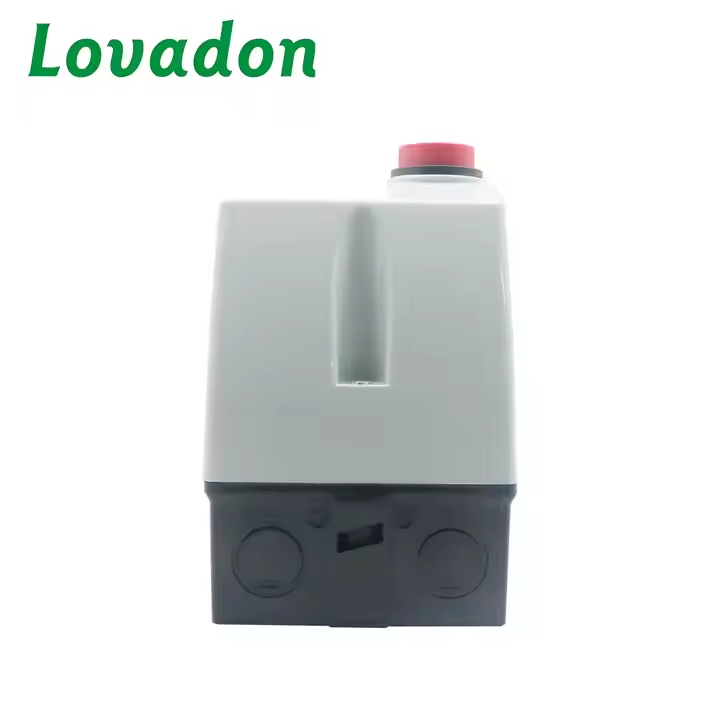

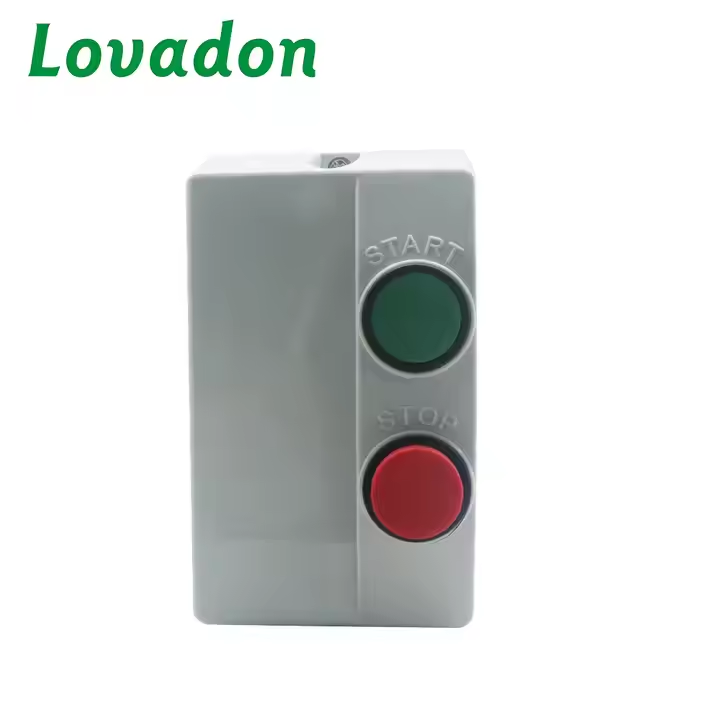

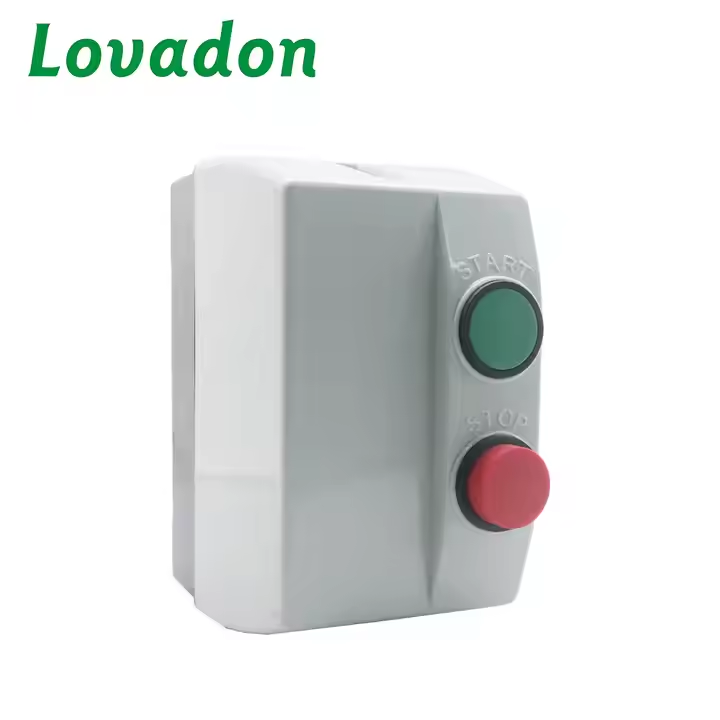

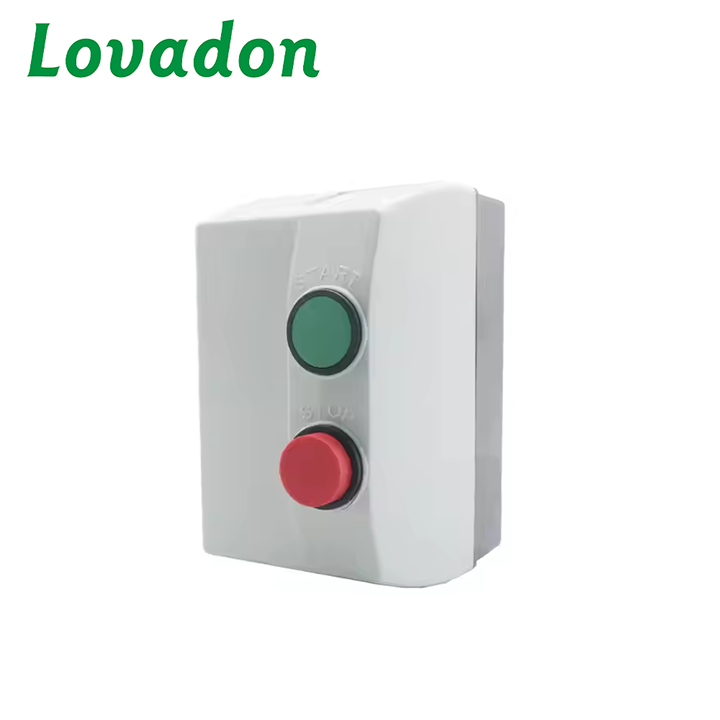

The LE2-D-09 Magnetic Starter from Lovadon, originating from Zhejiang, China, is designed for reliable control in various environments. It features a main circuit rating current of 9 amperes and is suitable for altitudes up to 2000 meters. The ambient air temperature range is -5°C to +40°C, with an average 24-hour temperature below +35°C. It can handle control voltages of 36V, 110V, 220V, or 380V at 50Hz or 60Hz. The operating conditions include a pull-in voltage of 85% to 110% of the nominal voltage and a release voltage of 20% to 75% of the nominal voltage, making it a versatile and robust solution for various industrial applications.
Technical Parameters
| Model Number | LE2-D-09 |
| Product name | LE2-D Series Magnetic Starter |
| Main Circuit Rating Current | 9 |
| Altitude | ≤2000m |
| Ambient air temperature | -5℃ ~+40℃ , average temperature of 24 hours below+35℃ |
| Coil rated control voltage | 36V, 110V, 220V, 380V |
| Coil rated control power | AC 50Hz or 60Hz |
| Operating condition | Coil pull-in voltage is (85%~110%) Us; Release voltage is (20%~75%) Us |
Yueqing Lovadon Electric Co., Ltd.
