General

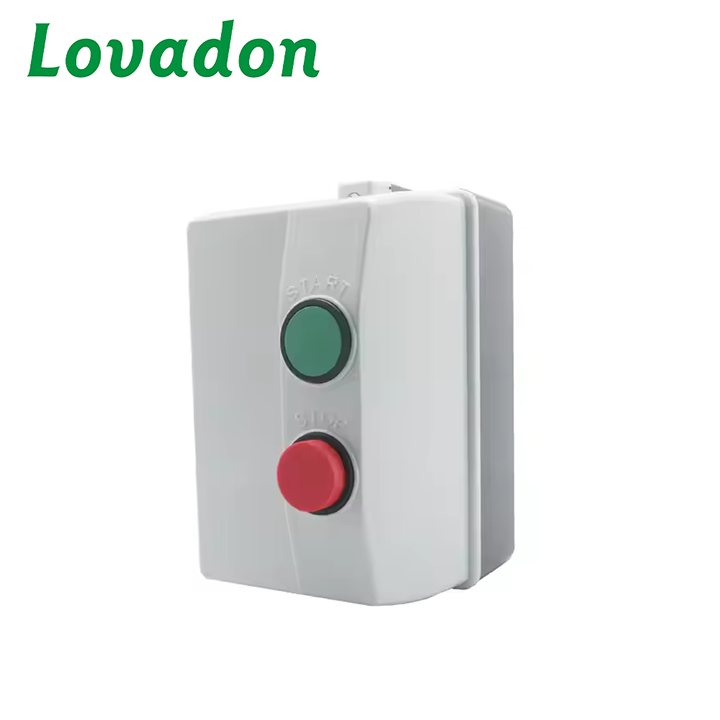

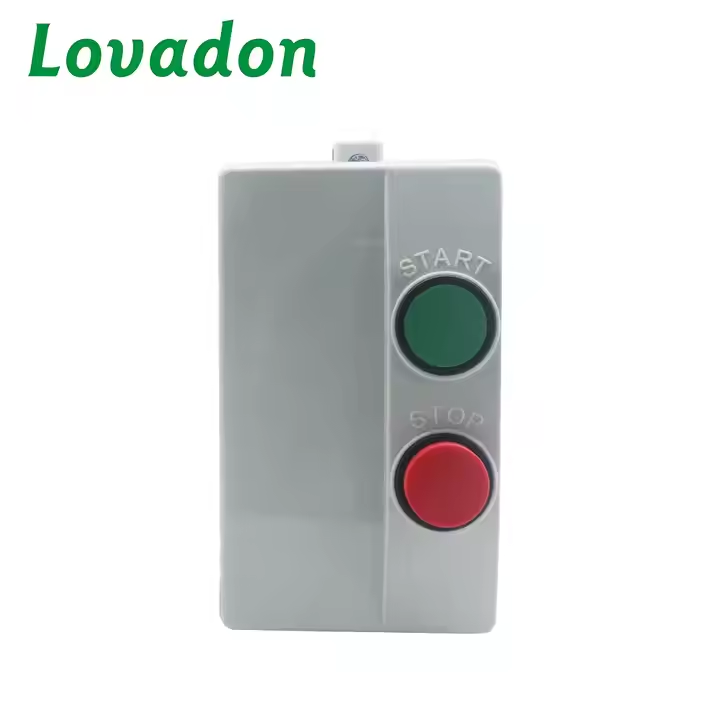

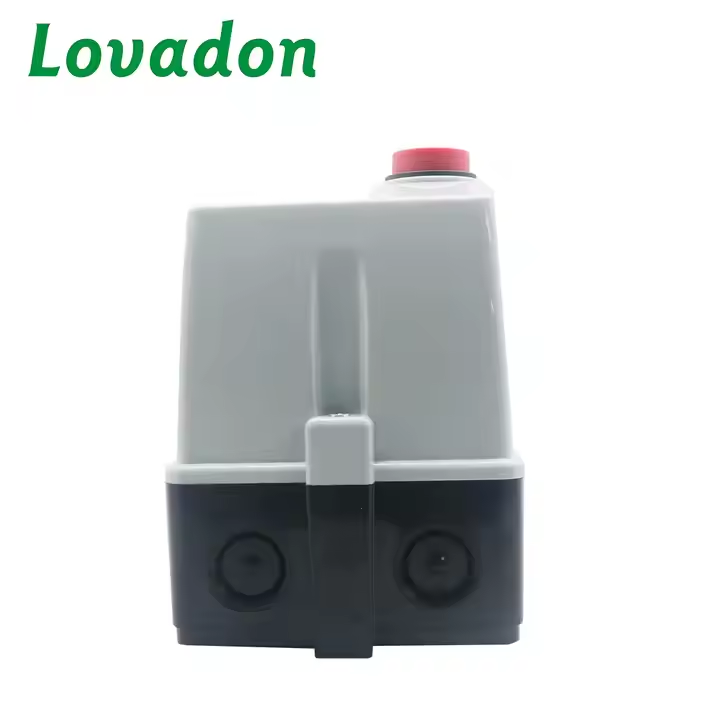

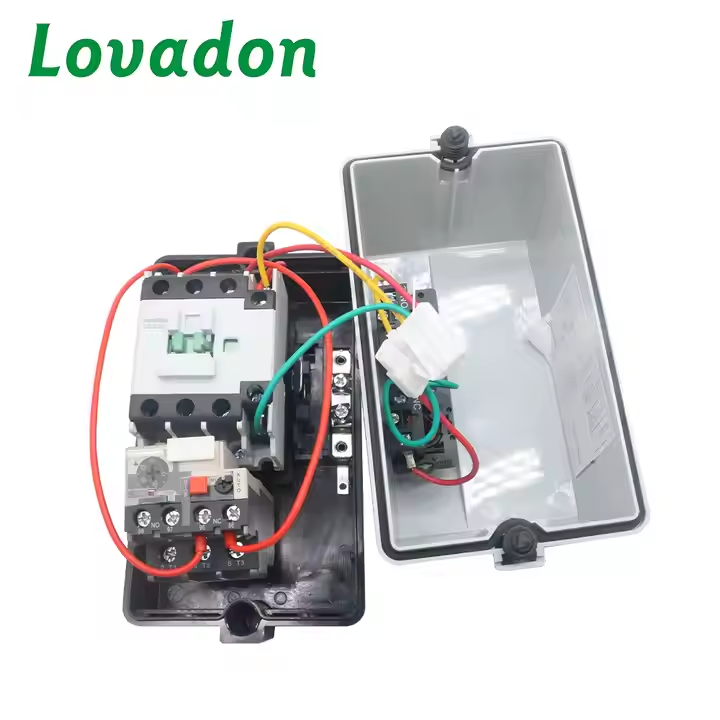

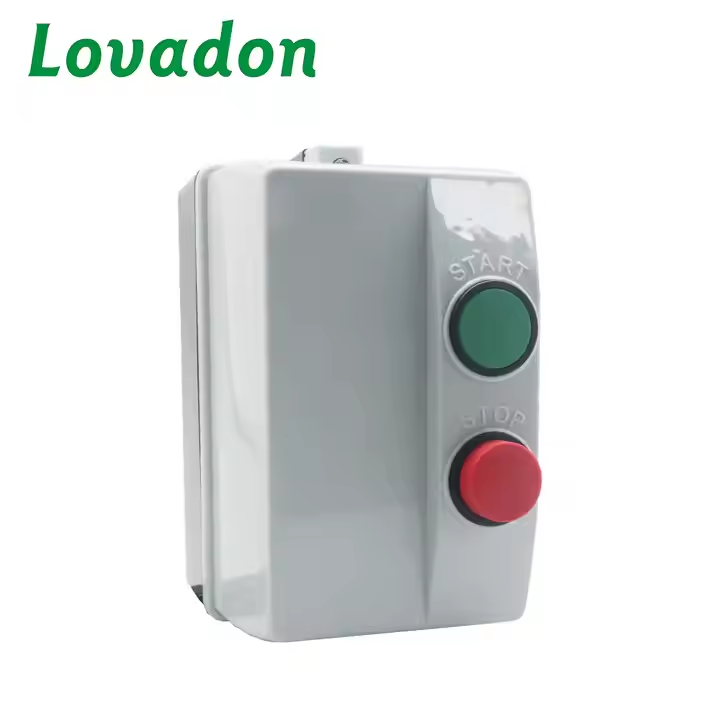

The Lovadon LE2-D-25 Magnetic Starter is designed for reliable circuit control, with a main circuit rating of 25 amperes. It is engineered to operate efficiently in altitudes of up to 2000 meters and in ambient temperatures ranging from -5°C to +40°C, with a 24-hour average below +35°C. This series is versatile, supporting coil rated control voltages of 36V, 110V, 220V, and 380V, and is compatible with AC 50Hz or 60Hz power. The pull-in voltage is between 85% to 110% of the rated voltage, and the release voltage is between 20% to 75% of the rated voltage, ensuring robust and safe operation.
Technical Parameters
| Model Number | LE2-D-25 |
| Product name | LE2-D Series Magnetic Starter |
| Main Circuit Rating Current | 25 |
| Altitude | ≤2000m |
| Ambient air temperature | -5℃ ~+40℃ , average temperature of 24 hours below+35℃ |
| Coil rated control voltage | 36V, 110V, 220V, 380V |
| Coil rated control power | AC 50Hz or 60Hz |
| Operating condition | Coil pull-in voltage is (85%~110%) Us; Release voltage is (20%~75%) Us |
