CJX8-09 New Arrival CJX8 Series Contactor 3 Phase 220V~690V High Voltage Contact AC Contactor for Industrial Automation

The CJX8 series, manufactured by Lovadon in Zhejiang, China, features an AC contactor designed for a wide range of applications. With a rated operation current of 9-95A and a voltage rating of 220V~690V, these contactors are versatile and reliable. The 3-pole design and insulation voltage of 690V ensure safety and performance. Easy to install on a DIN rail or via screws, the CJX8 series complies with CE, CB, CCC, and TUV certifications,···
Request A Quick Quote

General

The CJX8 series, manufactured by Lovadon in Zhejiang, China, features an AC contactor designed for a wide range of applications. With a rated operation current of 9-95A and a voltage rating of 220V~690V, these contactors are versatile and reliable. The 3-pole design and insulation voltage of 690V ensure safety and performance. Easy to install on a DIN rail or via screws, the CJX8 series complies with CE, CB, CCC, and TUV certifications, making it a trusted choice for various electrical systems.

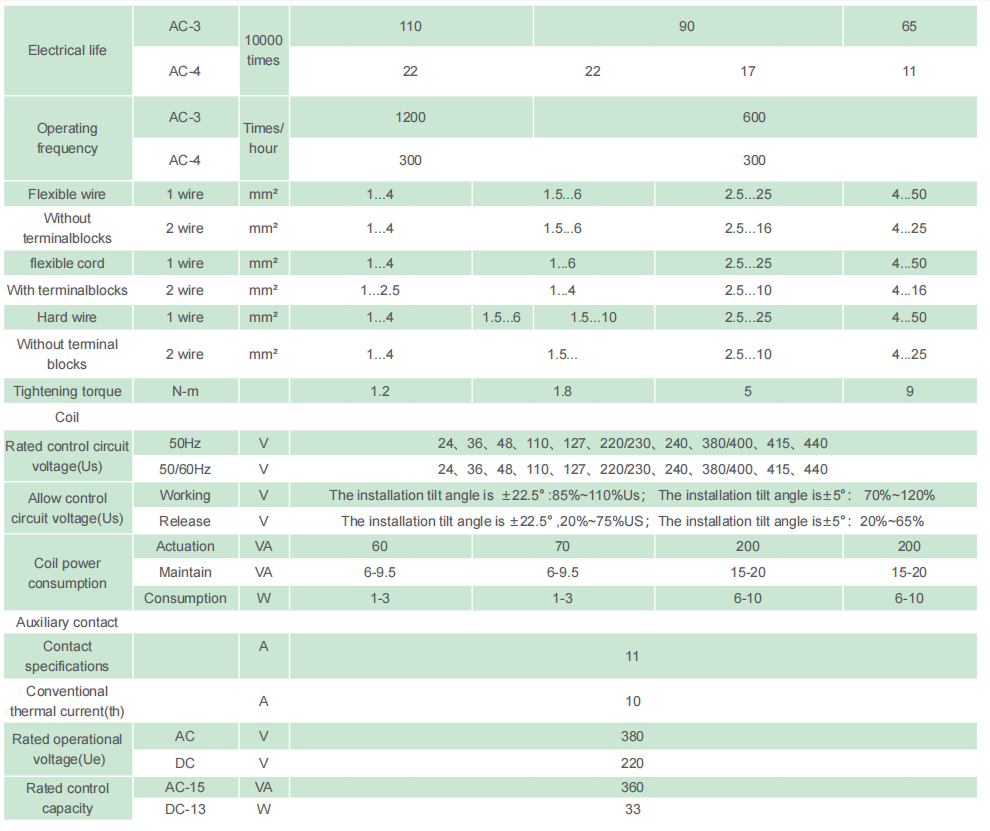

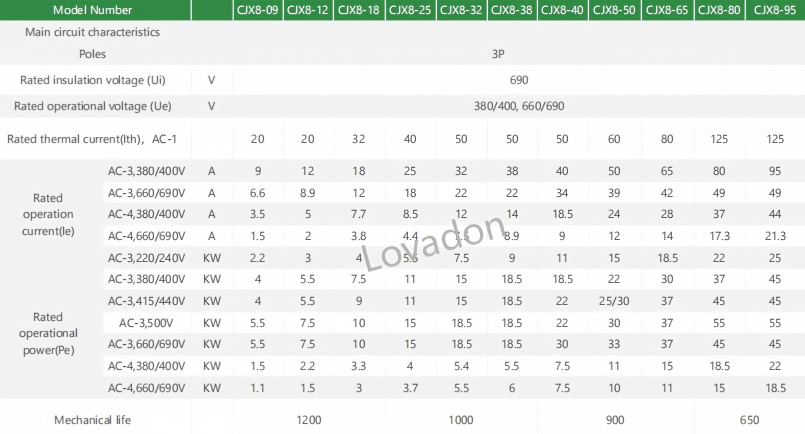

Technical Parameters

Electricity TypeAC
Product nameAC Contactor
Rated operation current(Ie)9-95A
Rated operation voltage(Ue)220V~690V
Pole number3
Rated insulation voltage690V
InstallationDin rail and screw installation
CertificationCE, CB, CCC, TUV
