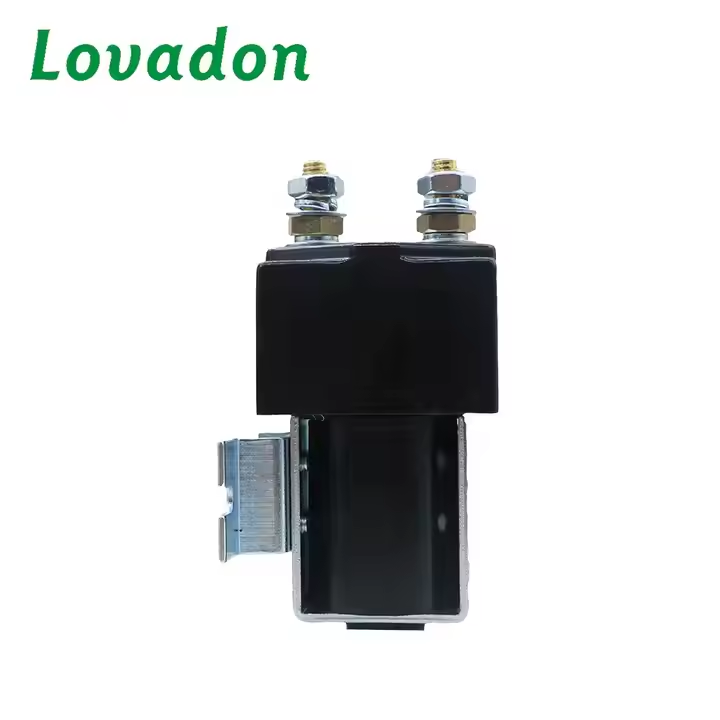

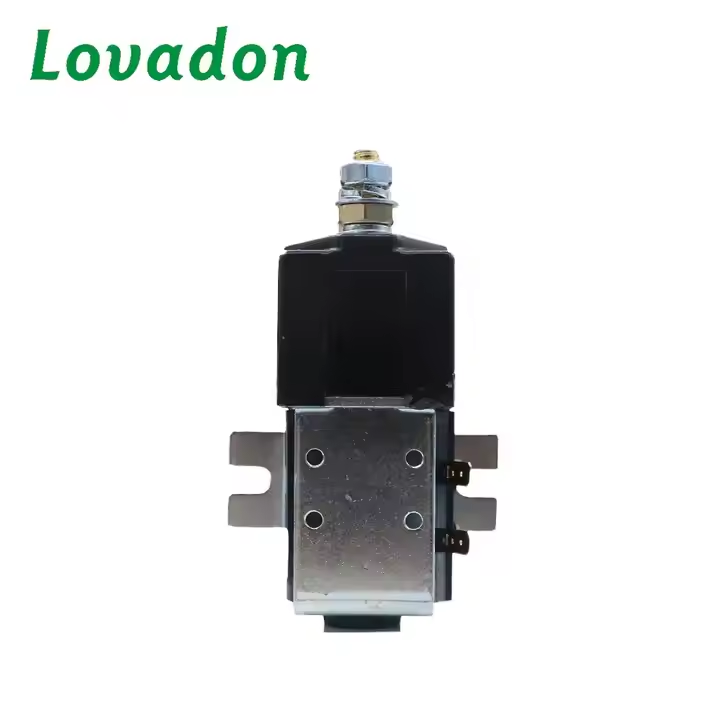

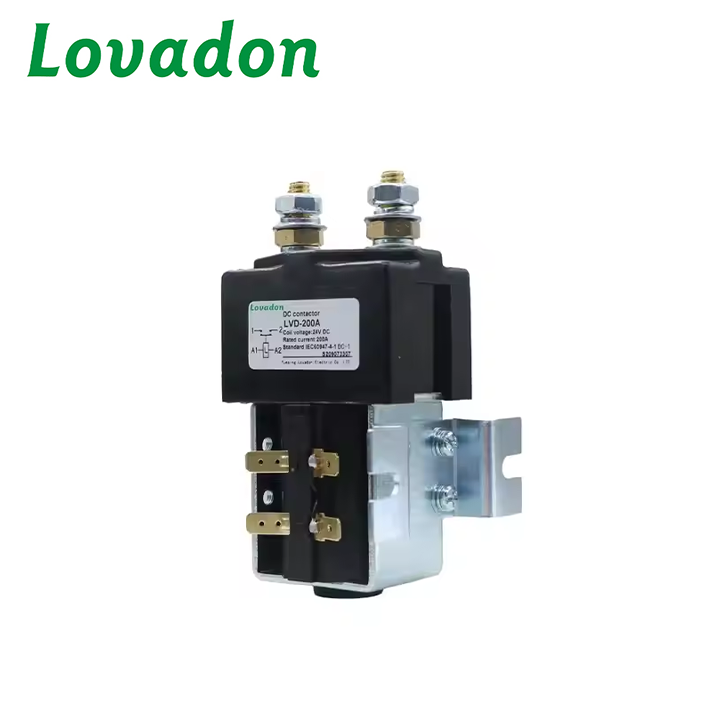

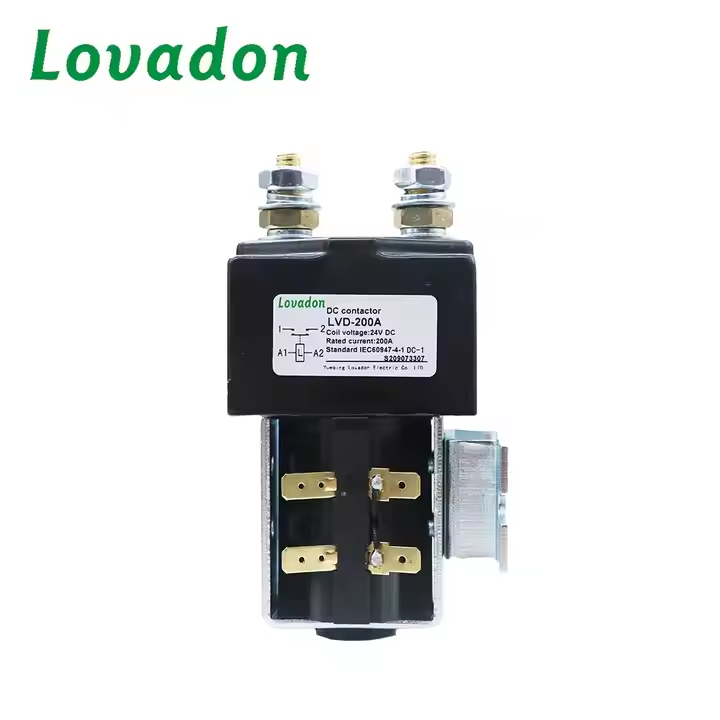

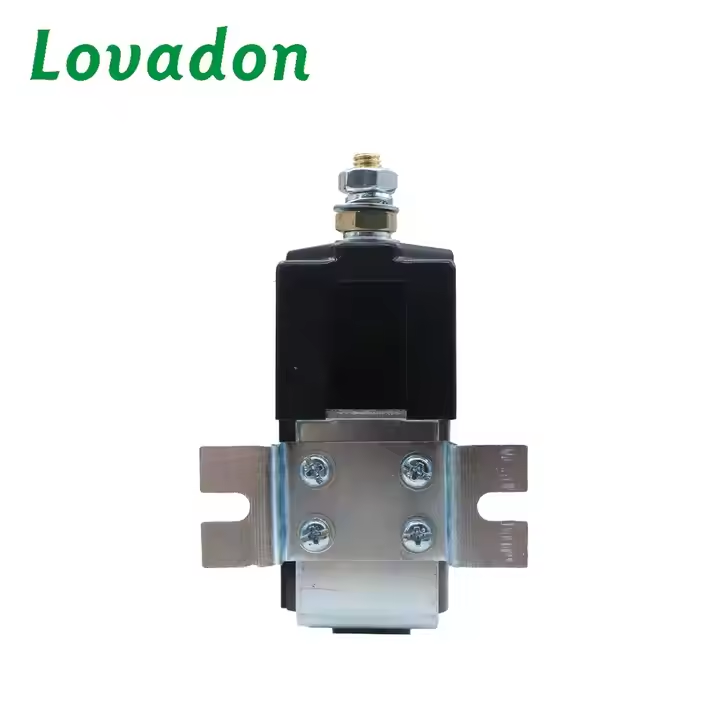

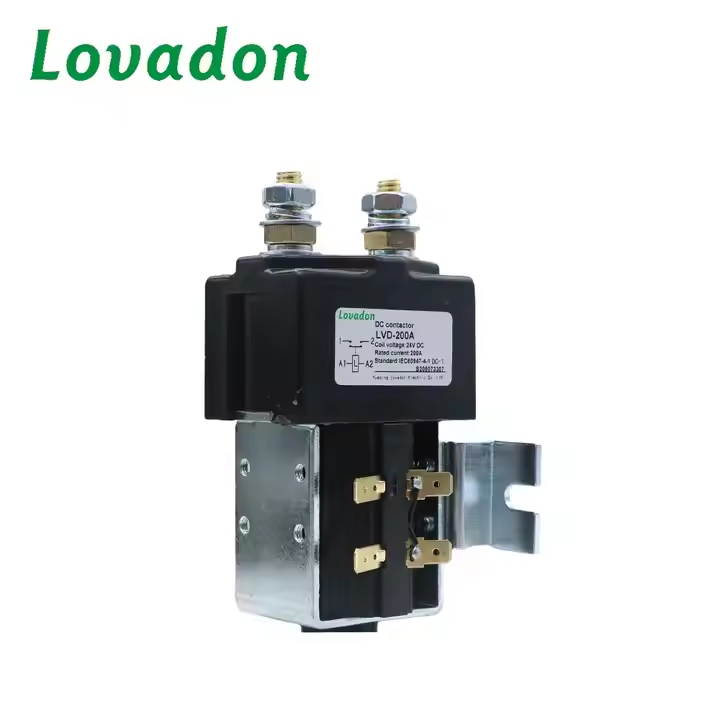

LVD 200A Best Selling Mini PV Solar Control Contactor CE Certified Modular Magnetic Contactor for 36V 12V 24V DC

LVD has one normally open contact,suitable for electric vehicles,telecommunications equipment,construction,electric vehicles,electric forklifts,trains,ships,uninterruptible power supply and so on The control system.Technical ParametersModel NumberLVD 200AInsulation resistance20MΩconnect maximum contact bounce time10msDisconnect maximum contact bounce time3msElectric strength to resist50Hz/60Hz 1000VAC 1minuteMain Circuit Rating Current···
Request A Quick Quote

General

LVD has one normally open contact,suitable for electric vehicles,telecommunications equipment,construction,electric vehicles,electric forklifts,trains,ships,uninterruptible power supply and so on The control system.

Technical Parameters

Model NumberLVD 200A
Insulation resistance20MΩ
connect maximum contact bounce time10ms
Disconnect maximum contact bounce time3ms
Electric strength to resist50Hz/60Hz 1000VAC 1minute
Main Circuit Rating Current200A
ColorBlack
Temperature rise of coil (K)≤60
Electricity TypeDC
