General
LS-N series Ac contactor are suitable for Ac 50Hz or 60Hz, rated voltage up to 660, mainly used as putting through longistancbreaking circuit and freouently starting or controling AC motor，it can also be used for counter-connection breaking of squirrel-cage motor in the case ofreducing working current.

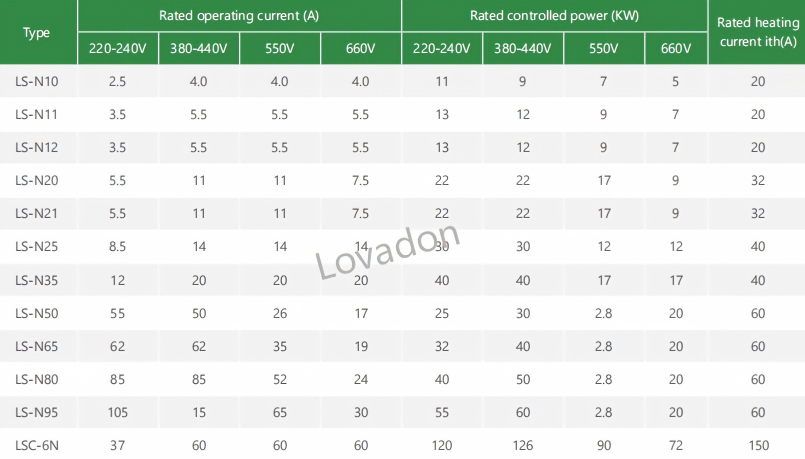

Technical Parameters
| Type | （A）Ratedoperatingcurrent
| （KW）Ratedcontrolledpower | Rated heating current ith（A） |
| 220-240V | 380-440V | 550V | 660V | 220-240V
| 380-440V | 550V | 660V |
| LS-N10 | 2.5 | 4.0 | 4.0 | 4.0 | 11 | 9 | 7 | 5 | 20 |
| LS-N11 | 3.5 | 5.5 | 5.5 | 5.5 | 13 | 12 | 9 | 7 | 20 |
| LS-N12 | 3.5 | 5.5 | 5.5 | 5.5 | 13 | 12 | 9
| 7 | 20 |
| LS-N20 | 5.5 | 11 | 11 | 7.5 | 22 | 22 | 17 | 9 | 32 |
| LS-N21 | 5.5 | 11 | 11 | 7.5 | 22 | 22 | 17 | 9 | 32 |
| LS-N25 | 8.5 | 14 | 14
| 14 | 30 | 30 | 12 | 12 | 40 |
| LS-N35 | 12 | 20 | 20 | 20 | 40 | 40 | 17 | 17 | 40 |
| LS-N50 | 55 | 50 | 26 | 17 | 25 | 30 | 2.8 | 20 | 60 |
| LS-N65 | 62 | 62 | 35 | 19 | 32 | 40 | 2.8 | 20 | 60 |
| LS-N80 | 85 | 85 | 52 | 24 | 40 | 50 | 2.8 | 20 | 60 |
| LS-N95 | 105 | 15 | 65 | 30 | 55 | 60 | 2.8 | 20 | 60 |
| LSC-6N | 37 | 60 | 60 | 60 | 120 | 126 | 90 | 72 | 150 |
Yueqing Lovadon Electric Co., Ltd.
