General

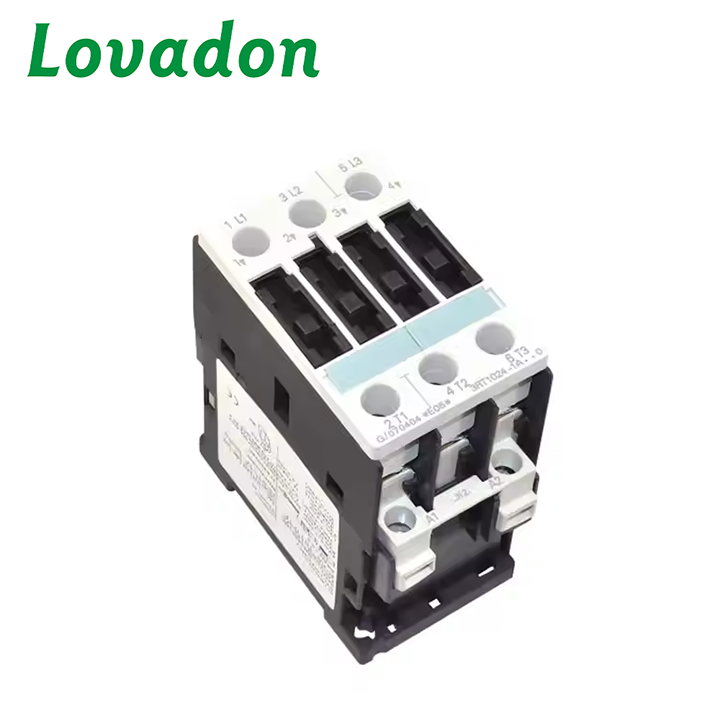

The 3RT AC contactors are suitable for frequency of 50/50Hz,rated insulation voltage up to 690-1000V,rated operational current up to 7A-95 A at rated operational voltage up to 380V under the utilization category AC-3, They are mainly use d for making breaking electric circuits at a ling distance and for frequent staring stopping and reversing control of AC motos,
They comply witch IEC947,VDE0660, GB14048.
Technical Parameters
| Model | Rated current | Type | Voltage |
| 3RT-1016 | S00
9A | 3RT1016-1AB01
3RT1016-1AK61
3RT1016-1AR11 con(INA+ONC) | 24V
120V
220V
440V |
| 3RT-1026 | S0
9A | 3RT1016-1AB60
3RT1016-1AN20
3RT1016-1AR10 | 120V
220V
440V |
| 3RT-1034 | S2
32A | 3RT1034-1AJ16
3RT1034-1AN16
3RT1034-1AR16 | 115V
220V
440V |
| 3RT-1036 | S2
50A | 3RT1036-1AJ16
3RT1036-1AN16
3RT1036-1AR16 | 115V
220V
440V |
| 3RT-1045 | S3
80A | 3RT1045-1AJ16
3RT1045-1AN16
3RT1045-1AR16 | 115V
220V
440V |
Key attributes
| Product name | AC Contactor |
| Main Circuit Rating Current | 9A 18A 25A 32A 40A 65A 80A 95A |
| Color | White or customized |
| Rated frequency | 50/60 Hz |
| Mechanical Life | 100000 Times |
| Electric life | 100000 times |
| Material | nylon |
