General
The table lists the Type Voltage and corresponding Voltage (V) ratings for three models, LX1-D2, LX1-D4, and LX1-D6. These models accommodate various voltages ranging from 12V to 660V and are designed for 50Hz and 60Hz frequencies. The table details the pin assignments for each voltage rating, with some pins designated for specific functions across the models. This information is crucial for electrical connectivity and compatibility in diverse applications.
Technical Parameters

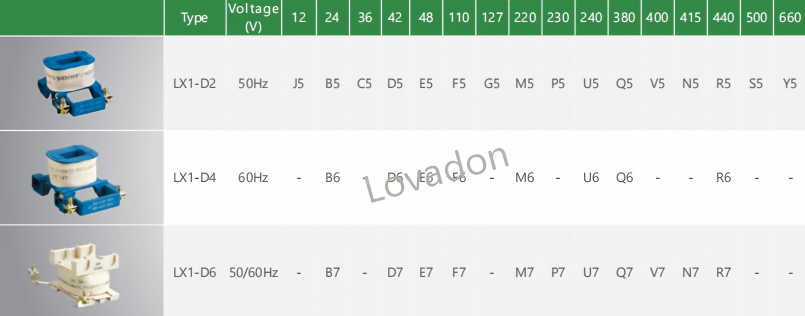

| Type Voltage | Voltage(V) | 12 | 24 | 36 | 42 | 48 | 110 | 127 | 220 | 230 | 240 | 380 | 400 | 415 | 440 | 500 | 660 |
| LX1-D2 | 50Hz | J5 | B5 | C5 | D5 | E5 | F5 | G5 | M5 | P5 | U5 | Q5 | V5 | N5 | R5 | S5 | Y5 |
| LX1-D4 | 60Hz | - | B6 | - | D6 | E6 | F6 | - | M6 | - | U6 | Q6 | - | - | R6 | - | - |
| LX1-D6 | 50/60Hz | - | B7 | - | D7 | E7 | F7 | - | M7 | P7 | U7 | Q7 | V7 | N7 | R7 | - | - |
