General

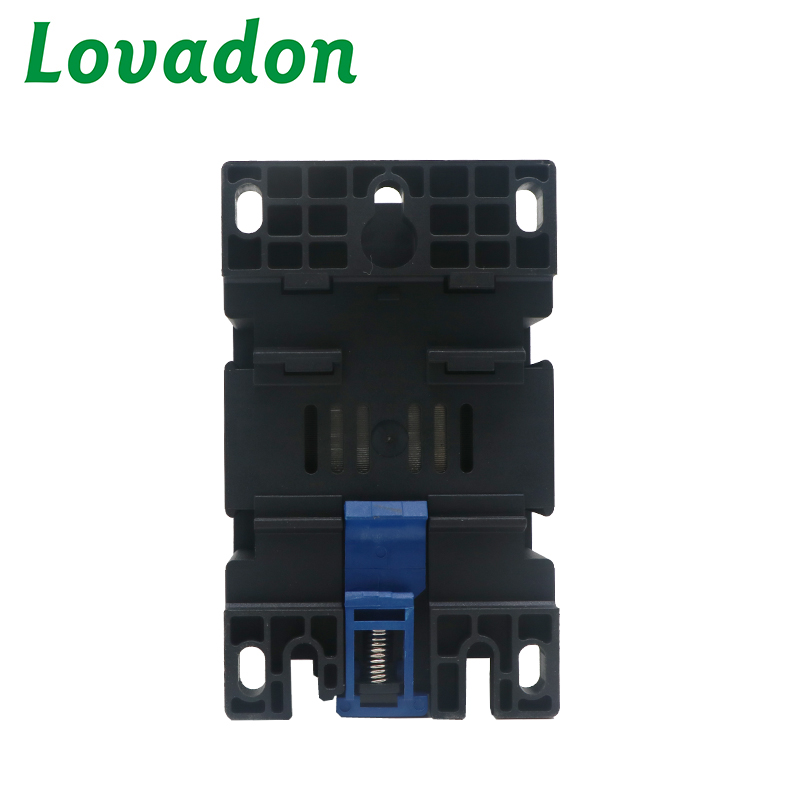

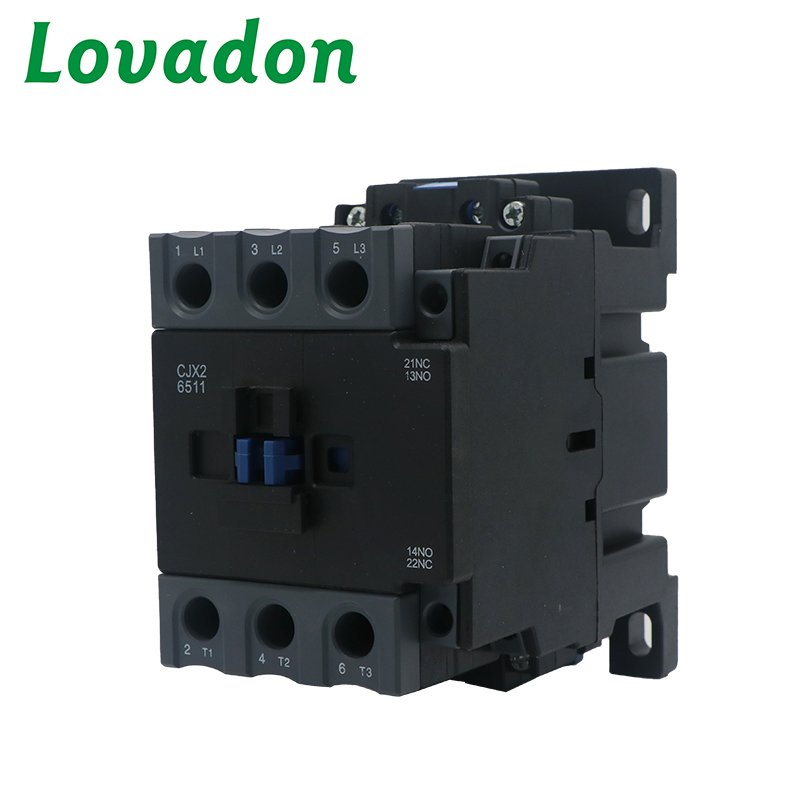

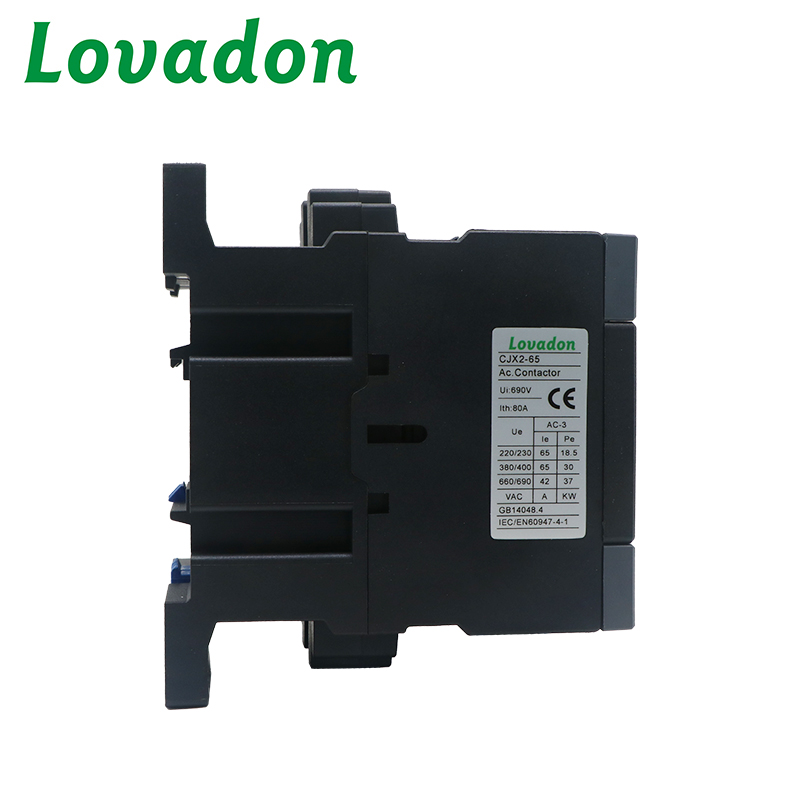

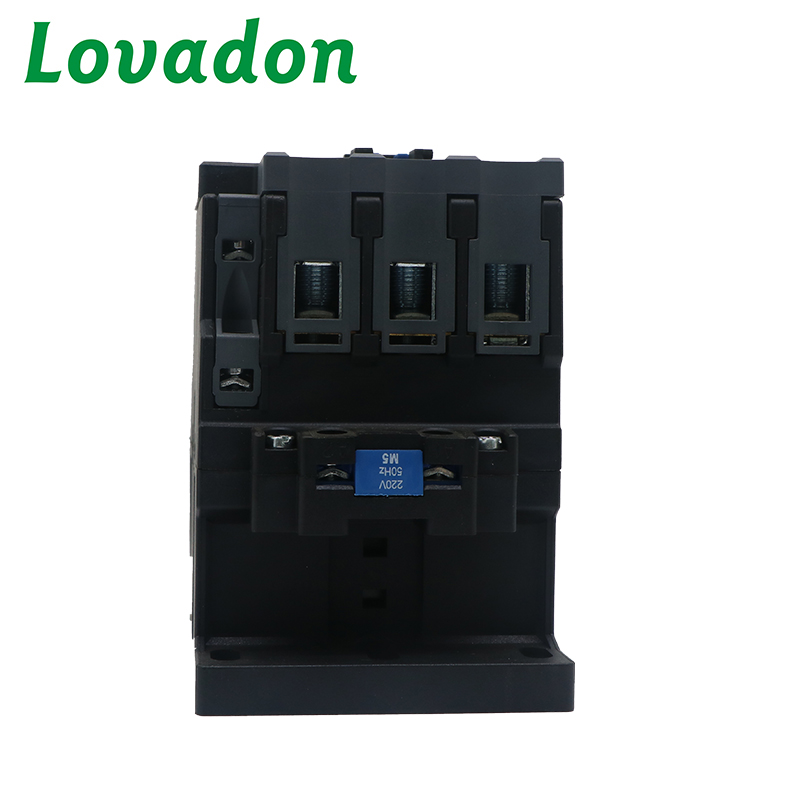

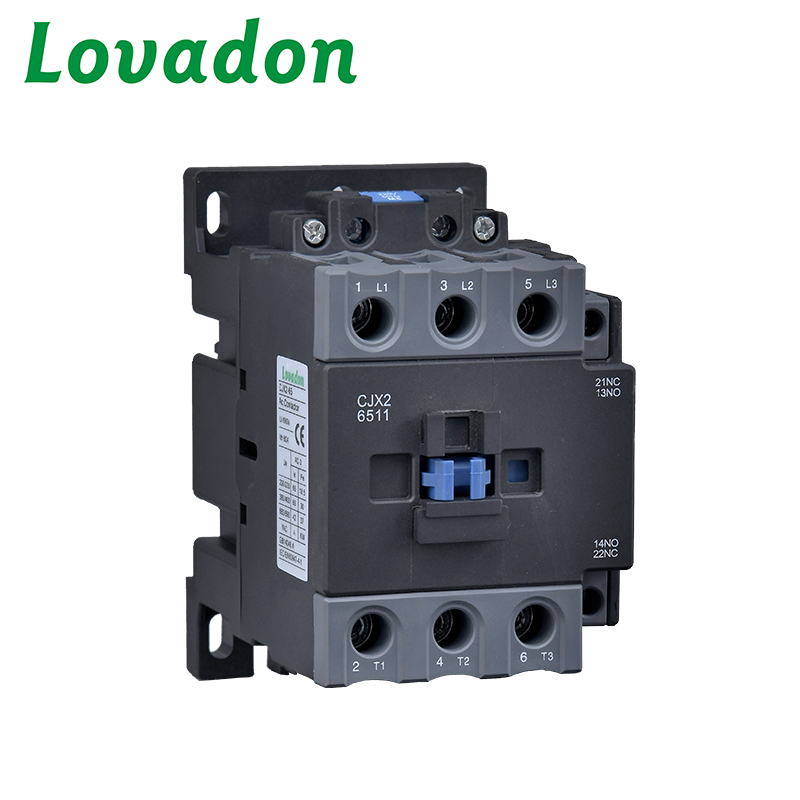

The Lovadon AC Contactor, model CJX2-65, is a reliable and versatile electrical component designed for various applications. With a mechanical life of 10 million operations and a rated frequency of 50/60 Hz, it ensures long-lasting and efficient performance. The product is certified with the CE mark, adhering to IEC 60947-4 and GB14048-4 standards, ensuring quality and safety. It features a PA66 material construction, making it durable and resistant to wear. Available in white or customized colors, the AC Contactor is a key component in electrical systems, providing reliable switching and control functions.
Technical Parameters
| Type | CJX2-09 | CJX2-12 | CJX2-18 | CJX2-25 | CJX2-32 | CJX2-40 | CJX2-50 | CJX2-65 | CJX2-80 | CJX2-95 |
| Rated operation voltage (Ue) | V | 380,660 |
| Rated insulation voltage (Ui) | V | 690 |
| Rated thermal current (Ith) | A | 20 | 25 | 32 | 40 | 50 | 60 | 75 | 80 | 110 | 125 |
| Rated operation current (Ie) | AC-3.380V | A | 9 | 12 | 16 | 25 | 32 | 40 | 50 | 63 | 80 | 95 |
| AC-3,660V | A | 6.6 | 8.9 | 12 | 18 | 21 | 34 | 39 | 42 | 49 | 55 |
| AC-4.380V | A | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 41 |
| AC-4.660V | A | 1.5 | 2 | 3.8 | 4.4 | 7.5 | 9 | 12 | 14 | 17.3 | 21.3 |
| Max. power of 3 phase motor controlled | AC-3.220V | kW | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| AC-3.380V | kW | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
| AC-3.660V | kW | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 55 |
| Electrical life | AC-3 | 10000 t | 100 | 80 | 80 | 60 |
| AC-4 | 10000 t | 20 | 20 | 15 | 10 |
| Machinical life | 10000 t | 1000 | 800 | 800 | 600 |
| Operation frequency | AC-3 | t/h | 1200 | 600 | 600 | 600 |
| AC-4 | t/h | 300 | 300 | 300 | 300 |
| Matching fuse type | RT16-20 | RT16-20 | RT16-32 | RT16-40 | RT16-50 | RT16-63 | RT16-80 | RT16-80 | RT16-100 | RT16-125 |
| Matching thermal relay type | JR28-25 | JR28-25 | JR28-25 | JR28-25 | JR28-36 | JR28-93 | JR28-93 | JR28-93 | JR28-93 | JR28-93 |
| Wiring capacity |
| mm² | 1.5 | 1.5 | 2.5 | 4 | 6 | 10 | 16 | 16 | 25 | 35 |
| Coil |
|
| Control power voltage (Us) | AC | V | 36,110,127,220,380 |
| Allowed control circuit voltage | Close | V | 85%~110%Us |
| Open | V | 20%~75%Us (AC) |
| Coil power | Close | VA | 70 | 110 | 200 |
| Keeping | VA | 8 | 11 | 20 |
| Loss power | W | 1.8~2.7 | 3~4 | 6~10 |
| Auxiliary contact |
|
| Rated thermal current (Ith) | A | 10 |
| Rated operation voltage (Ue) | AC | V | 380 |
| DC | V | 220 |
| Rated control capacity | AC-15 | VA | 360 |
| DC-13 | W | 33 |
| Installation | Din rail and screw installation |
