General

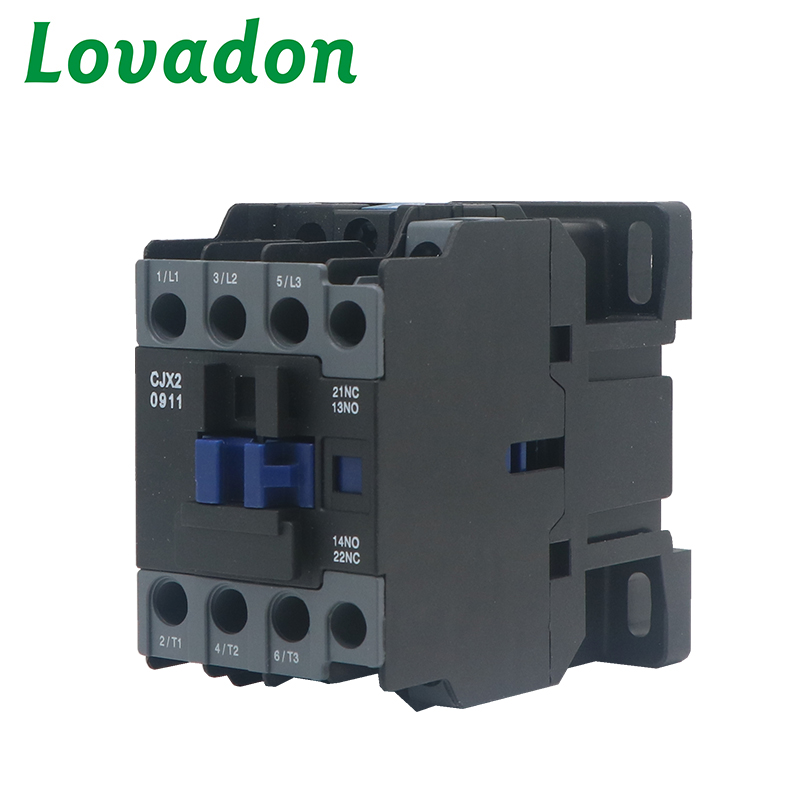

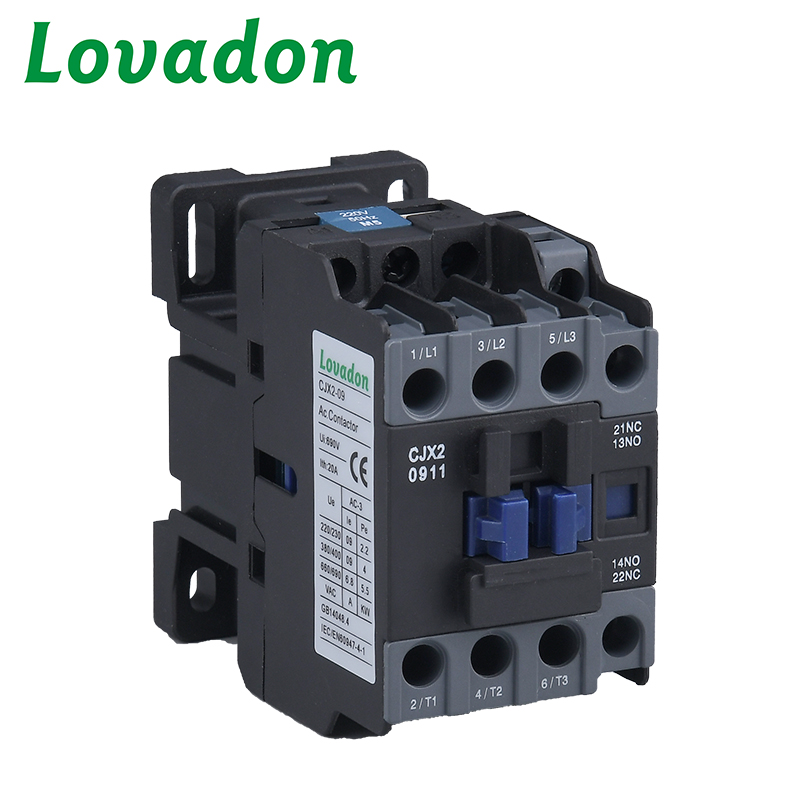

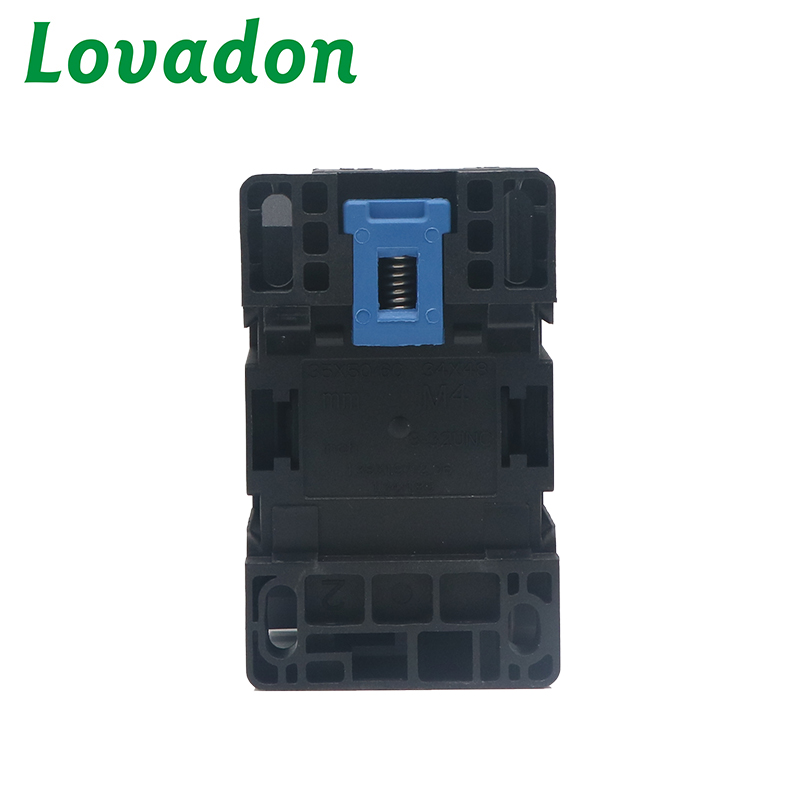

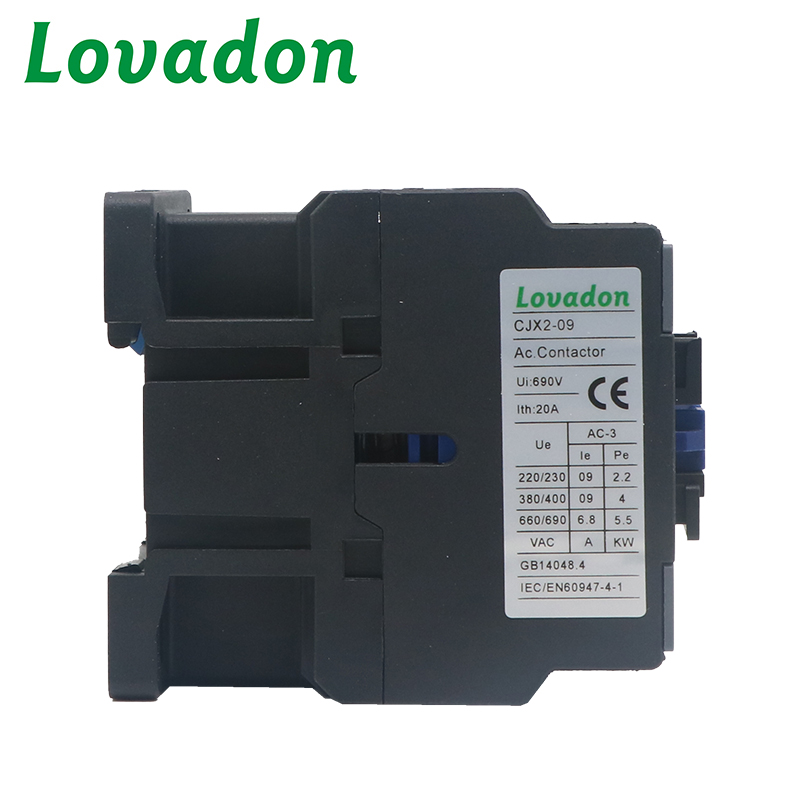

The CJX2 series of contactors, exemplified by the CJX2 0911 model, features a highly humanized design that is both clear and intuitive. This product structure analysis highlights key components, including the control coil contacts A1 and the operating voltage, as well as the auxiliary contact and three sets of main contacts. These contactors are available in complete models with adequate stock, ensuring reliability and availability for your needs. Whether you require consultation or are ready to purchase, our team is here to assist you. Discover the benefits of these contactors for your electrical applications.

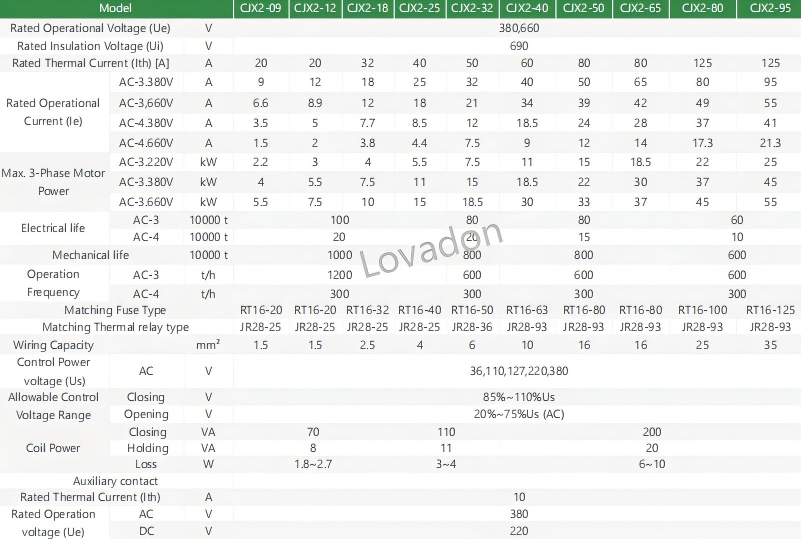

Technical Parameters
| Model Number |
| CJX2-0911 | CJX2-1211 | CJX2-1811 | CJX2-2511 | CJX2-3211 | CJX2-4011 | CJX2-5011 | CJX2-6511 | CJX2-8011 | CJX2-9511 |
| Main circuit characteristics |
|
|
|
|
|
|
|
|
|
|
|
| Pole number | 3Pole |
| Rated insulation voltage (Ui) | V | 690 |
Conventional thermal current (th)
AC-1 rated working current |
| 20 | 20 | 32 | 40 | 50 | 50 | 60 | 80 | 125 | 125 |
Rated working
current (Ie) | AC-3,380/400V | A | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC-3,660/690V | A | 6.6 | 8.9 | 12 | 18 | 22 | 34 | 39 | 42 | 49 | 49 |
| AC-4,380/400V | A | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 |
| AC-4,660/690V | A | 1.5 | 2 | 3.8 | 4.4 | 7.5 | 9 | 12 | 14 | 17.3 | 21.3 |
| AC-3,220/240V | KW | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
Rated working
power(Pe) | AC-3,380/400V | KW | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
| AC-3,415/440V | KW | 4 | 5.5 | 9 | 11 | 15 | 22 | 25/30 | 37 | 45 | 45 |
| AC-3,500V | KW | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 |
| AC-3,660/690V | KW | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 |
| AC-4,380/400V | KW | 1.5 | 2.2 | 3.3 | 4 | 5.4 | 7.5 | 11 | 15 | 18.5 | 22 |
| AC-4,660/690V | KW | 1.1 | 1.5 | 3 | 3.7 | 5.5 | 7.5 | 10 | 11 | 15 | 18.5 |
| Mechanical lif | 10000
times | 1200 | 1000 | 900 | 650 |
| Electrical life | AC-3 | 10000
times | 110 | 90 | 65 |
| AC-4 | 10000
times | 22 | 22 | 17 | 11 |
Operating
frequency | AC-3 | Times/
hour | 1200 | 600 |
| AC-4 | Times/
hour | 300 | 300 |
| Without terminal blocks | 2 wire | mm² | 1...4 | 1.5... | 2.5...10 | 4...25 |
| Tightening torque | N-m |
| 1.2 | 1.8 | 5 | 9 |
| Coil |
|
| 50/60Hz | V | 24、36、48、110、127、220/230、240、380/400、415、440 |
Allow control
circuit voltage(Us) | Working | V | The installation tilt angle is ±22.5° :85%~110%Us； The installation tilt angle is±5°： 70%~120% |
| Release | V | The installation tilt angle is ±22.5° ,20%~75%US；The installation tilt angle is±5°： 20%~65% |
Coil power
consumption | Actuation | VA | 60 | 70 | 200 | 200 |
| Maintain | VA | 6-9.5 | 6-9.5 | 15-20 | 15-20 |
| Consumption | W | 1-3 | 1-3 | 6-10 | 6-10 |
| Auxiliary contact |
|
| Contact specifications |
| A | 11 |
Conventional thermal
current(th) |
| A | 10 |
Rated operational
voltage(Ue) | AC | V | 380 |
| DC | V | 220 |
| Rated control capacity | AC-15 | VA | 360 |
| DC-13 | W | 33 |
| CERTIFICATE | CE |
Yueqing Lovadon Electric Co., Ltd.
