General
Voltage protection relay uses a high-speed and low-power processor as its core. When the power supply line has over-voltage, under-voltage, or phase failure, phase reverse, the relay will cut off the circuit quickly and safely to avoid accidents caused by abnormal voltage being sent to the terminal appliance. When the voltage returns to the normal value, the relay will turn on the circuit automatically to ensure the normal operation of the terminal electrical appliances under unattended conditions.

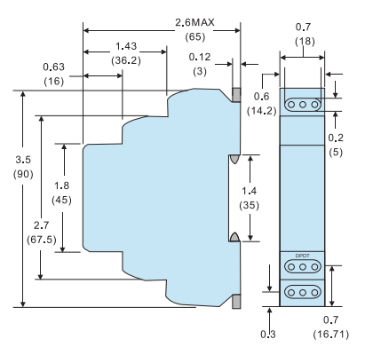

Dimension and wiring diagrams
Wiring diagrams
Over & Under Voltage
Technical Parameters
| Model Number | LX7311 |
| Monitoring Type | Single Phase |
| Output Characteristics | SPDT |
| Over Voltage | 0-20% |
| Under Voltage | 0-20% |
| Time Delay | 0.1 ~ 10S |
| Working Voltage | AC110Vor220V |
| Frequency | 50/60HZ |
| Response Time of Relay | 0.5s |
| Contact Rating | 3A/250VAC COSΦ=1 |
| Ambient Temperature | -10°C~+55°C |
| Voltage Error | ±2% Max |
| Temperature Error | ±2% Max |
