Functions
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)

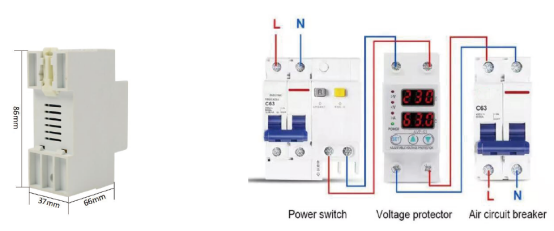

Overall And Mounting Dimensions(mm)
Technical Parameters

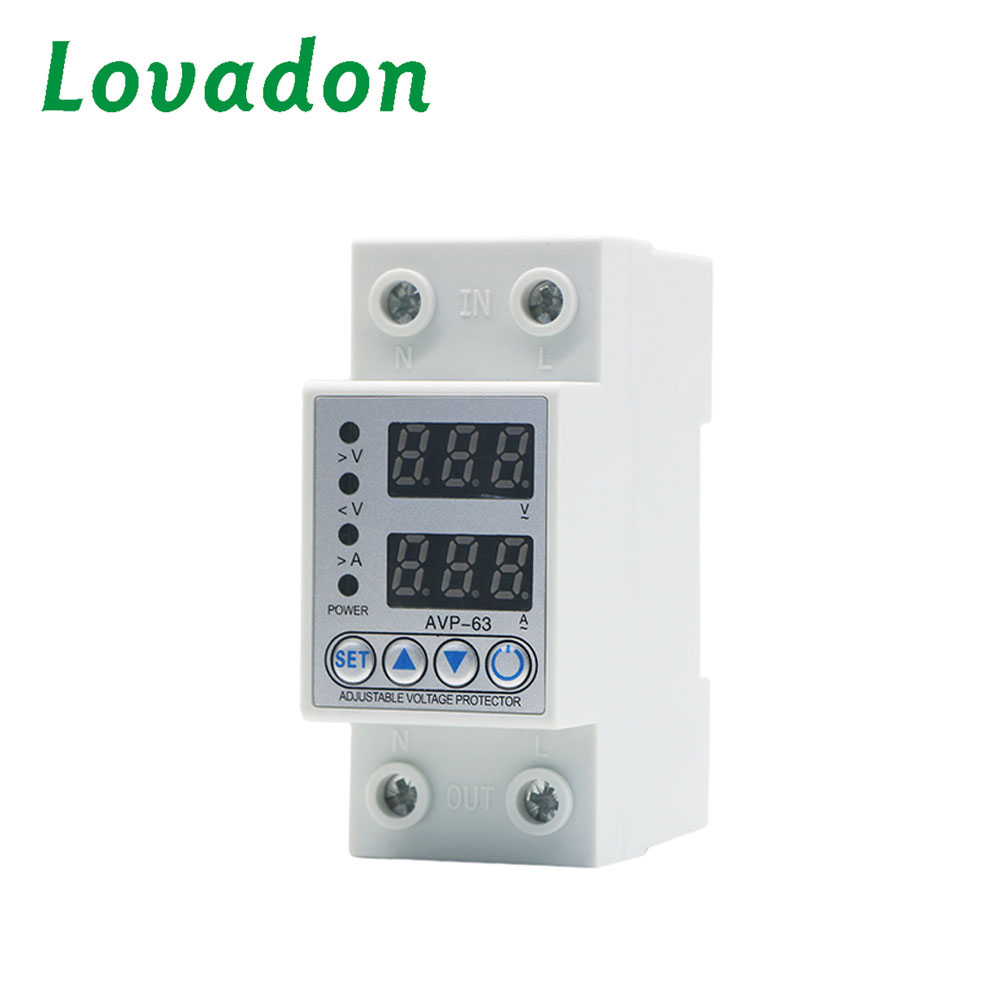

| Type | AVP-63 |
| Rated voltage | AC230V |
| Rated Frequency | 50/60Hz |
| Rated current | 1A-63A adjustable (default 16A) |
| Power recovery delay after power failure | 5s |
| Range of time delay | 1s-400s adjustable(defauIt 30s) |
| Electrical mechanical life | ≥50000 times |
| Overvoltage and undervoltage restore value | 5V |
| Overcuttrent restore value | 1A |
| Rated operation characteristics and operation time | 10A,20A,32A,40A,50A,63A |
| Over-voltage action cut-off value | 200V-120V adjustable (default 160V)
240V-300V adjustable (default 280V) |
| Rated limit overcurrent | 63A |
| Dimension | 86*36*66mm |
| Working environment | Temperature: -25°C~+40°C |
