General

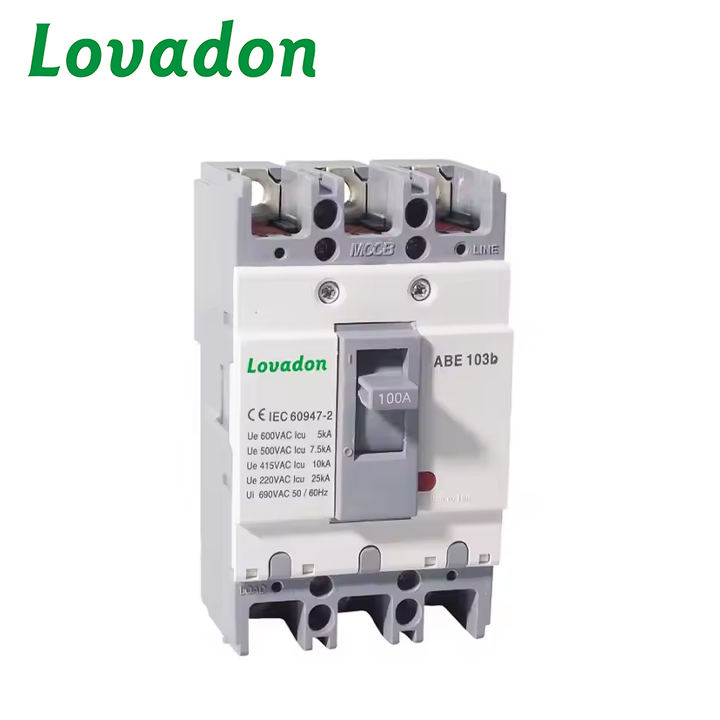

The Moulded Case Circuit Breaker is a versatile and reliable electrical device designed to protect electrical circuits from overloads and short circuits. Available in multiple current ratings such as 15A, 20A, 30A, 40A, 50A, 60A, 75A, and 100A, it caters to various electrical needs. With a rated voltage of 690V and a frequency rating of 50/60 Hz, it is suitable for use in different power systems. Certified to ISO9001 standards, this breaker ensures high quality and performance. Its fire-proof cover made of plastic ensures safety and durability, meeting the IEC60947-2 standard. With a mechanical life of 8500 operations, it provides long-lasting and dependable service in various industrial and commercial applications.
Technical Parameters
| Type | ABE-103b 3P |
| Product name | Moulded Case Circuit Breaker |
| Rated frequency | 50/60 Hz |

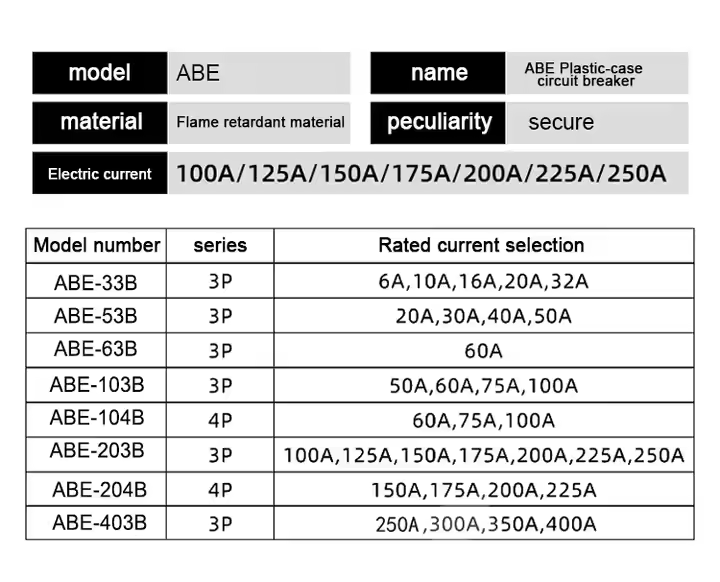

| Rated current | 15,20,30,40 50,60,75,100A |
| Rated operational voltage | 690V |
| Breaking capacity | 25kA |
| Mechanical Life | 8500 Times |
| Cover | Fire Proof |
| Standard | IEC60947-2 |
Yueqing Lovadon Electric Co., Ltd.
