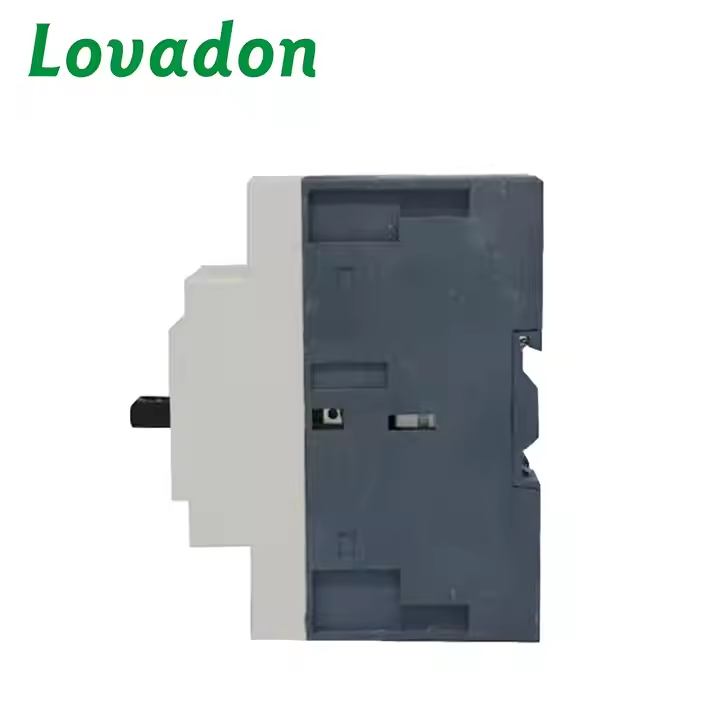

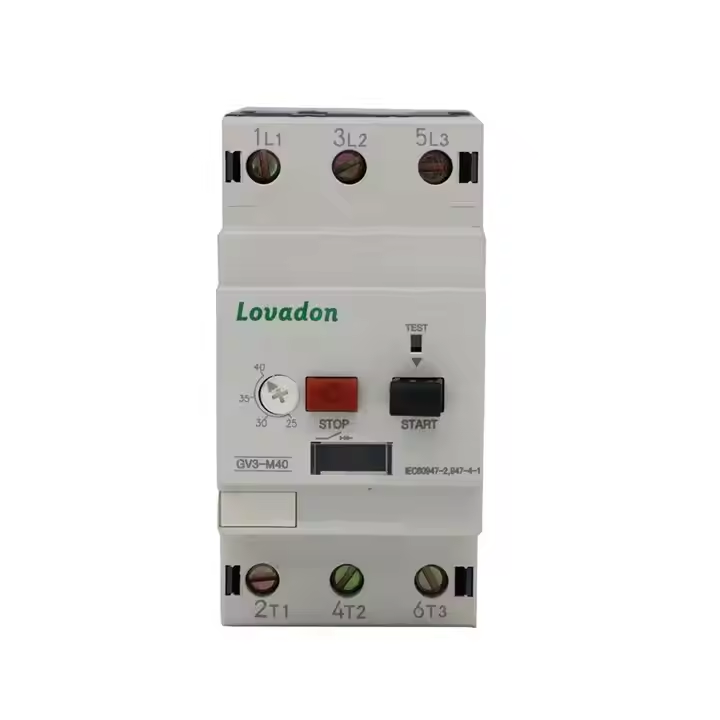

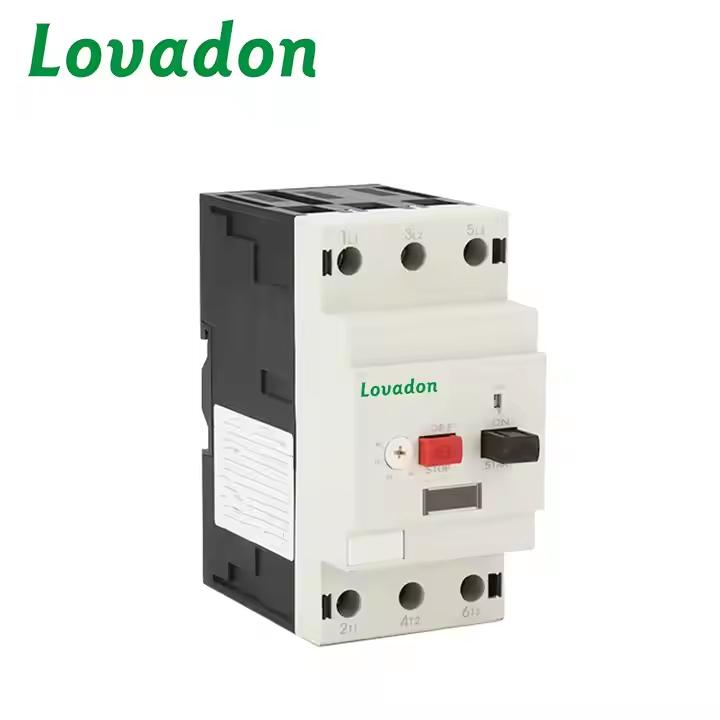

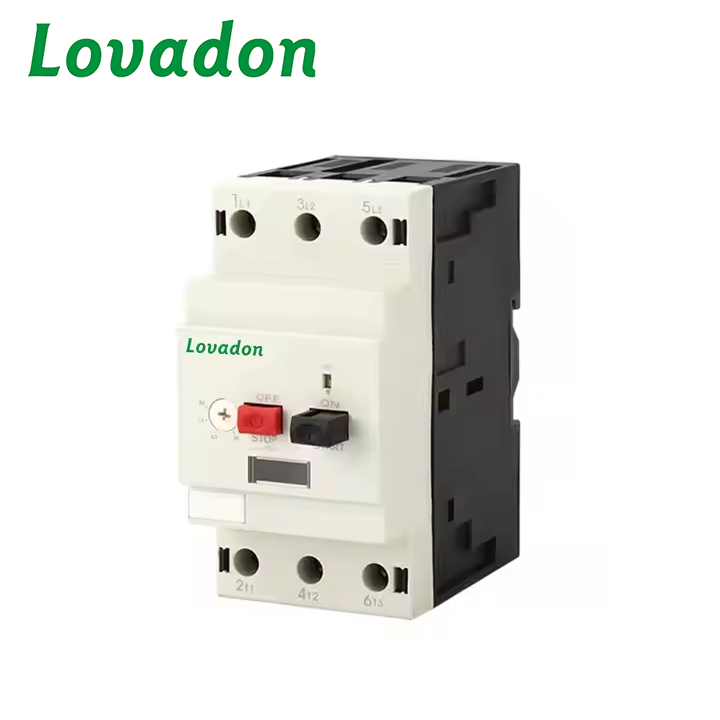

General
GV series motor protection circuit breaker is mainly used for the overload and short circuit protection of the motor in AC 50/60Hz, up to 660V, 0. 1-80 A power circuit , as a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.

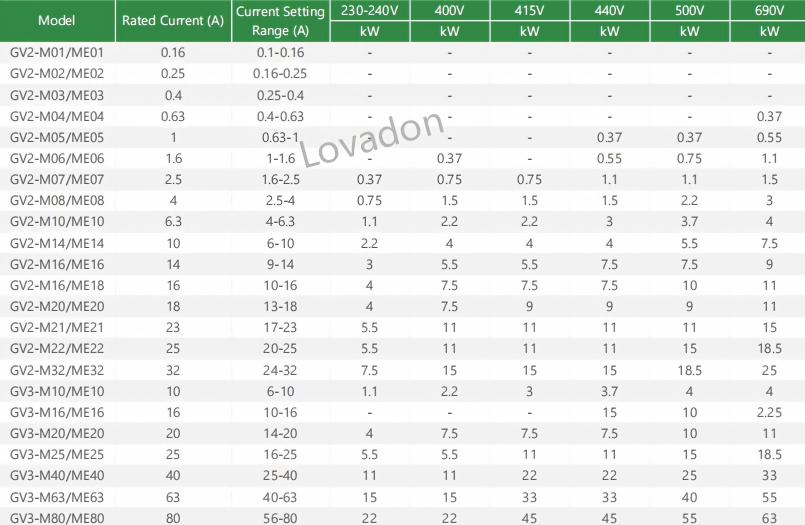

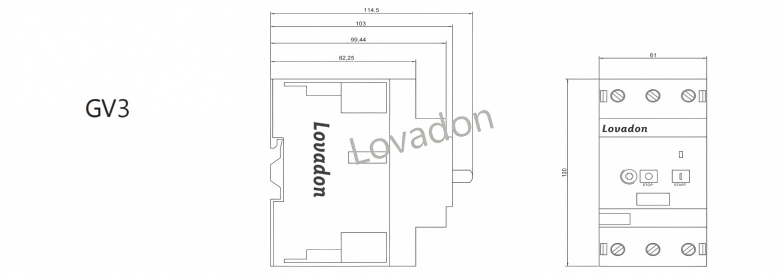

Technical Parameters
| Type | Standard power ratings of 3-phase
motors 50/60Hz in category AC-3 | Current setting range |
|
| 220V | 380V | 415V | 440V | 500V | 660V |
| kW | kW | kW | kW | kW | kW |
| GV2-M01/ME01 | - | - | - | - | - | - | 0.1-0.16 |
| GV2-M02/ME02 | - | - | - | - | - | - | 0.16-0.25 |
| GV2-M03/ME03 | - | - | - | - | - | - | 0.25-0.4 |
| GV2-M04/ME04 | - | - | - | - | - | 0.37 | 0.4-0.63 |
| GV2-M05/ME05 | - | - | - | 0.37 | 0.37 | 0.55 | 0.63-1 |
| GV2-M06/ME06 GV3-M06/ME06 | - | 0.37 | - | 0.55 | 0.75 | 1.1 | 1-1.6 |
| GV3-M07/ME07 | 0.37 | 0.75 | 1.1 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
| GV2-M07/ME07 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
| GV2-M08/ME08 GV3-M08/ME08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4 |
| GV3-M10/ME10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4-6 |
| GV2-M10/ME10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4-6.3 |
| GV2-M14/ME14 GV3-M14/ME14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6-10 |
| GV2-M16/ME16 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 9 | 9-14 |
| GV3-M20/ME20 | 4 | 7.5 | 7.5 | 7.5 | 10 | 11 | 10-16 |
| GV2-M20/ME20 | 4 | 7.5 | 9 | 9 | 9 | 11 | 16-20 |
| GV2-M21/ME21 | 5.5 | 11 | 11 | 11 | 11 | 15 | 17-23 |
| GV2-M22/ME22 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 20-25 |
| GV2-M32/ME32 | 7.5 | 15 | 15 | 15 | 18.5 | 26 | 24-32 |
| GV3-M25/ME25 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 16-25 |
| GV3-M40/ME40 | 11 | 18.5 | 22 | 22 | 25 | 33 | 25-40 |
| GV3-M63/ME63 | 15 | 30 | 33 | 33 | 40 | 55 | 40-63 |
| GV3-M80/ME80 | 22 | 40 | 45 | 45 | 55 | 63 | 56-80 |
