General

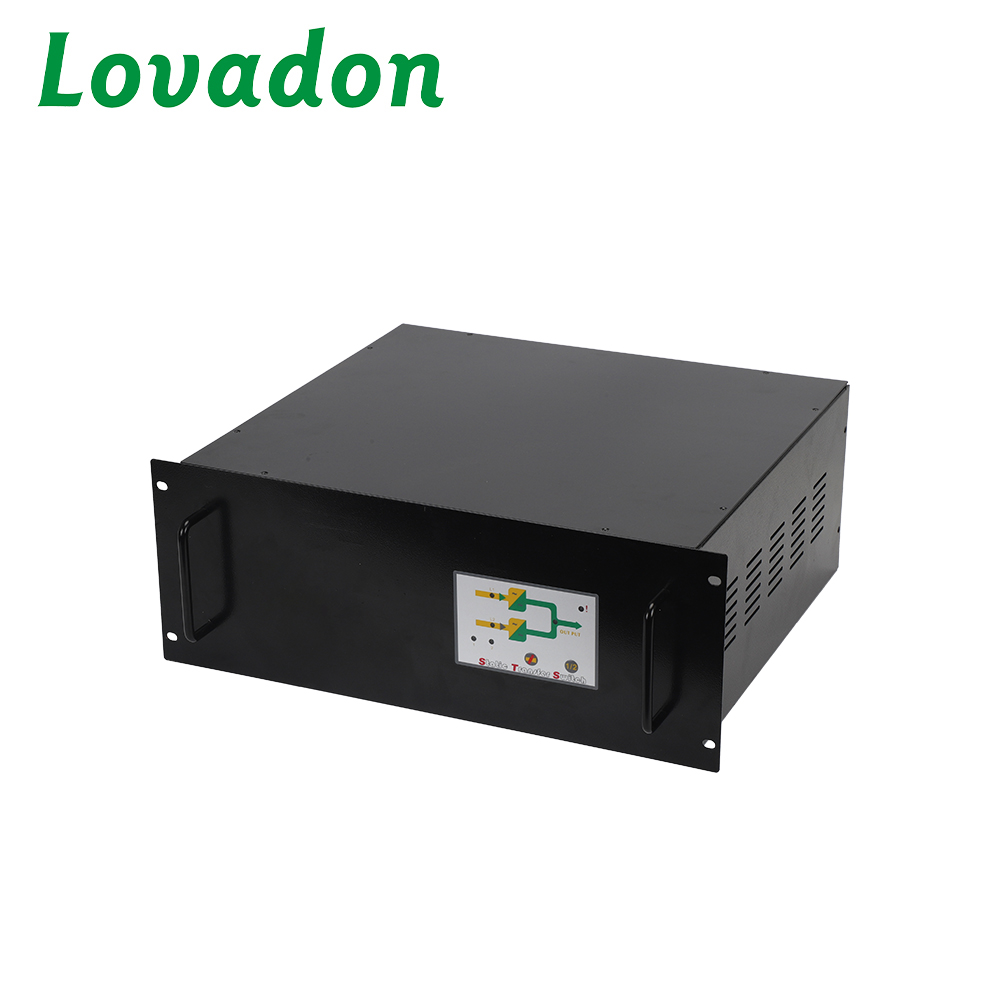

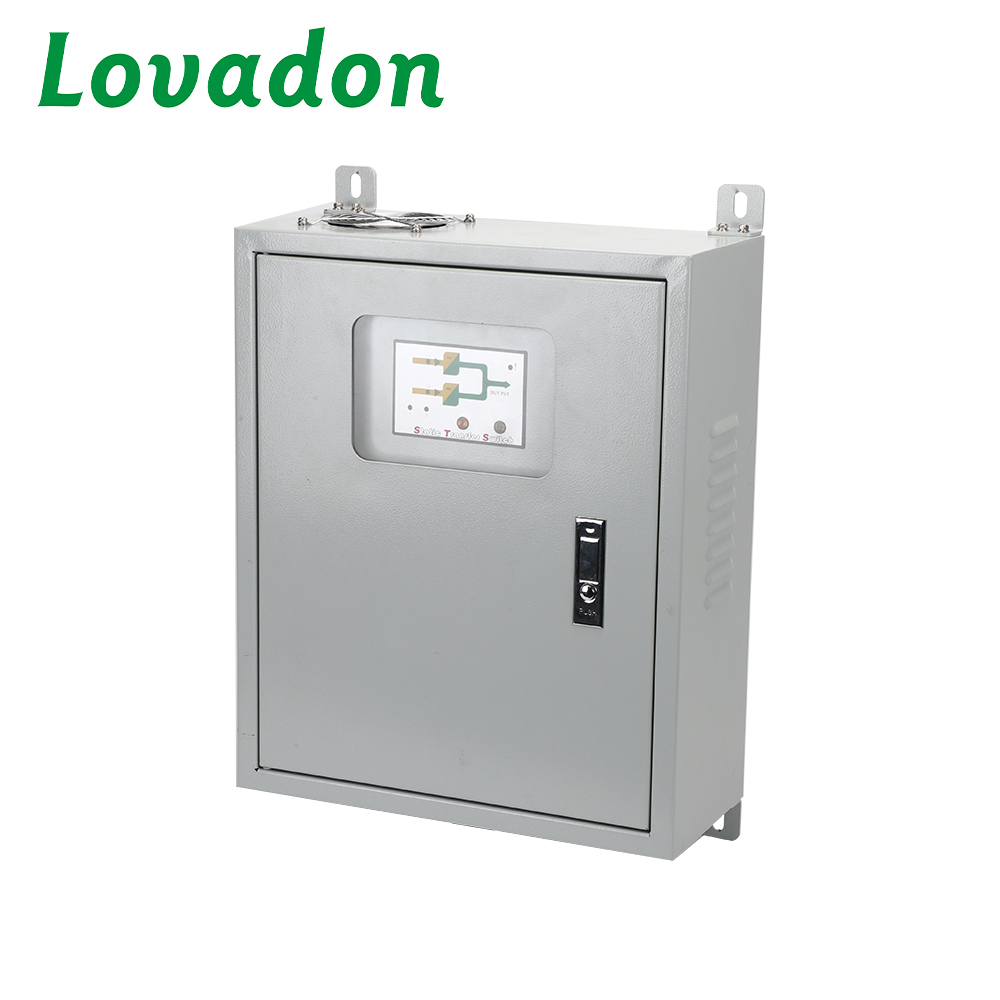

STS Static Transfer Switch (Static Transfer Switch) is a two-source automatic transfer system. Under normal  operating conditions, when the primary power source (MASTER-UPS1) is within the normal voltage range,  the load is always connected to the primary power source. When the primary power source fails, the load  automatically transfers to the backup power source (SLAVE-UPS2). After the primary power source returns to  normal, the load automatically transfers back to the primary power source.

The STS Static Transfer Switch adopts a break-before-make switching method, enabling uninterrupted  transfer between different input power sources and providing dual-bus power supply for single-power loads,  such as:

n+1 redundancy for non-parallel UPS systems

n+1 redundancy for UPS systems of different capacities

n+1 redundancy for UPS systems of different models

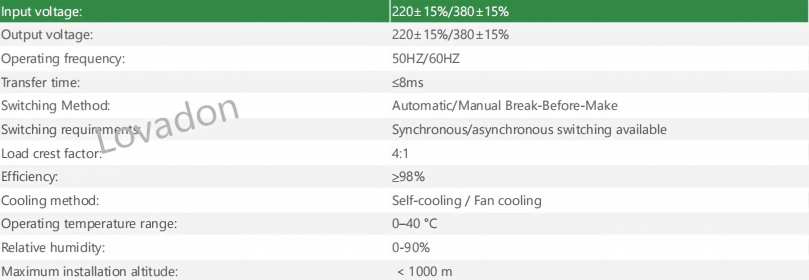

Technical Parameters
